SiE33-102

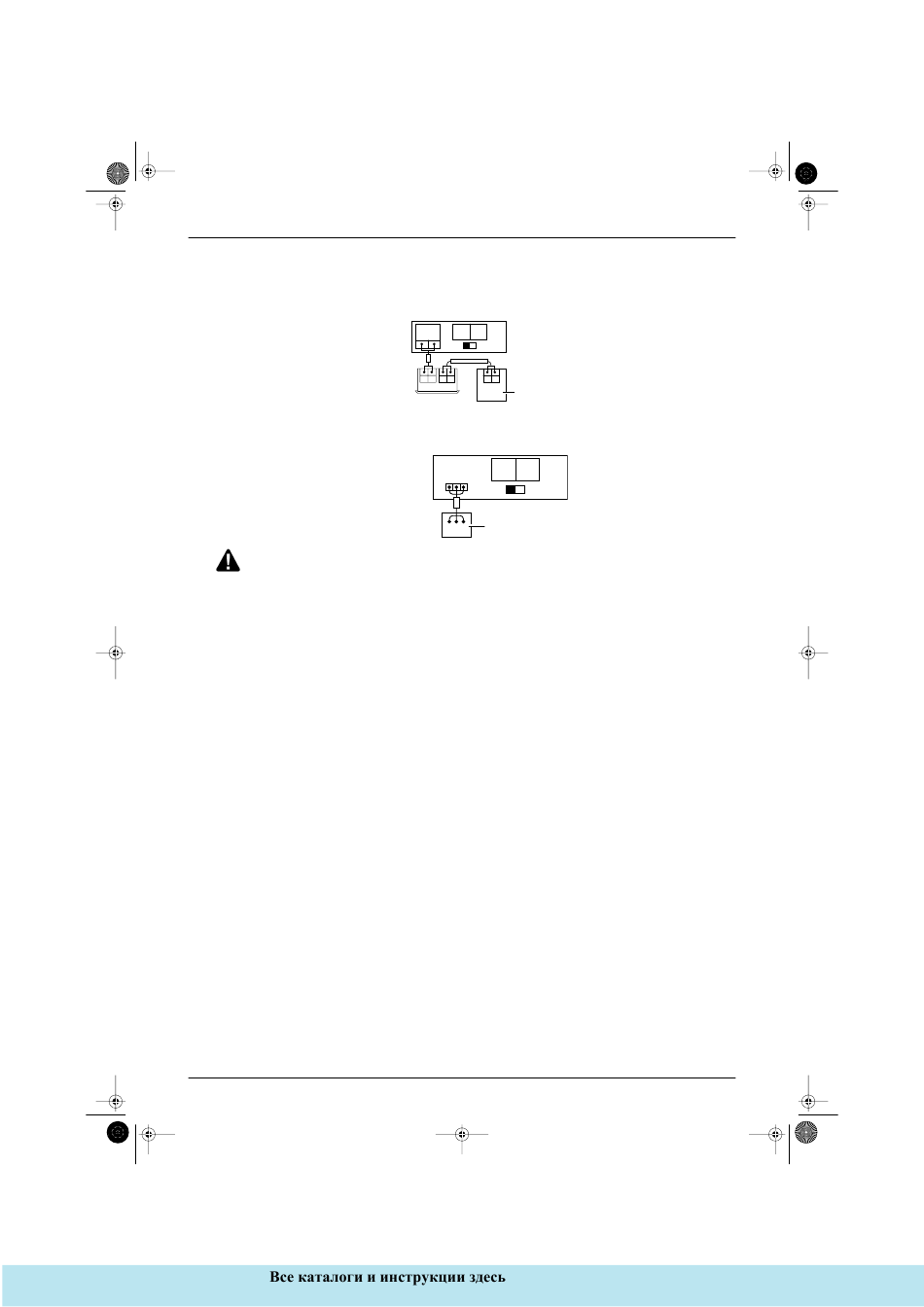

7.6.8 Setting the Cool/Heat Operation
1. Performing cool/heat setting with the remote control connected to the indoor unit.
Keep the cool/heat selector switch (SS1) on the outdoor unit PC board (A1P) at the factory setting
position IN/D UNIT.
2. Performing cool/heat setting with the cool/heat selector.
Connect the cool/heat selector remote control (optional) to the A/B/C terminals and set the cool/heat
selector switch (SS1) on the outdoor unit PC board (A1P) to OUT/D UNIT.
Caution For low-noise operation, it is necessary to get the optional "External control adaptor for outdoor unit".
For details, see the installation manual attached to the adaptor or service manual Si33-101.
Installation Manual
TO IN/D
IN/D OUT/D
SS1
UNIT
UNIT UNIT
F1 F2
C/H
SELECT
F1 F2 F1 F2 F1 F2
Remote control
IN/D OUT/D
SS1
UNIT UNIT
A B C
C/H
SELECT
Cool/Heat selector
A B C
(V1864)
: http://splitoff.ru/tehn-doc.html
Field Wiring
(V1863)
161
