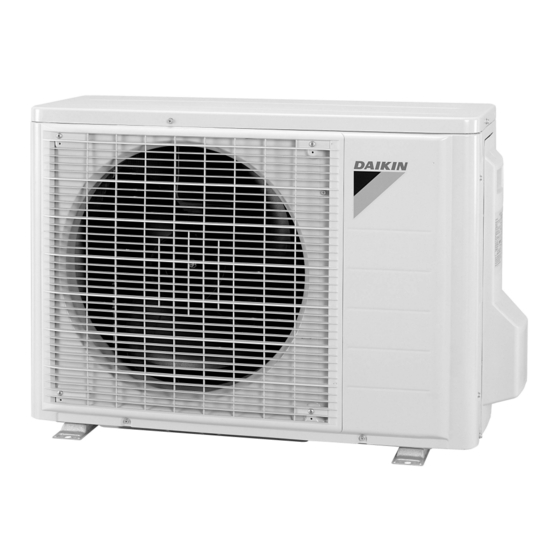

Daikin R25GV1G Service Manual

Daikin R25GV1G Service Manual

Removal procedure 2.5/3.5 kw class, outdoor unit, non-inverter, pair type, cooling only

Advertisement

Quick Links

Si01-879
REMOVAL
PROCEDURE
S E R V I C E
M A N U A L
2.5/3.5 kW Class
Outdoor Unit
Non-Inverter
Pair Type

Advertisement

loading
Need help?

Need help?

Do you have a question about the R25GV1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daikin R25GV1G

  • Page 1 Si01-879 REMOVAL PROCEDURE S E R V I C E M A N U A L 2.5/3.5 kW Class Outdoor Unit Non-Inverter Pair Type...
  • Page 2 Service Manual Removal Procedure Outdoor Unit Cooling Only R25GV1G R35GV1G...
  • Page 3 Si01-879 Table of Contents 1. Removal of Outer Panels / Fan Motor.............2 2. Removal of Electrical Components ASSY ..........8 3. Removal of Sound Blanket..............9 4. Removal of Compressor ...............10 Note: The illustrations may be slightly different depending on the model. Removal Procedure...
  • Page 4: Removal Of Outer Panels / Fan Motor

    Removal of Outer Panels / Fan Motor Si01-879 1. Removal of Outer Panels / Fan Motor Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. External appearance (R7186) Take care not to cut your finger by the fins of the...
  • Page 5 Si01-879 Removal of Outer Panels / Fan Motor Step Procedure Points Remove the 3 screws Top panel and remove the top panel. (R8290) Remove the 4 screws and remove the discharge grille. (R8291) The discharge grille has 4 hooks. (R8292) Remove the 8 screws and remove the front panel.
  • Page 6 Removal of Outer Panels / Fan Motor Si01-879 Step Procedure Points Unfasten the hooks. The front panel has 4 hooks. Pull and remove the front panel. Hook (R8295) 3. Remove the fan motor. Nut size: M6 Remove the nut of the outdoor fan.
  • Page 7 Si01-879 Removal of Outer Panels / Fan Motor Step Procedure Points Release the fan motor Put the fan motor lead wire lead wire from the through the back of the fan hooks. motor when reassembling so as not to be entangled with the outdoor fan.
  • Page 8 Removal of Outer Panels / Fan Motor Si01-879 Step Procedure Points (R7205) When reassembling, fit the lower hooks into the bottom frame. (R7206) 4. Remove the right side Guard net panel. Lift up and remove the guard net. (R8284) Remove the 2 screws on the rear side.
  • Page 9 Si01-879 Removal of Outer Panels / Fan Motor Step Procedure Points Remove the 4 screws on the right side. Right side panel (R7210) Remove the screw near the connection port. (R6721) Unfasten the hook. When reassembling, make sure to fit the hook. (R6722) Lift up the right side panel and remove it.
  • Page 10: Removal Of Electrical Components Assy

    Removal of Electrical Components ASSY Si01-879 2. Removal of Electrical Components ASSY Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the nut and Preparation remove the terminal Remove the outer panels cover.
  • Page 11: Removal Of Sound Blanket

    Si01-879 Removal of Sound Blanket 3. Removal of Sound Blanket Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Untie the strings and Preparation open the sound blanket. Remove the outer panels according to the “Removal of Outer Panels / Fan Motor”.
  • Page 12: Removal Of Compressor

    Removal of Compressor Si01-879 4. Removal of Compressor Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the 3 nuts of the compressor. Warning Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
  • Page 13 Si01-879 Removal of Compressor Step Procedure Points Lift the compressor up Note: and remove it. Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit. When withdrawing the pipes, be careful not to pinch them firmly with pliers.
  • Page 14 Revision History Month / Year Version Revised contents 06 / 2013 Si01-879 First edition...
  • Page 15 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
