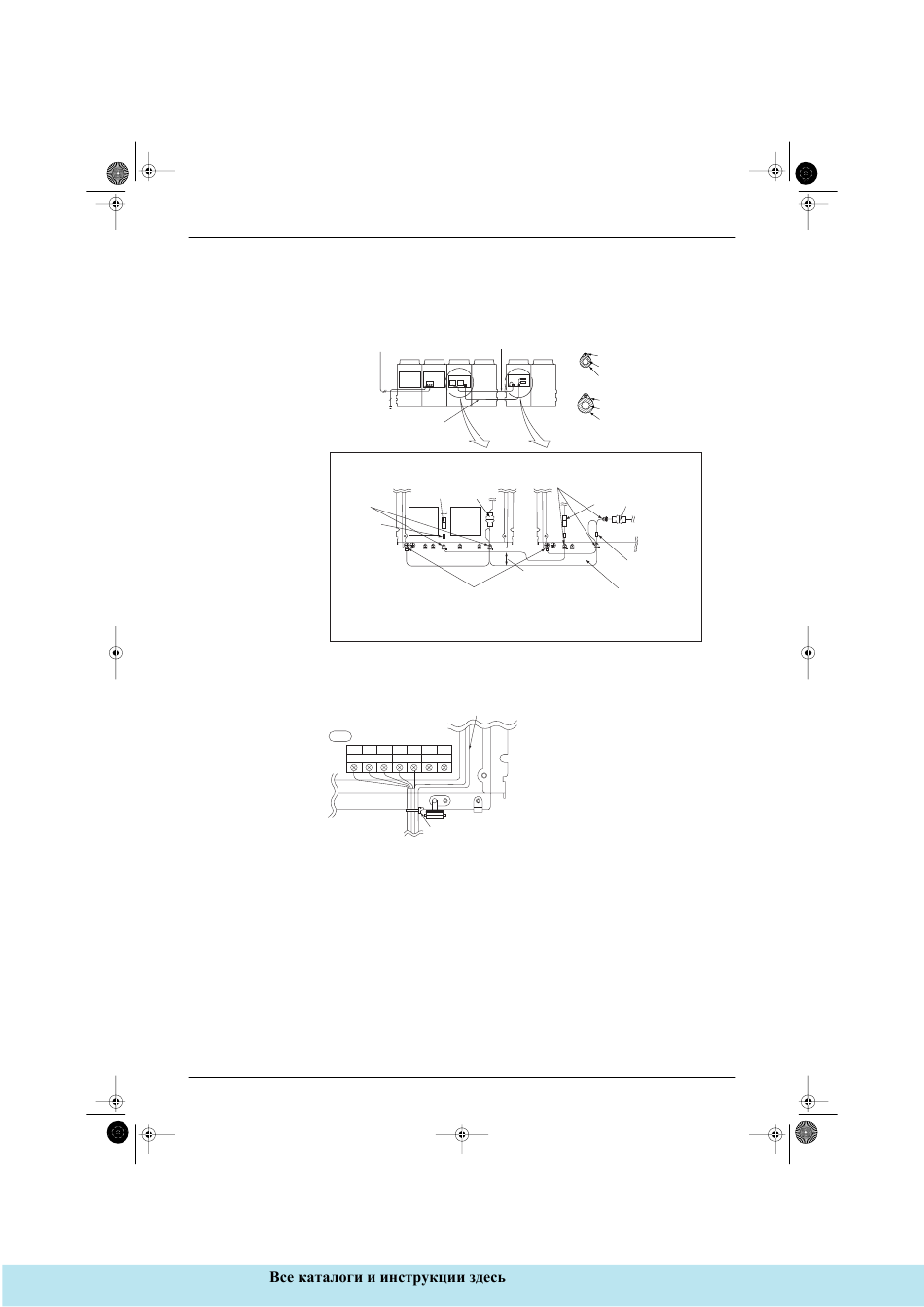

7.6.4 Field Line Connection : Transmission Wiring and Cool/Heat Selection
RXY 8,10,16,20
Switch box (Main unit)
A1P
Installation Manual
RXY16,20 (Main unit) RXE 8,10 (Sub unit)
Branch wiring between outdoor
units (Low voltage)
Power supply
Branch wiring between
outdoor units
(High voltage)
RXY (Main unit)
Switch Box
CN-19 CN-1
Fix to safety
catch
A3P A4P
Connector
Connect the ground wire (green/yellow)
to the ground terminal extended wiring
(7000 mm or less)
(Sheathed cable or 0.75mm 2 cables)
Attached cable
(between main and sub units)
X2M
A B C F1 F2 F1 F2
Fix to the safety catch using the
attached clamp material
: http://splitoff.ru/tehn-doc.html
Field Wiring
Cable(Low voltage)
Liquid line
Insulation material
Cable (High voltage)
Gas line
Insulation material
Fix to RXE (Sub-unit)
safety Switch box
catch
CN-19 CN-1
Connector
30mm or more
Always separete the high
voltage wiring from the low
voltage wiring in the branch
wiring
(V1858)
(V1859)
