AT Command Set

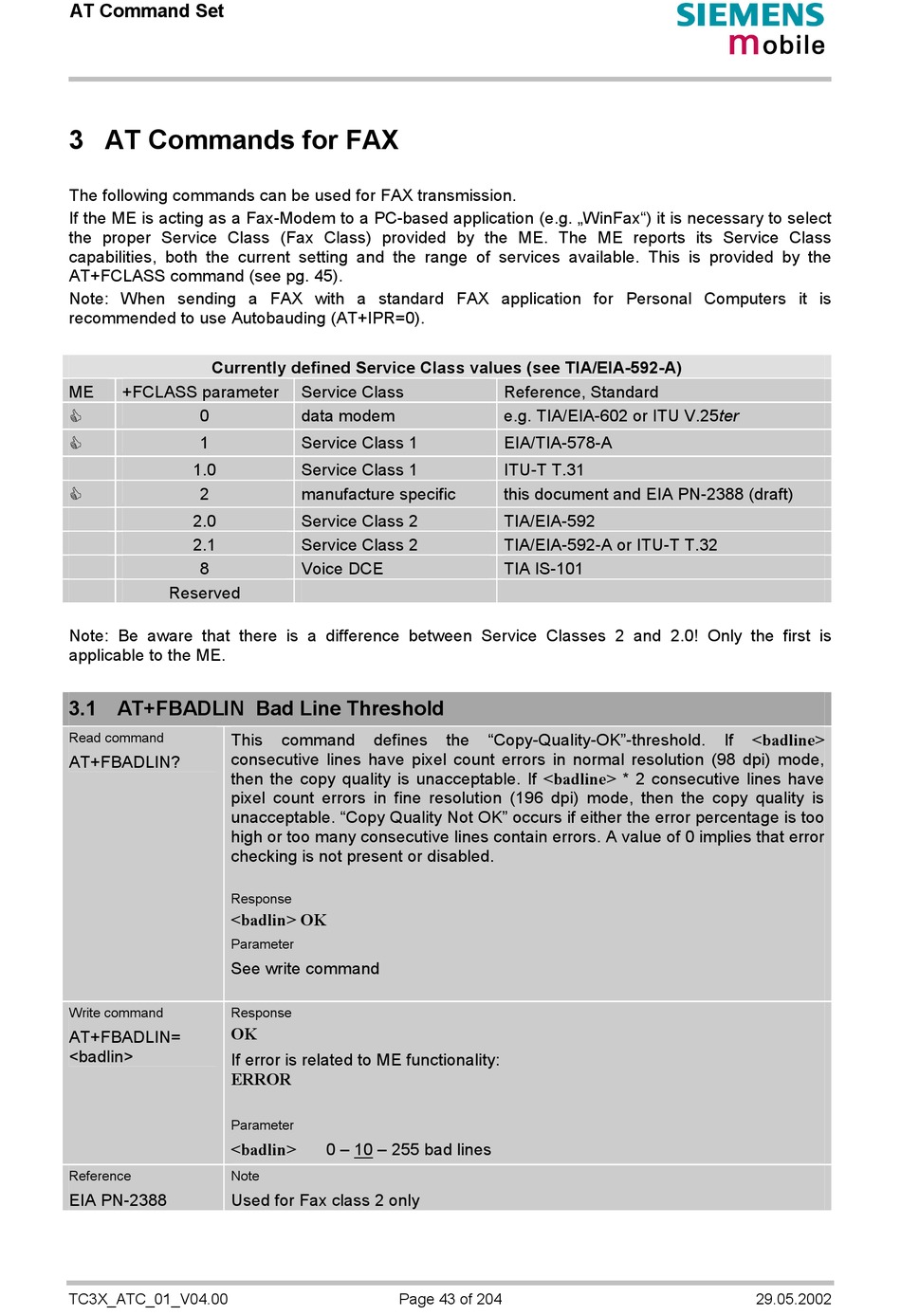

3 AT Commands for FAX

The following commands can be used for FAX transmission.
If the ME is acting as a Fax-Modem to a PC-based application (e.g. „WinFax") it is necessary to select
the proper Service Class (Fax Class) provided by the ME. The ME reports its Service Class
capabilities, both the current setting and the range of services available. This is provided by the
AT+FCLASS command (see pg. 45).
Note: When sending a FAX with a standard FAX application for Personal Computers it is
recommended to use Autobauding (AT+IPR=0).
Currently defined Service Class values (see TIA/EIA-592-A)
ME +FCLASS parameter
C
0
C
1
1.0
C
2
2.0
2.1
8
Reserved
Note: Be aware that there is a difference between Service Classes 2 and 2.0! Only the first is
applicable to the ME.

3.1 AT+FBADLIN Bad Line Threshold

Read command
This
consecutive lines have pixel count errors in normal resolution (98 dpi) mode,
AT+FBADLIN?
then the copy quality is unacceptable. If <badline> * 2 consecutive lines have
pixel count errors in fine resolution (196 dpi) mode, then the copy quality is
unacceptable. "Copy Quality Not OK" occurs if either the error percentage is too
high or too many consecutive lines contain errors. A value of 0 implies that error
checking is not present or disabled.
Response
<badlin> OK
Parameter
See write command
Write command Response
OK
AT+FBADLIN=
<badlin>
If error is related to ME functionality:
ERROR
Parameter
<badlin>
Reference Note
EIA PN-2388 Used for Fax class 2 only
TC3X_ATC_01_V04.00
Service Class
data modem
Service Class 1
Service Class 1
manufacture specific
Service Class 2
Service Class 2
Voice DCE
command defines the
0 – 10 – 255 bad lines
Page 43 of 204
Reference, Standard
e.g. TIA/EIA-602 or ITU V.25ter
EIA/TIA-578-A
ITU-T T.31
this document and EIA PN-2388 (draft)
TIA/EIA-592
TIA/EIA-592-A or ITU-T T.32
TIA IS-101
"Copy-Quality-OK"-threshold. If <badline>
29.05.2002
