BIOS

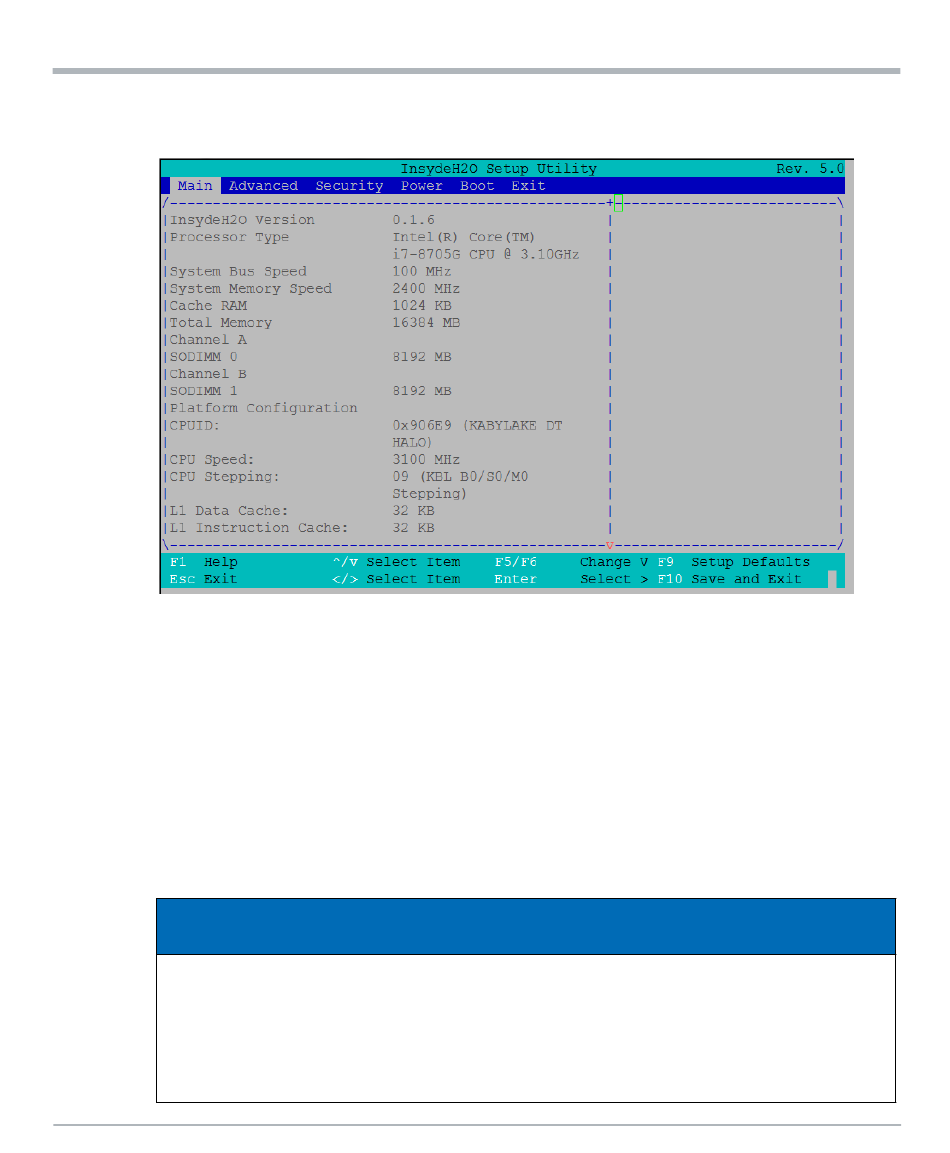

Figure 5-1 BIOS Setup Screen

Select Save and Exit after making a selection in the setup menus. This procedure stores
the selections displayed in the menus in CMOS. At the time of next boot up, BIOS
configures the system according to the setup selection stored in CMOS.
NOTE: CMOS is a generic term, which is used to refer to the storage device that stores
BIOS configuration data.
For more details, refer to the section
To navigate setup, use the arrow keys on the keyboard to highlight items on the menu. All
other navigation possibilities are shown at the bottom of the menu. Additionally, item-
specific help is displayed on the right hand side of the menu window. It displays the help
text for the currently selected field.
Make sure that BIOS is properly configured prior to installing the operating system
and its drivers.
If any changes are saved in the setup, the next time when the card boots, BIOS
configures the system according to the setup selections stored. If those values
cause the system boot to fail, reboot and enter setup to get the default values or to
change the selections that caused the failure.
78
Exit Menu on page 91.
NOTICE
PCIE-7217 Installation and Use (6806873A01B)
BIOS
