Introduction
1.2

Hardware Description

The PCIE-7217 card is an Intel
provides two independent CPU complexes. Each CPU complex is connected to the
MaxCore fabric using two 3rd generation PCI Express x4 ports (32Gbps/port) through the
PCIe standard card edge. A second card edge that is specific to MaxCore is used to provide
power and additional I/O connections.

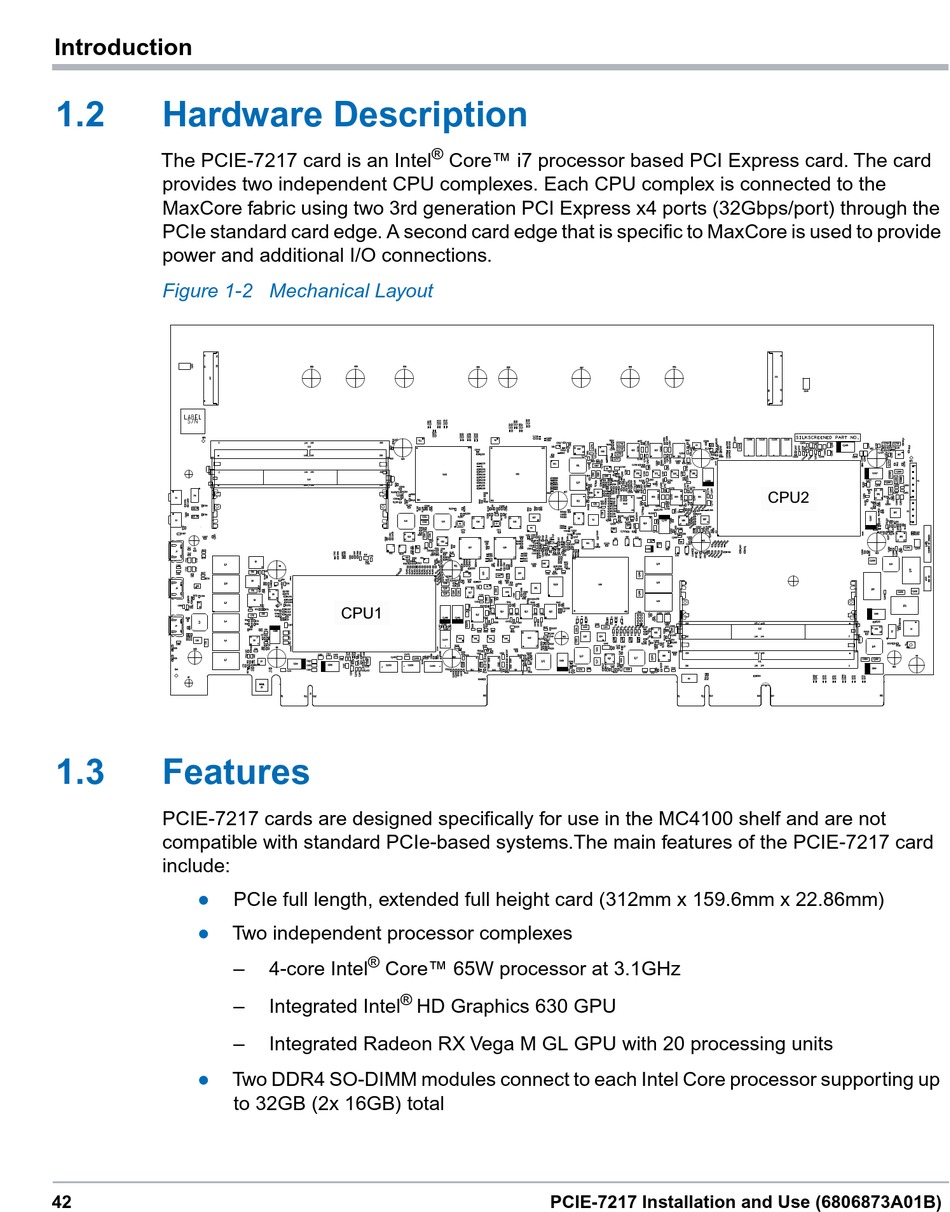

Figure 1-2 Mechanical Layout

1.3

Features

PCIE-7217 cards are designed specifically for use in the MC4100 shelf and are not
compatible with standard PCIe-based systems.The main features of the PCIE-7217 card
include:
 PCIe full length, extended full height card (312mm x 159.6mm x 22.86mm)
 Two independent processor complexes
–
–
–
 Two DDR4 SO-DIMM modules connect to each Intel Core processor supporting up
to 32GB (2x 16GB) total
42
®
Core™ i7 processor based PCI Express card. The card
CPU1
®
4-core Intel Core™ 65W processor at 3.1GHz
®
Integrated Intel HD Graphics 630 GPU
Integrated Radeon RX Vega M GL GPU with 20 processing units
PCIE-7217 Installation and Use (6806873A01B)
Introduction
CPU2
