Controls, Indicators, and Connectors
4.3.5

Backplane Ethernet Communication Status/Activity LEDs

The following figure show the locations of the backplane Ethernet communication
status/activity LEDs for CPU1 and CPU2.

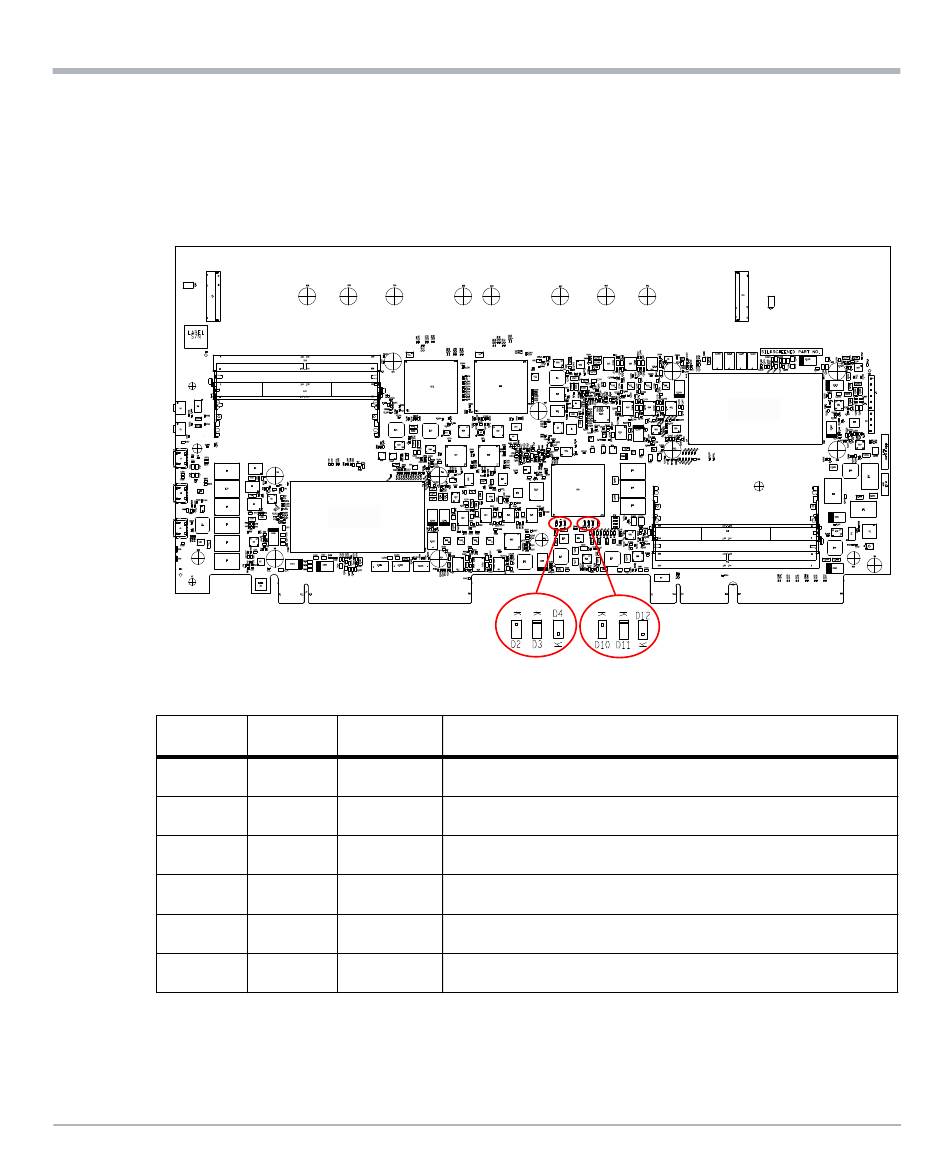

Figure 4-7 Location of Backplane Ethernet Communication Status LEDs

Table 4-8
CPU
1
1
1
2
2
2
74
CPU1
Backplane Ethernet Communication LEDs
Label
Color
D2
Green
D4
Green
D3
Amber
D10
Green
D12
Green
D11
Amber
CPU1
CPU2
Status Description
Link Up/Activity
Link 1000
Link 100
Link Up/Activity
Link 1000
Link 100
PCIE-7217 Installation and Use (6806873A01B)
Controls, Indicators, and Connectors
CPU2
