3.9

Trusted Platform Module

A Trusted Platform Module (TPM) 1.2 compliant device is provided for each CPU on the
PCIE-7217.
3.10

Power

A 12V power supply is provided to the card through two PCIe gold finger edge connectors
(edge connector 1 and edge connector 2). There is a voltage and current monitor circuit on
the 12V bus to PCH1. This is used to measure the power consumed by card.
Edge connector 1 provides 3.3V supply to the CPLD and edge connector 2 provides 3.0V
RTC power to the PCH1 and PCH2.

3.11 Temperature Sensors

There are several temperature sensors on the PCIE-7217 card. Two SPD memory
temperature sensor devices are each located in different areas, refer to
57. In addition, each SPD device has a temperature sensor.The SPD temperature sensor
can be used to measure the surrounding air temperature to the card corners. There are also
temperature sensors built into each SO-DIMM modules.

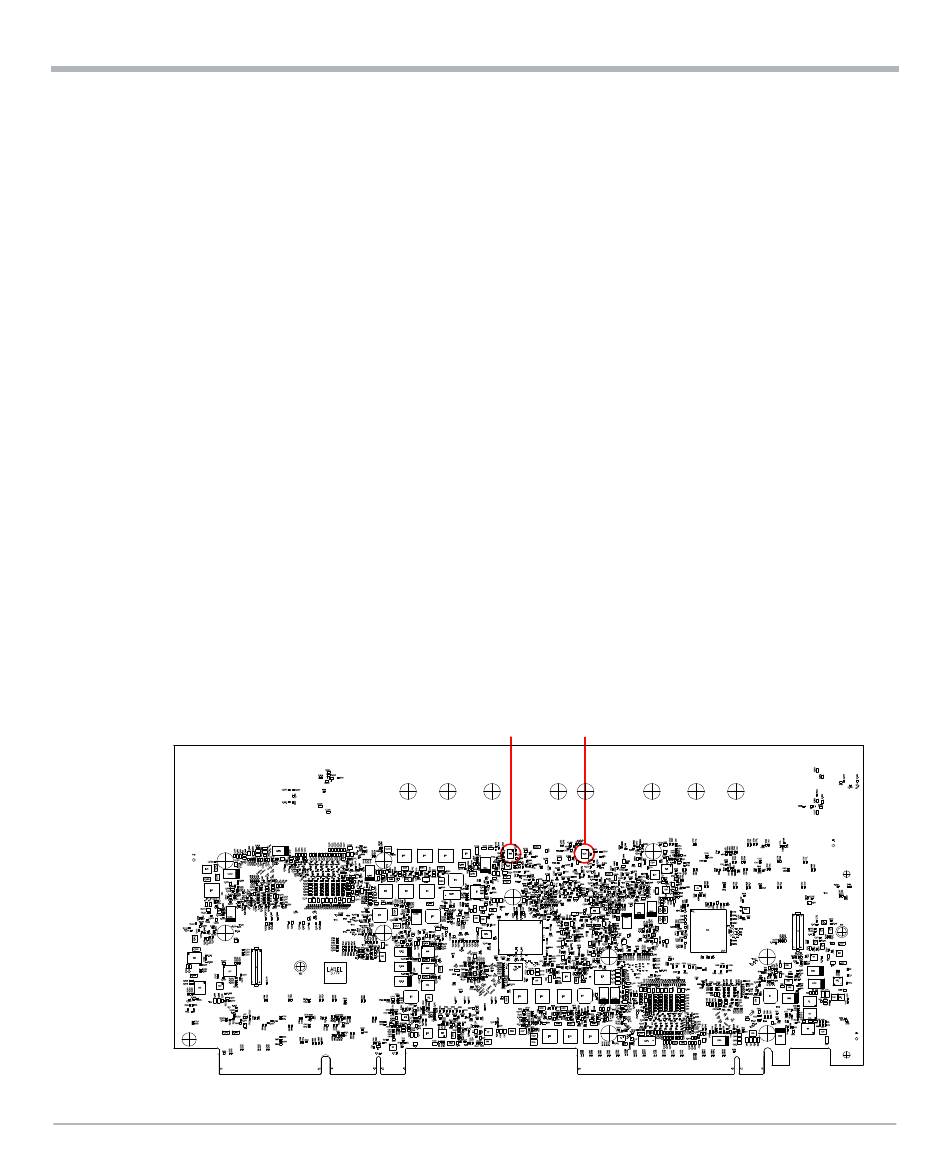

The following figure shows the location of the temperature sensors on the back of the card.

Figure 3-2 Location of Temperature Sensors

PCIE-7217 Installation and Use (6806873A01B)
Temperature Sensors
U66 (CPU2)
U102 (CPU1)
Functional Description
Figure 3-2 on page
57
