4.4

Controls

There are two reset buttons available on the face plate of the PCIE-7217 card used to reset
PCH1 and PCH2.
 Button S4 resets PCH1

Button S3 resets PCH2
The following figure shows the location of the reset buttons (S3 and S4) and the switch
(S1).

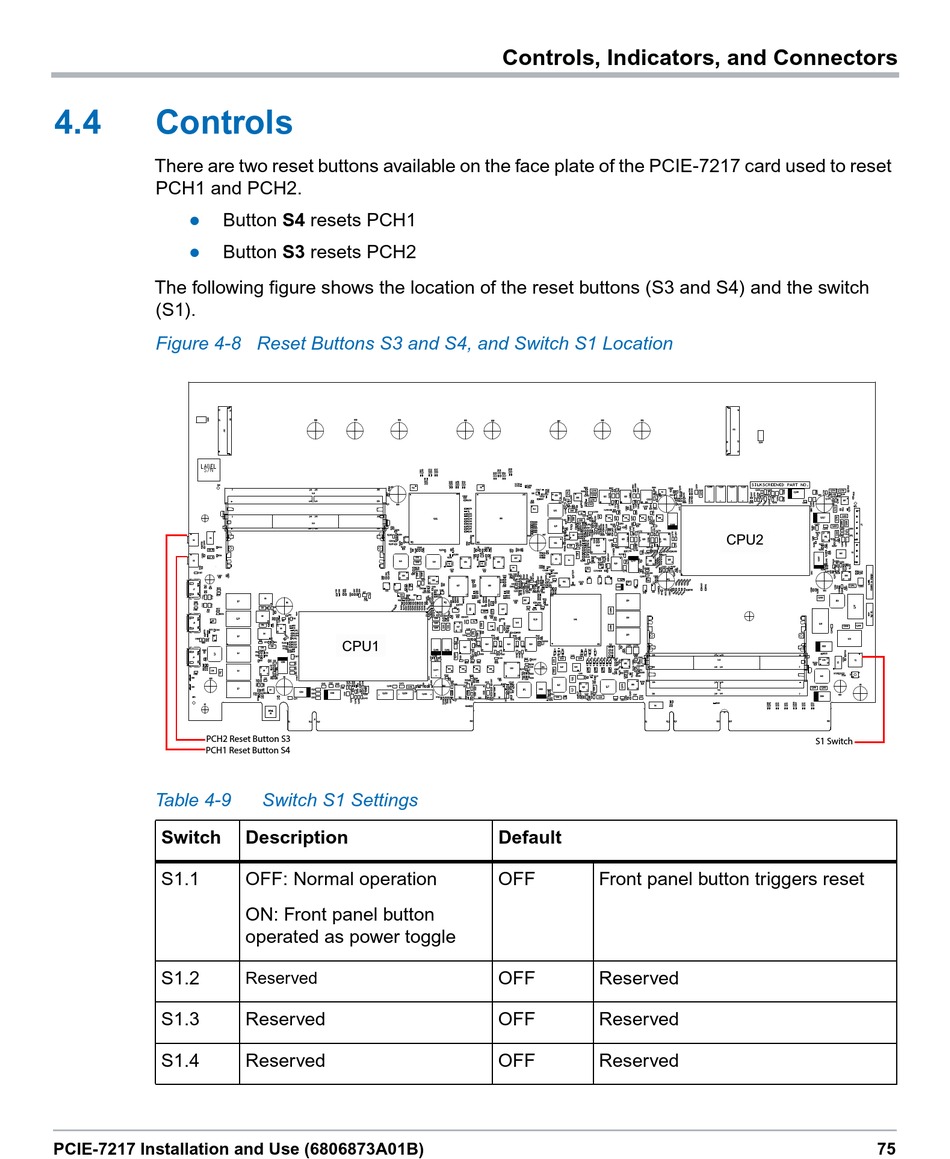

Figure 4-8 Reset Buttons S3 and S4, and Switch S1 Location

PCH2 Reset Button S3
PCH1 Reset Button S4
Table 4-9
Switch
S1.1
S1.2
S1.3
S1.4
PCIE-7217 Installation and Use (6806873A01B)
CPU1
Switch S1 Settings
Description
OFF: Normal operation
ON: Front panel button
operated as power toggle
Reserved
Reserved
Reserved
Controls, Indicators, and Connectors
Default
OFF Front panel button triggers reset
OFF Reserved
OFF Reserved
OFF Reserved
