Controls, Indicators, and Connectors
4.3.3 M.2 SSD Activity LEDs
The following figure shows the M.2 SSD activity LEDs for CPU1 (D8) and CPU2 (D7).

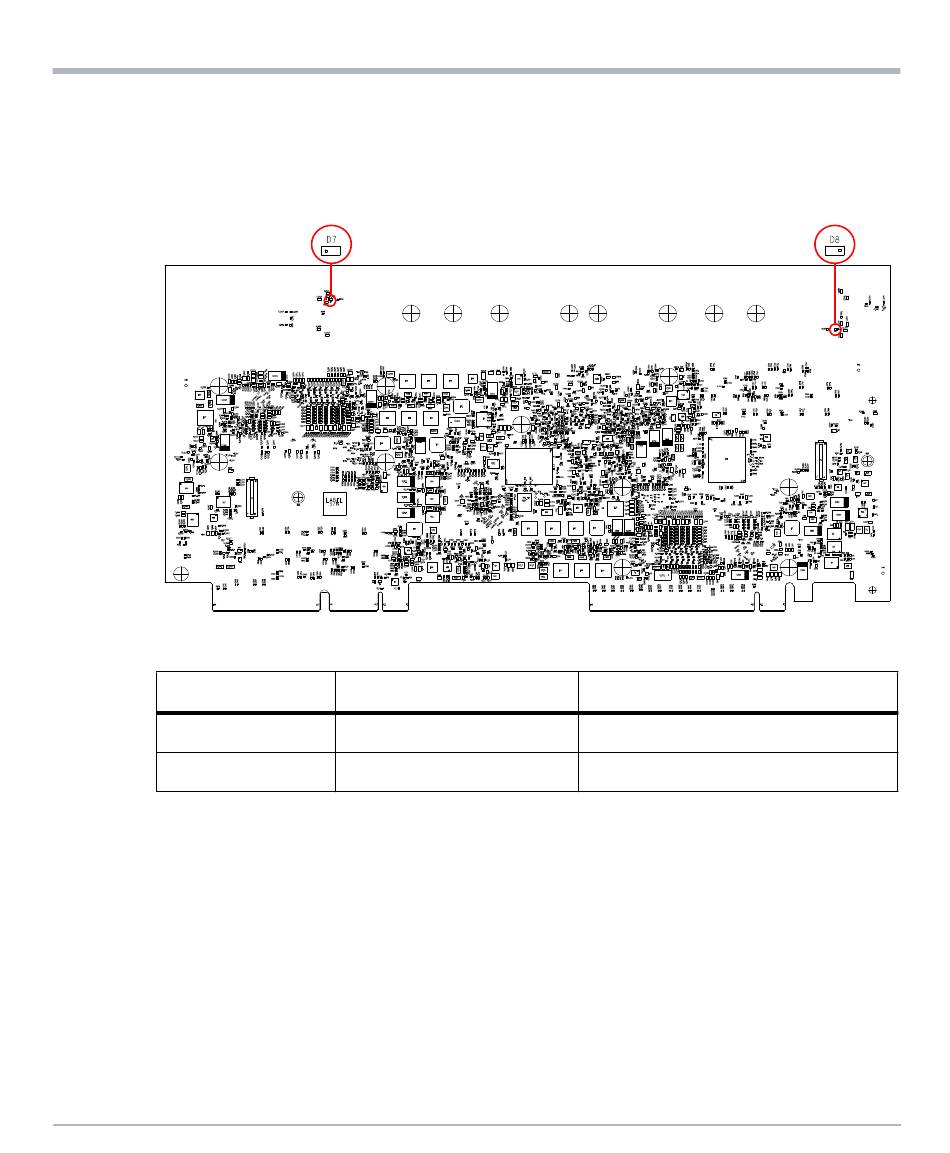

Figure 4-5 Location of M.2 SSD Activity LEDs (D7 and D8)

Table 4-6
Label
D8
D7
72
M.2 SSD Activity LEDs
Color
Green
Green
Controls, Indicators, and Connectors
Status Description
CPU1 M.2 SSD activity
CPU2 M.2 SSD activity
PCIE-7217 Installation and Use (6806873A01B)
