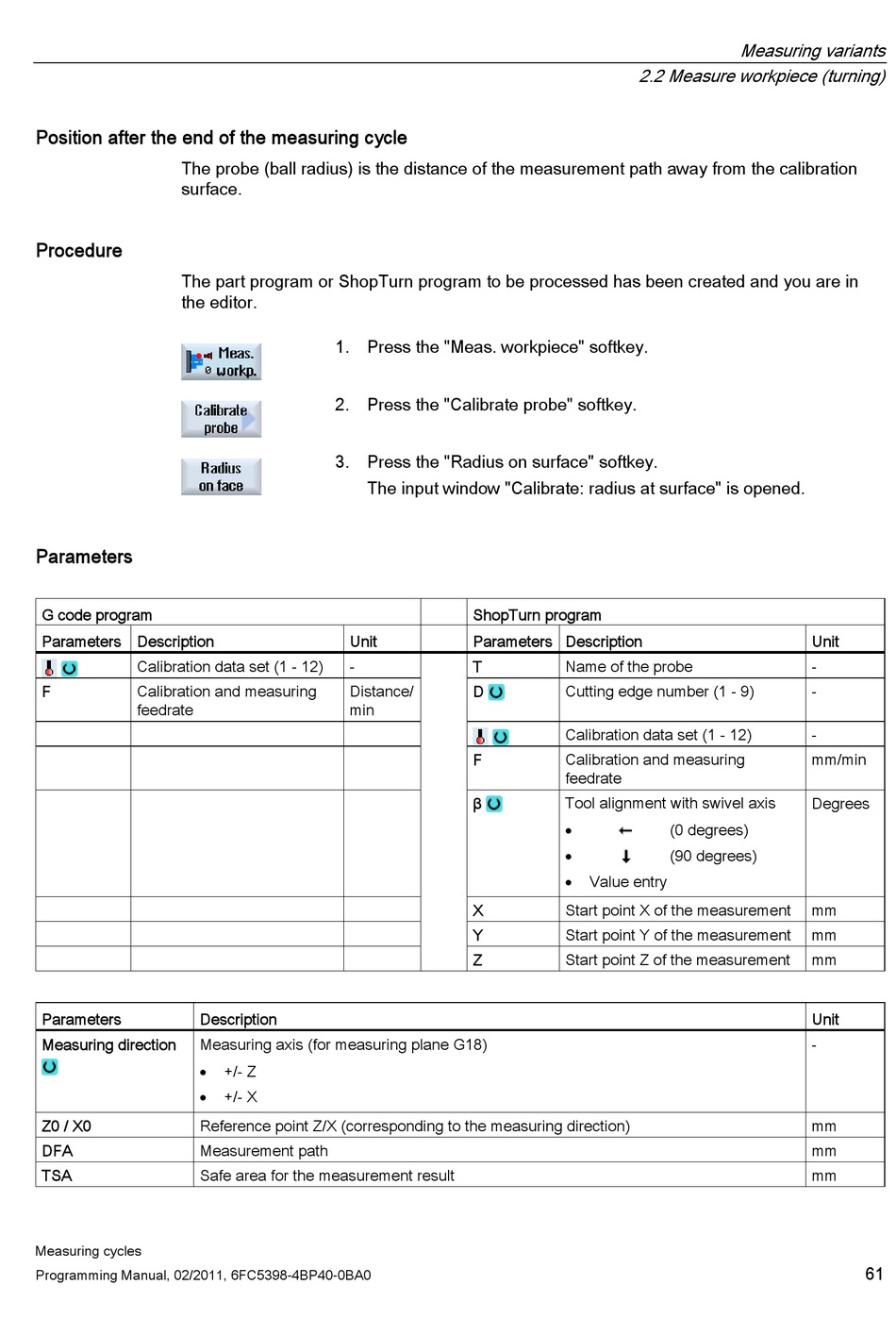

Siemens SINUMERIK 840D sl Programming Manual page 61

Position after the end of the measuring cycle
The probe (ball radius) is the distance of the measurement path away from the calibration
surface.
Procedure
The part program or ShopTurn program to be processed has been created and you are in
the editor.
Parameters
G code program
Parameters Description
Calibration data set (1 - 12)
F Calibration and measuring
feedrate
Parameters Description
Measuring direction Measuring axis (for measuring plane G18)


Z0 / X0 Reference point Z/X (corresponding to the measuring direction)
DFA Measurement path
TSA Safe area for the measurement result
Measuring cycles
Programming Manual, 02/2011, 6FC5398-4BP40-0BA0
1. Press the "Meas. workpiece" softkey.
2. Press the "Calibrate probe" softkey.
3. Press the "Radius on surface" softkey.
The input window "Calibrate: radius at surface" is opened.
Unit
-
Distance/
min
+/- Z
+/- X
2.2 Measure workpiece (turning)
ShopTurn program
Parameters Description
T Name of the probe
D Cutting edge number (1 - 9)
Calibration data set (1 - 12)
F Calibration and measuring
feedrate
β Tool alignment with swivel axis


Value entry

X Start point X of the measurement
Y Start point Y of the measurement
Z Start point Z of the measurement
Measuring variants
Unit
-
-
-
mm/min
Degrees
(0 degrees)
(90 degrees)
mm
mm
mm
Unit
-
mm
mm
mm
