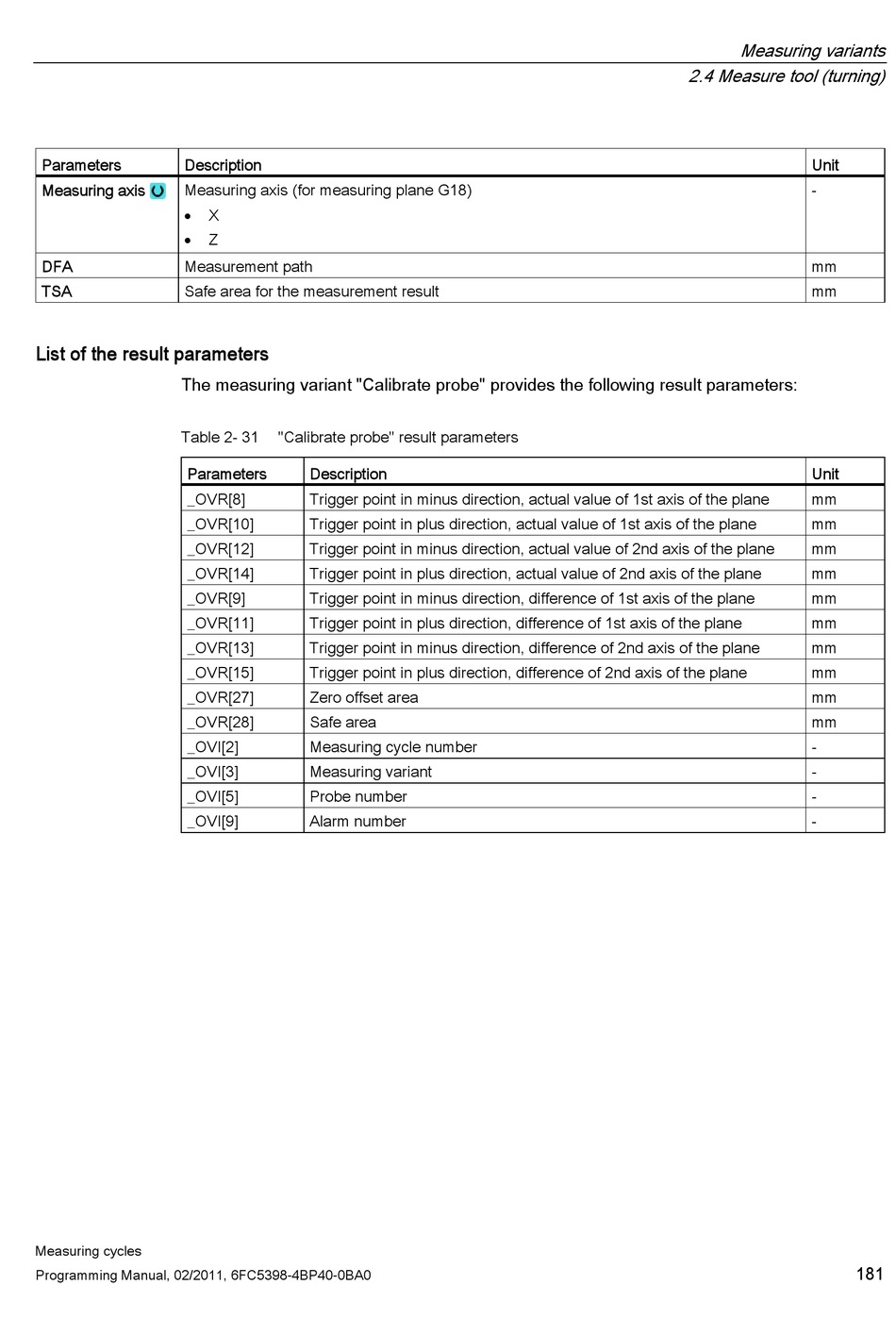

Siemens SINUMERIK 840D sl Programming Manual page 181

Parameters Description
Measuring axis Measuring axis (for measuring plane G18)


DFA Measurement path
TSA Safe area for the measurement result
List of the result parameters
The measuring variant "Calibrate probe" provides the following result parameters:
Table 2- 31
Parameters
_OVR[8]
_OVR[10]
_OVR[12]
_OVR[14]
_OVR[9]
_OVR[11]
_OVR[13]
_OVR[15]
_OVR[27]
_OVR[28]
_OVI[2]
_OVI[3]
_OVI[5]
_OVI[9]
Measuring cycles
Programming Manual, 02/2011, 6FC5398-4BP40-0BA0
X
Z
"Calibrate probe" result parameters
Description
Trigger point in minus direction, actual value of 1st axis of the plane
Trigger point in plus direction, actual value of 1st axis of the plane
Trigger point in minus direction, actual value of 2nd axis of the plane
Trigger point in plus direction, actual value of 2nd axis of the plane
Trigger point in minus direction, difference of 1st axis of the plane
Trigger point in plus direction, difference of 1st axis of the plane
Trigger point in minus direction, difference of 2nd axis of the plane
Trigger point in plus direction, difference of 2nd axis of the plane
Zero offset area
Safe area
Measuring cycle number
Measuring variant
Probe number
Alarm number
Measuring variants
2.4 Measure tool (turning)
Unit
-
mm
mm
Unit
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
-
-
-
-
