Engine

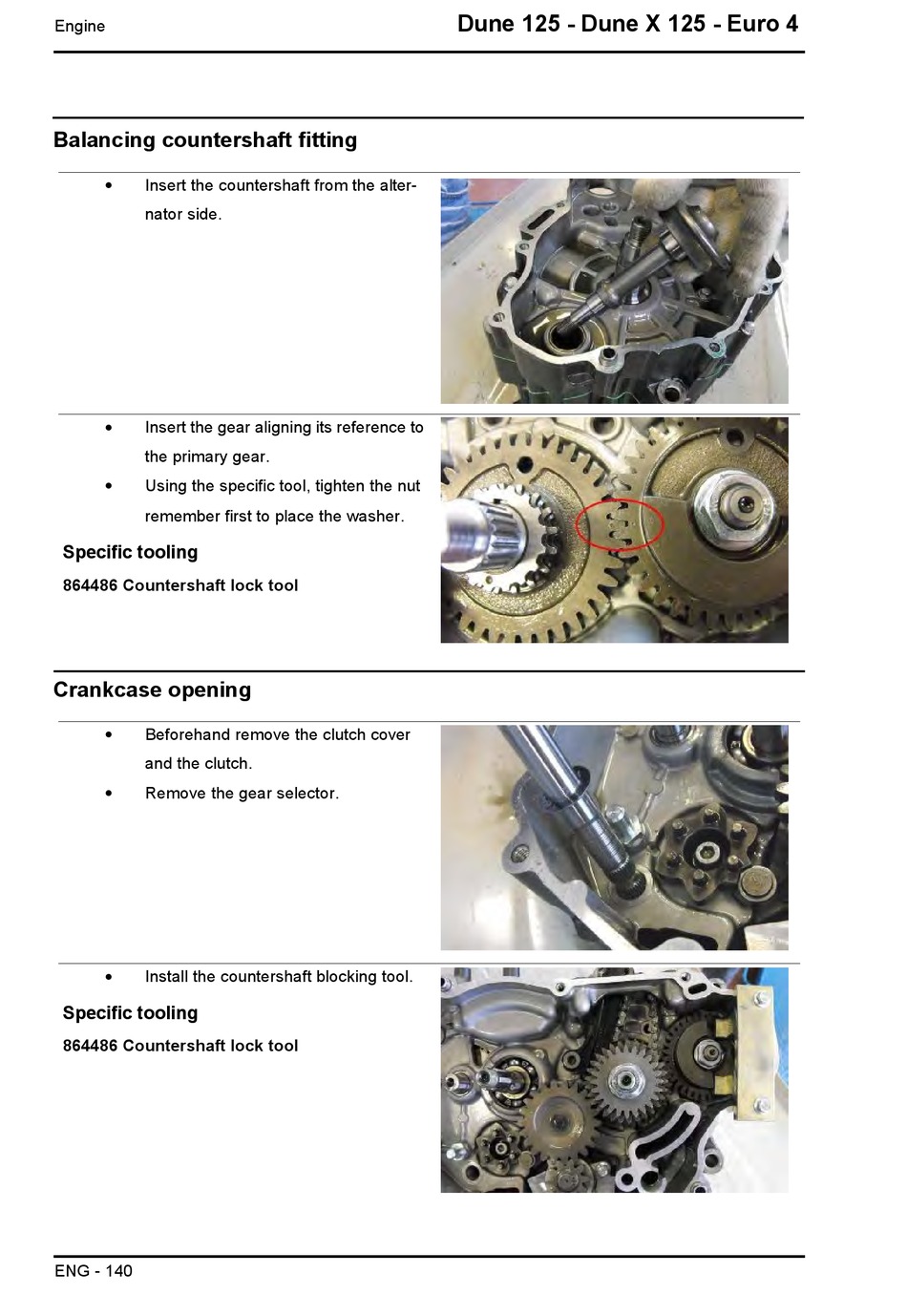

Balancing countershaft fitting


Insert the countershaft from the alter-
nator side.

Insert the gear aligning its reference to
the primary gear.

Using the specific tool, tighten the nut
remember first to place the washer.
Specific tooling
864486 Countershaft lock tool

Crankcase opening


Beforehand remove the clutch cover
and the clutch.

Remove the gear selector.

Install the countershaft blocking tool.
Specific tooling
864486 Countershaft lock tool
