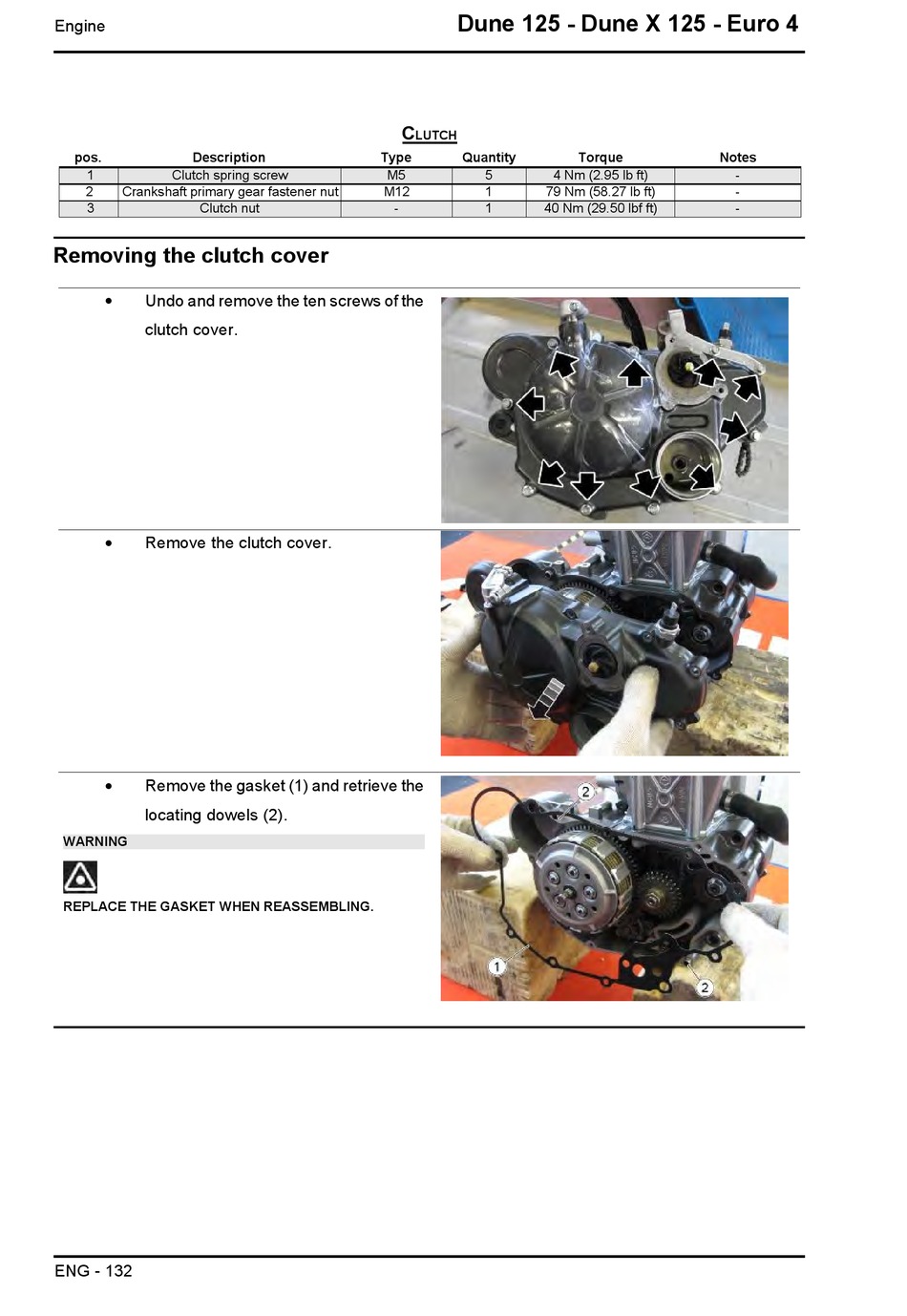

Removing the clutch cover

Undo and remove the ten screws of the
clutch cover.
Remove the clutch cover.
Remove the gasket (1) and retrieve the
locating dowels (2).
WARNING
REPLACE THE GASKET WHEN REASSEMBLING.
ENG - 132
Dune 125 - Dune X 125 - Euro 4
C
LUTCH
Type
Quantity
M5
5
M12
1
79 Nm (58.27 lb ft)
-
1
40 Nm (29.50 lbf ft)
Torque
Notes
4 Nm (2.95 lb ft)
-
-
-
