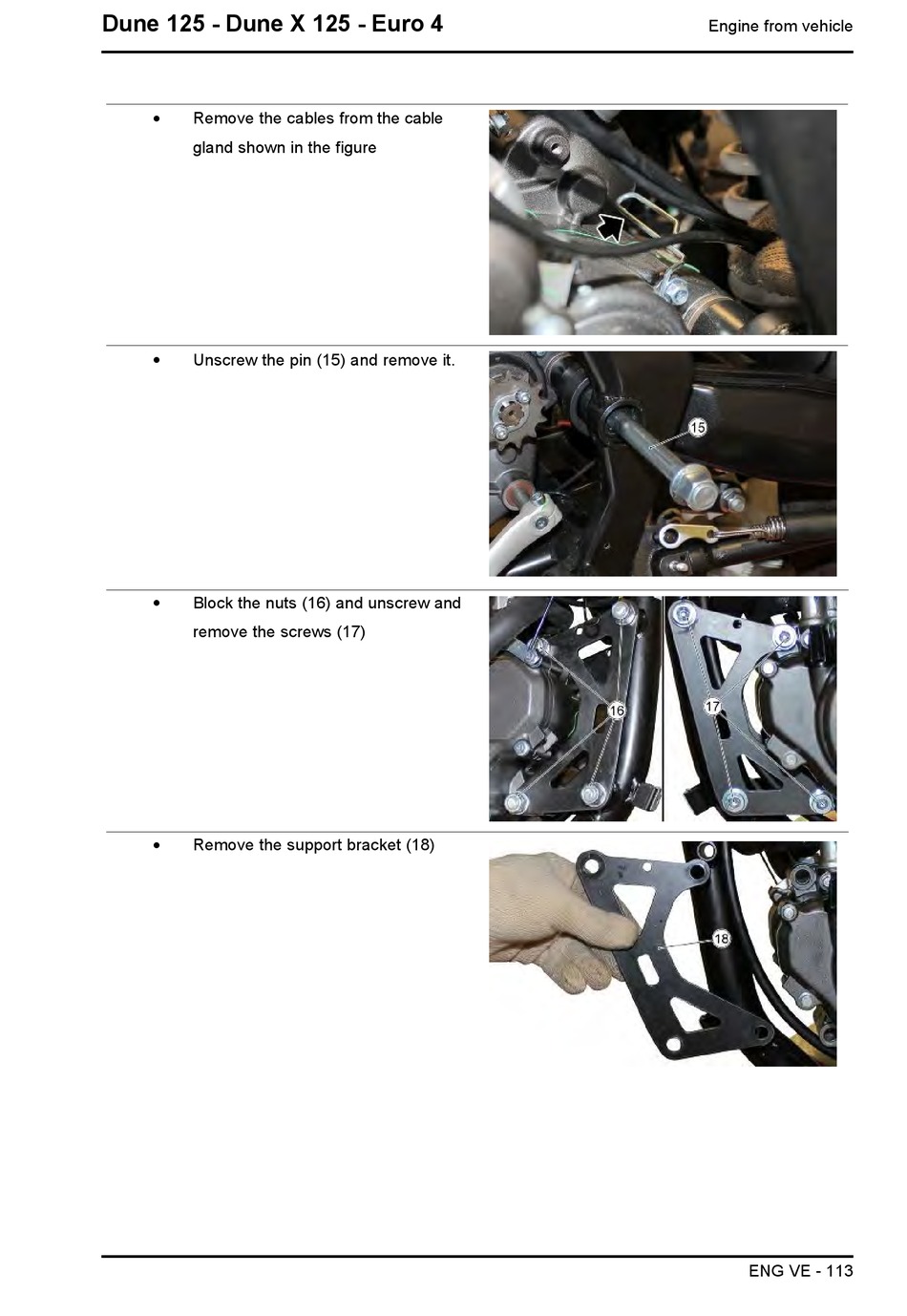

Dune 125 - Dune X 125 - Euro 4
Remove the cables from the cable
gland shown in the figure
Unscrew the pin (15) and remove it.
Block the nuts (16) and unscrew and
remove the screws (17)
Remove the support bracket (18)
Engine from vehicle
ENG VE - 113
