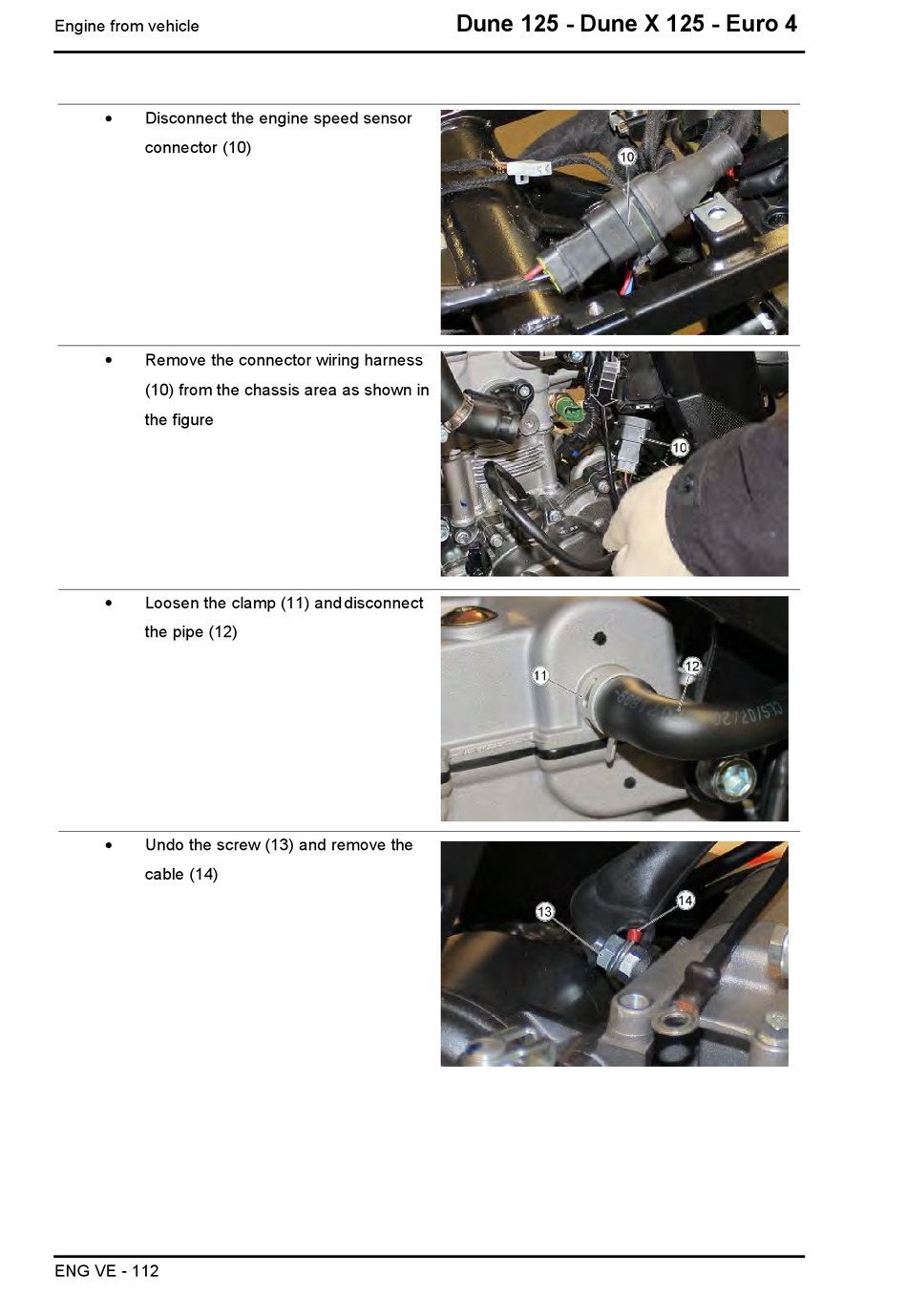

Engine from vehicle
Disconnect the engine speed sensor
connector (10)
Remove the connector wiring harness
(10) from the chassis area as shown in
the figure
Loosen the clamp (11) and disconnect
the pipe (12)
Undo the screw (13) and remove the
cable (14)
ENG VE - 112
Dune 125 - Dune X 125 - Euro 4
