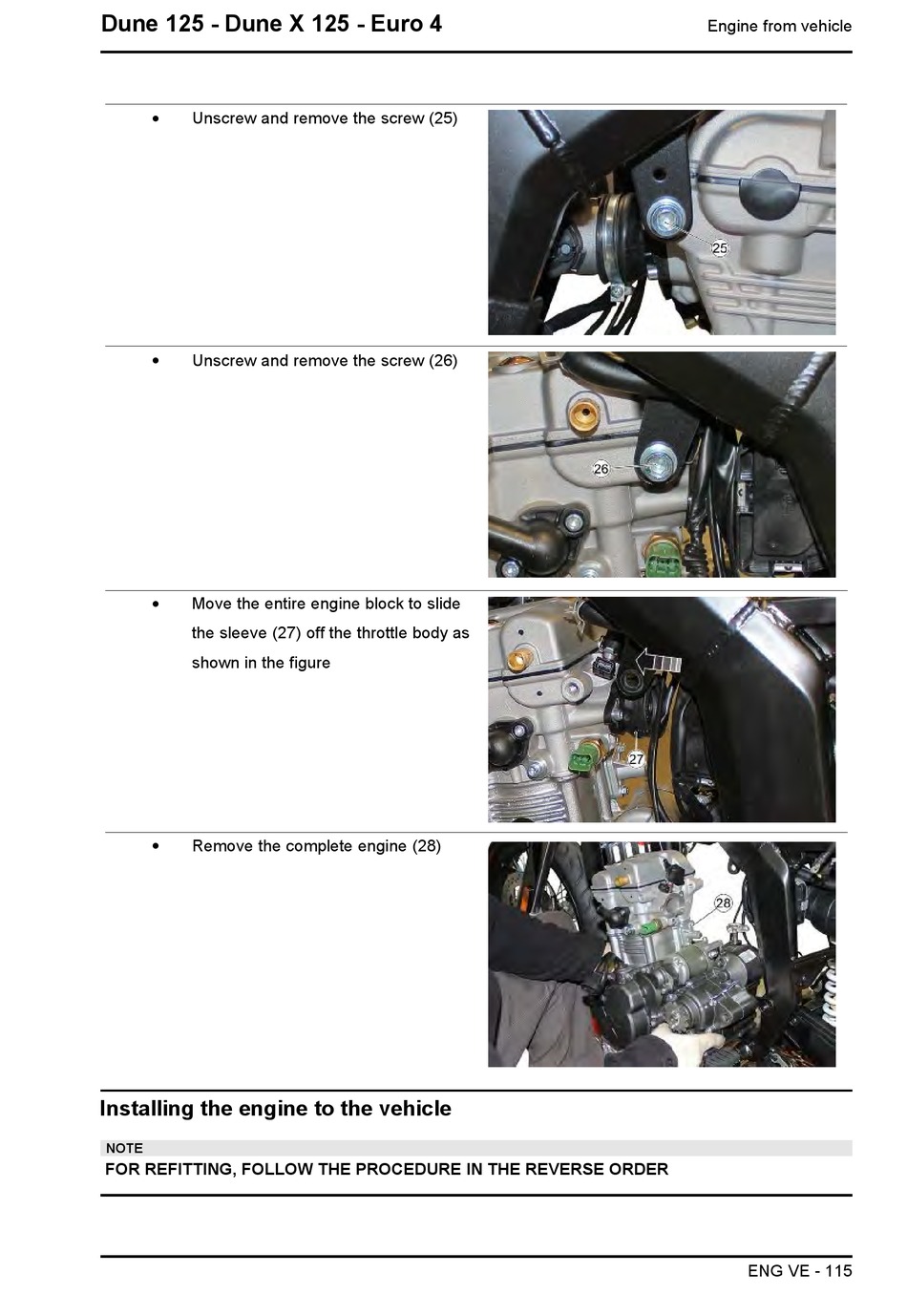

Dune 125 - Dune X 125 - Euro 4
Unscrew and remove the screw (25)
Unscrew and remove the screw (26)
Move the entire engine block to slide
the sleeve (27) off the throttle body as
shown in the figure
Remove the complete engine (28)
Installing the engine to the vehicle
NOTE
FOR REFITTING, FOLLOW THE PROCEDURE IN THE REVERSE ORDER
Engine from vehicle
ENG VE - 115
