3.10 Assembly Group Theraphy table

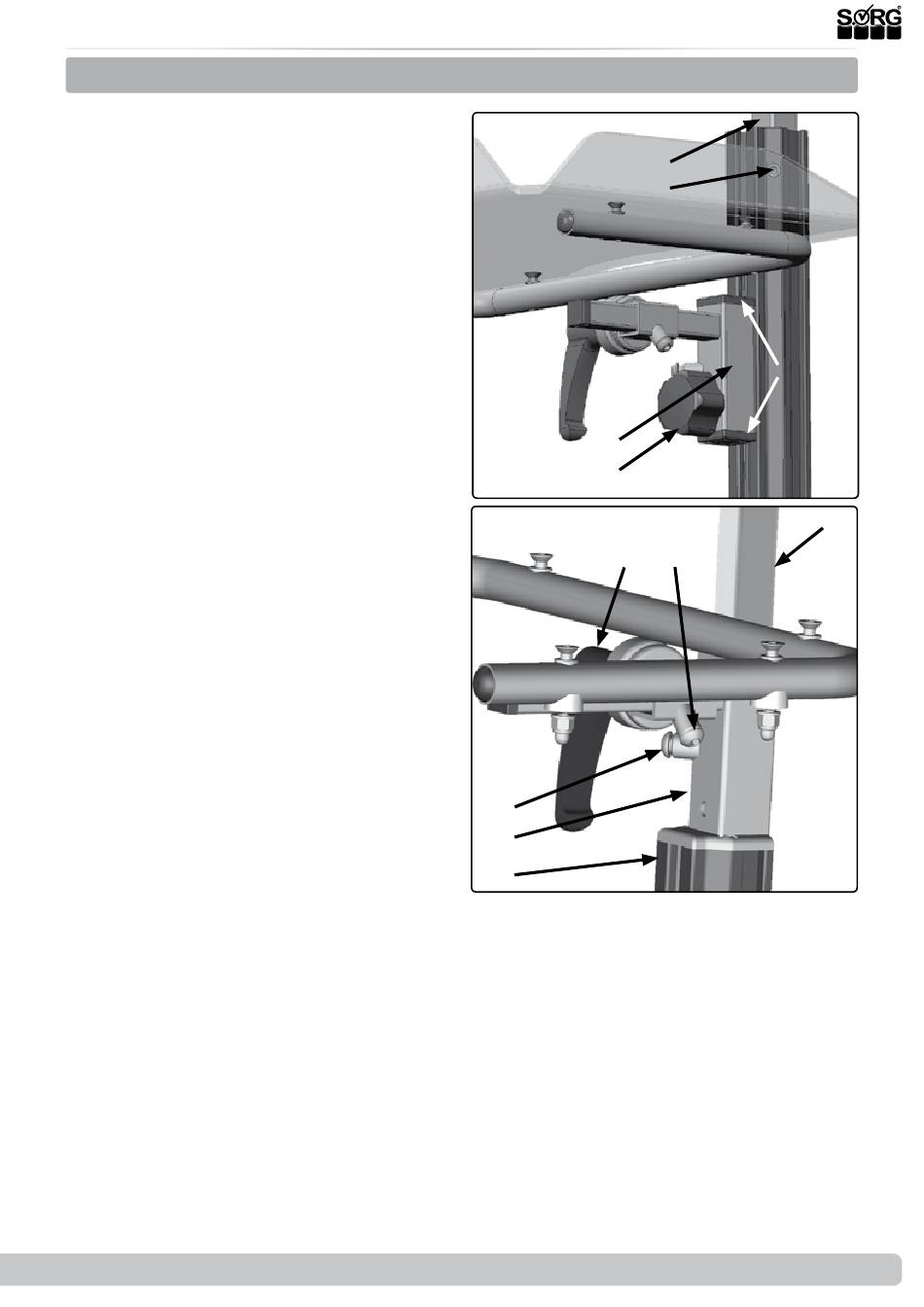

3.10.2 Mounting on the chest truss pad holder

To convert to the fixture on the chest truss pad
holder (high mounting):
• (1) Remove the star screw (A) incl. the
nut and the caps (B).
• Loosen the set screw (C) and pull the
holder (D) of the chest truss pad out.
• (2) Place the holder (E) of the therapy
table on the holder (F) of the chest truss
pad and
• replace the chest truss pad (F) in the
centre column (G).
• At the suitable height, retighten the
setscrew (H).
(2) To adjust the height:
• Loosen the set screw (H),
• move the therapy table on the holder
(B) and
• retighten the set screw (H).
(2) To adjust the distance:
• Loosen the set screw (I),
• place the therapy table in the wanted di-
stance and
• retighten the set screw (I).
(2) To adjust the tilt angle:
• Loosen the clamp lever (J),
• place the therapy table in the wanted tilt
• retighten the clamp lever (J).
2019-07-16
(1)
(2)
(H)
(E)
(G)
Service Record Boogie Drive
(D)
(C)
(E)
(A)
(I)
(J)
(B)
(F)
27 of 36
