Service Record Boogie Drive
ENG

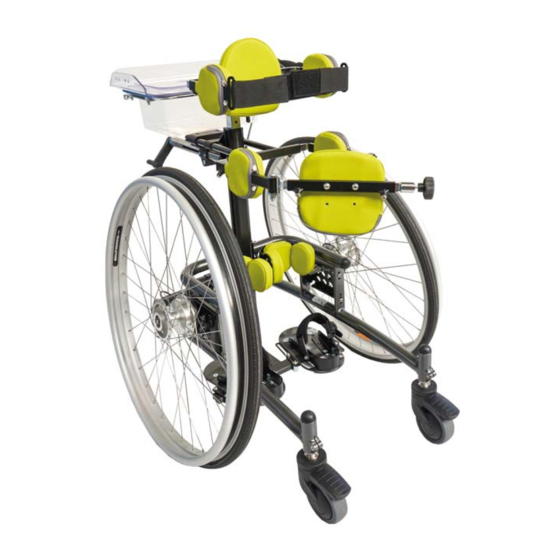

Boogie Drive

Service Record

In the following all individual adjustments of the standing aid are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
2019-07-16
Service Record Boogie Drive
Unique people, unique solutions.
1 of 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boogie Drive and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SORG Boogie Drive

Summary of Contents for SORG Boogie Drive

  • Page 1: Service Record

    Service Record Boogie Drive Boogie Drive Service Record In the following all individual adjustments of the standing aid are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. 2019-07-16 Service Record Boogie Drive Unique people, unique solutions.
