3.2 Assembly Group Centre Column

The centre column can be set and adjusted in angle and with frame size 1 it can also be adjusted
in height.

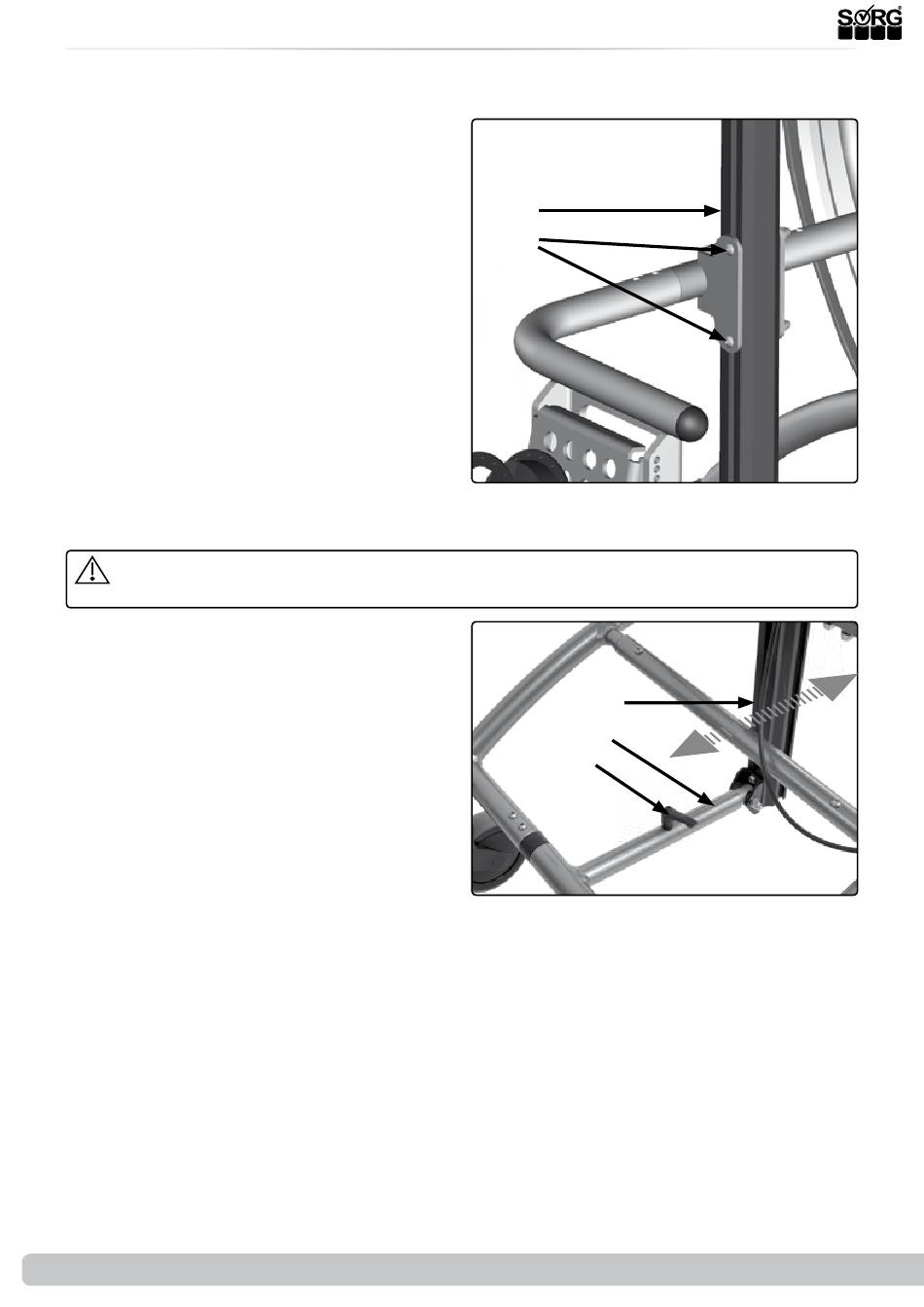

Height adjustment of the centre column with
frame size 1
Should it become necessary to move the centre
column down:
• (1) Secure the mobile standing device
from rolling away by operating the drum
brakes and with the wheel locks of the
back casters.
• Remove the driving wheels and, for bet-
ter handling, all truss pads.
• Remove both screws (A) and spacer
bushings on the centre column (B).
• Move the centre column (B) one drilled
hole down.
• Replace the screws (A) and the spacer
bushings
• and retighten them.
Setting the angle of the centre column by
telescope and clamp lever
The angle setting of the centre column with telescope and clamp lever can only take place
when nobody is in the mobile standing device.
(2) To change the angle:
• Secure the mobile standing device from
rolling away by operating the drum bra-
kes and with the wheel locks of the back
casters.
• Loosen the clamp lever (A) of the tele-
scope (B),
• place the centre column (C) in the desi-
red position,
• close the clamp lever (A) tightly.
12 of 36
(1)
(B)
(A)
(2)
Service Record Boogie Drive
(C)
(B)
(A)
2019-07-16
