3.5 Assembly Group Chest truss pad

3.5.2 Side chest truss pas

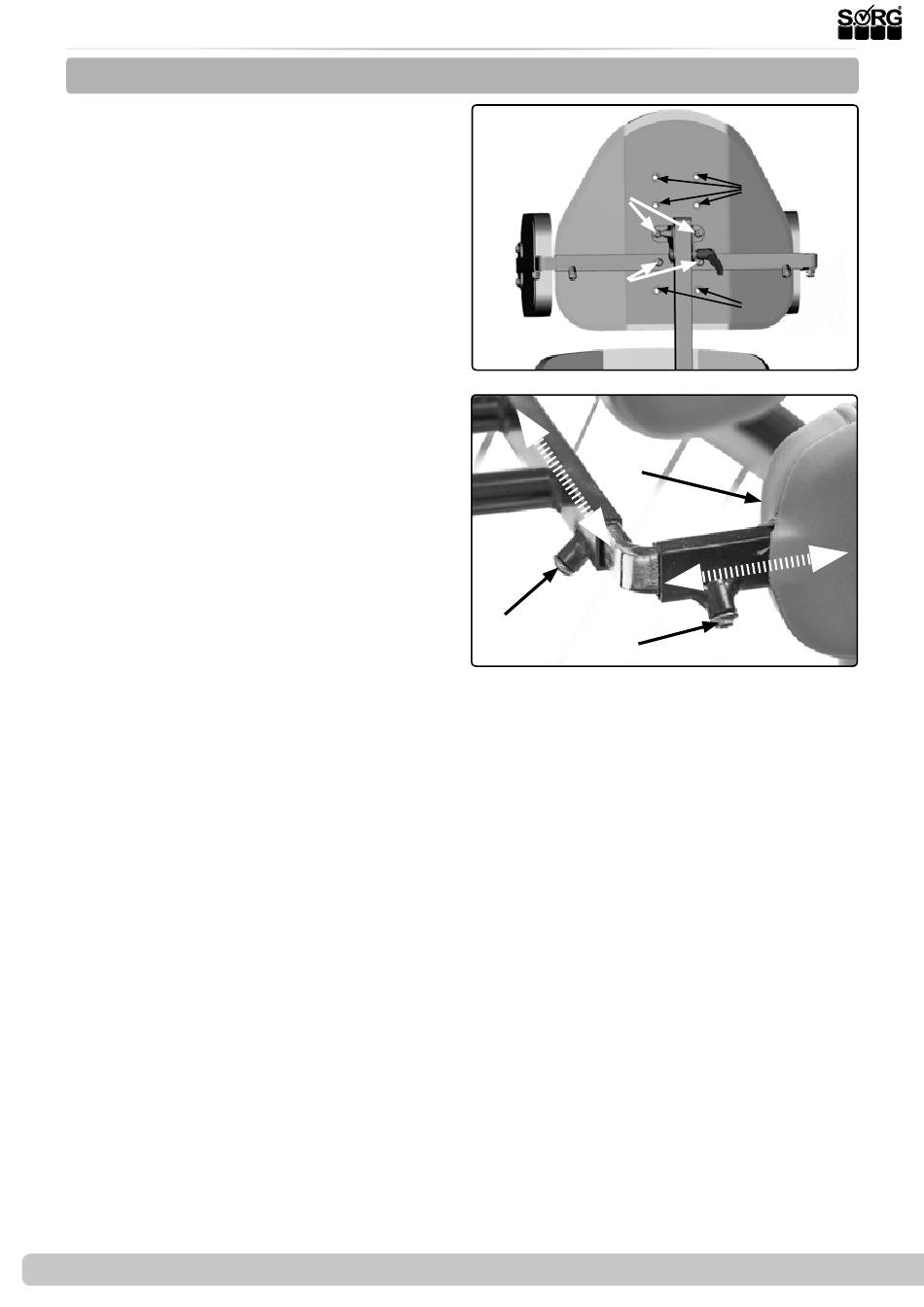

(1) To adjust the height:
• Remove both screws (C),
• place the holder of the side chest truss
pads in the alternative holes (B) and
• retighten the screws (C).
(2) To adjust the width:
• Loosen the set screws on both sides (A),
• place the side chest truss pads (B) in the
desired distance and
• retighten the set screws (A).
(2) To adjust the depth:
• Loosen the set screws on both sides (C),
• place the side chest truss pads (B) in the
desired position and
• retighten all set screws/clamp levers (C).
