3.10 Assembly Group Theraphy table

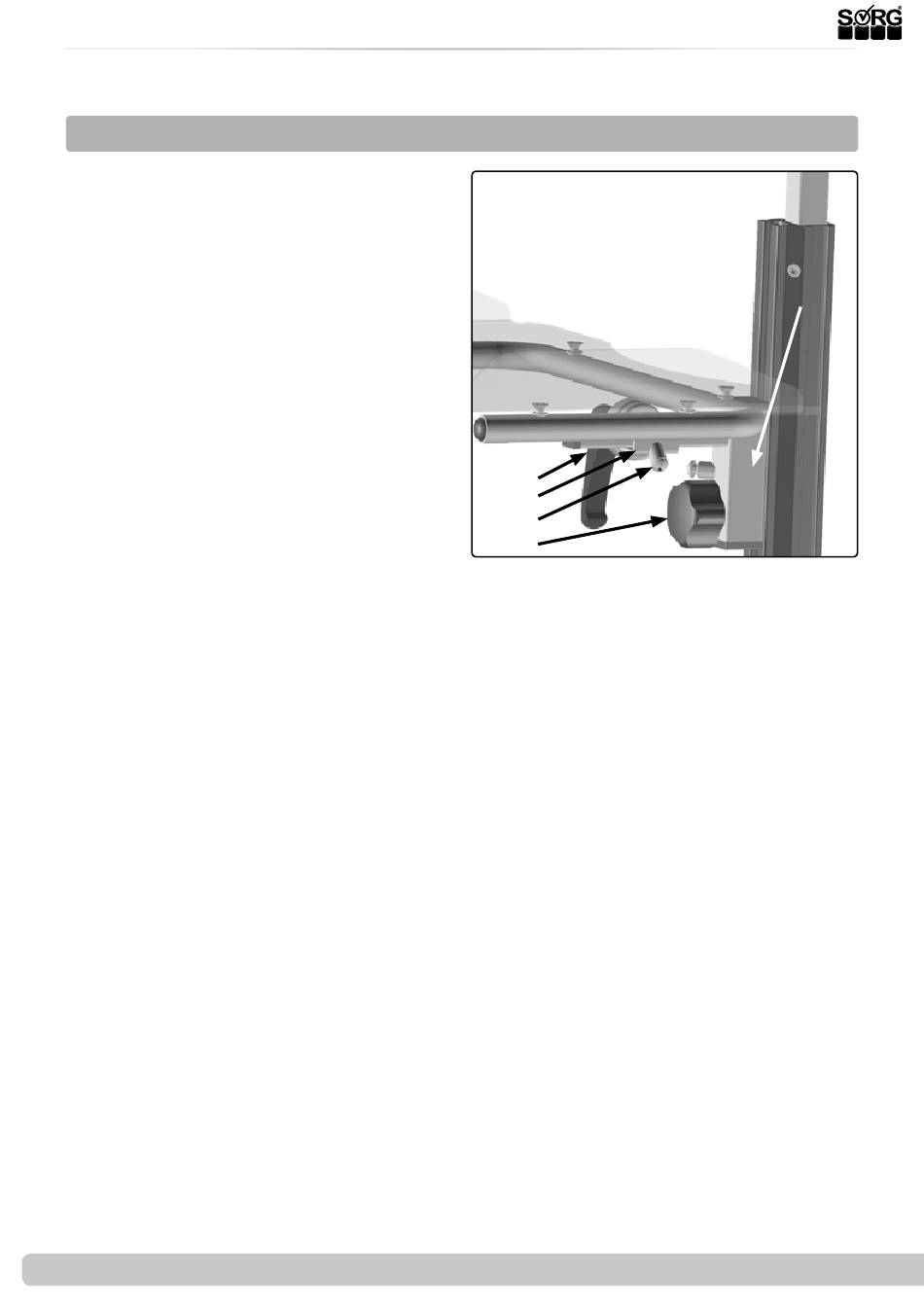

The therapy table is attached to the centre column ex works (standard assembly). However, it
can be varied in height and also attached to the chest truss pad holder.

3.10.1 Standard mounting

(1) To adjust the height:
• Loosen the star screw (A),
• move the therapy table on the holder
(B)
• and retighten the star screw (A).
(1) To adjust the distance:
• Loosent the set screws (C),
• place the therapy table on the holder
(D) in the desired position and
• retighten the set screws (A).
(1) To adjust the tilt angle:
• Loosen the clamp lever (E),
• place the therapy table in the wanted tilt
and
• retighten the clamp lever (E).
