3.6 Assembly Group Pelvis truss pad

The truss pads can be equipped with either set screws or clamp levers.
In the following chapters the setting process will be described according to the respective
picture. Should your mobile standing device be equipped differently then please proceed
correspondingly.

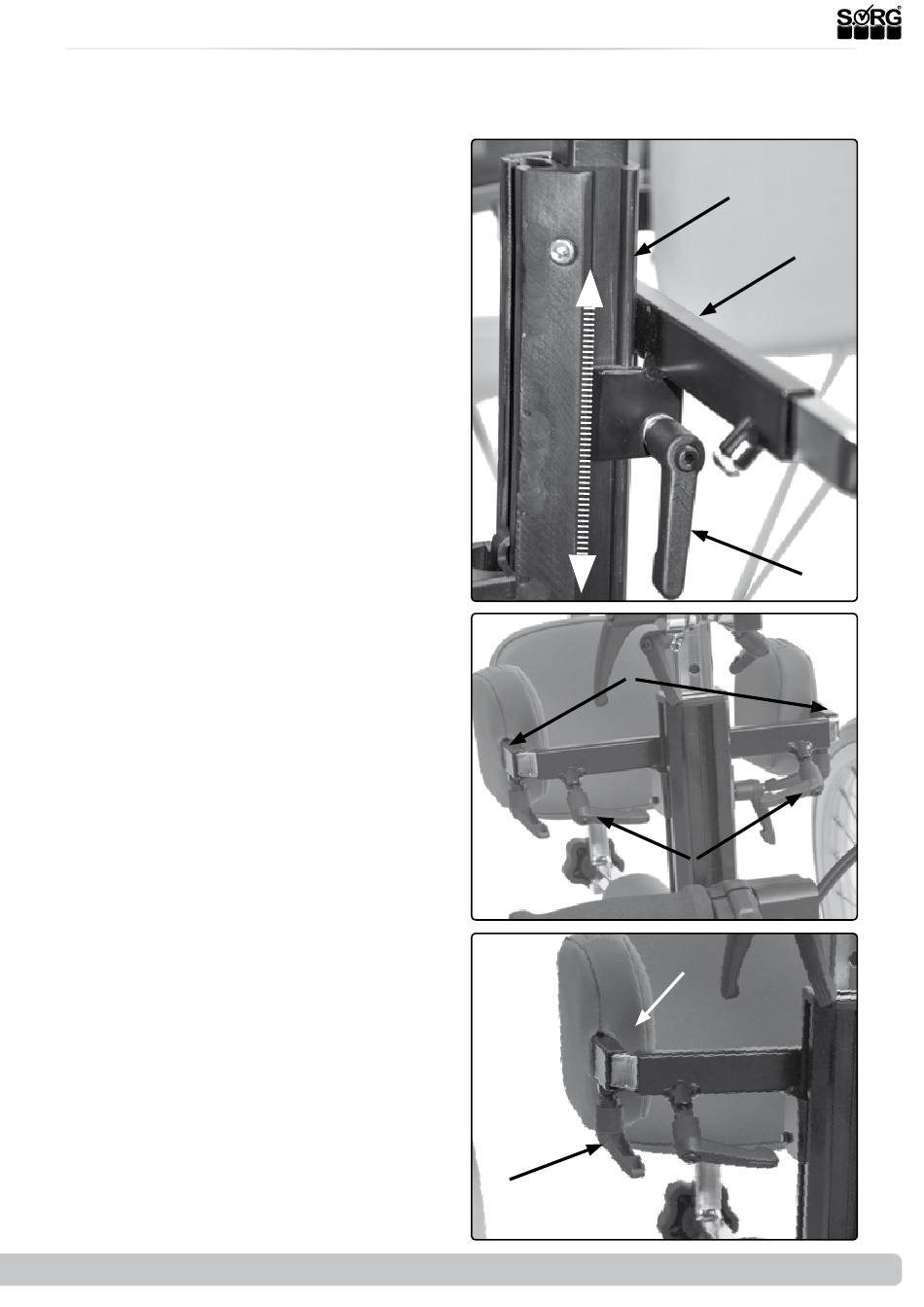

(1) To adjust the height:
• Open the clamp lever (A),
• Move the holder (B) along the centre
column (C) to the desired spot
• and retigthen the clamp lever (A).
Adjusting the width
(2) To adjust the width:
• Open both clamp levers (A),
• telescope both bails (B) to the desired
measurements
• and retighten the clamp levers (A).
Adjusting the depth
(3) To adjust the depth
• Open the clamp levers (A) on both sides,
• move both truss pads (B) to the desired
position
• and retighten both clamp levers (A).
2019-07-16
(1)
(2)
(3)
(A)
Service Record Boogie Drive
(C)
(B)
(A)
(B)
(B)
(A)
