3.9 Assembly Group Knee truss pad

The pads can optionally be equipped with set screws or clamping levers.
In the following chapters, the setting process is described based on the picture used. If your
standing coach is equipped differently, please proceed accordingly.

3.9.1 Standard knee truss pad

The knee truss pads must have been set to the individual measurements of the child/ado-
lescent as exact as possible before the first use of the mobile standing device. When the user
is standing in the mobile standing device, only fine adjustments are then allowed to be made.
We recommend before the first use, to set the width of the knee truss pads to the measurements
of the user. For this, please remove the knee truss pads.

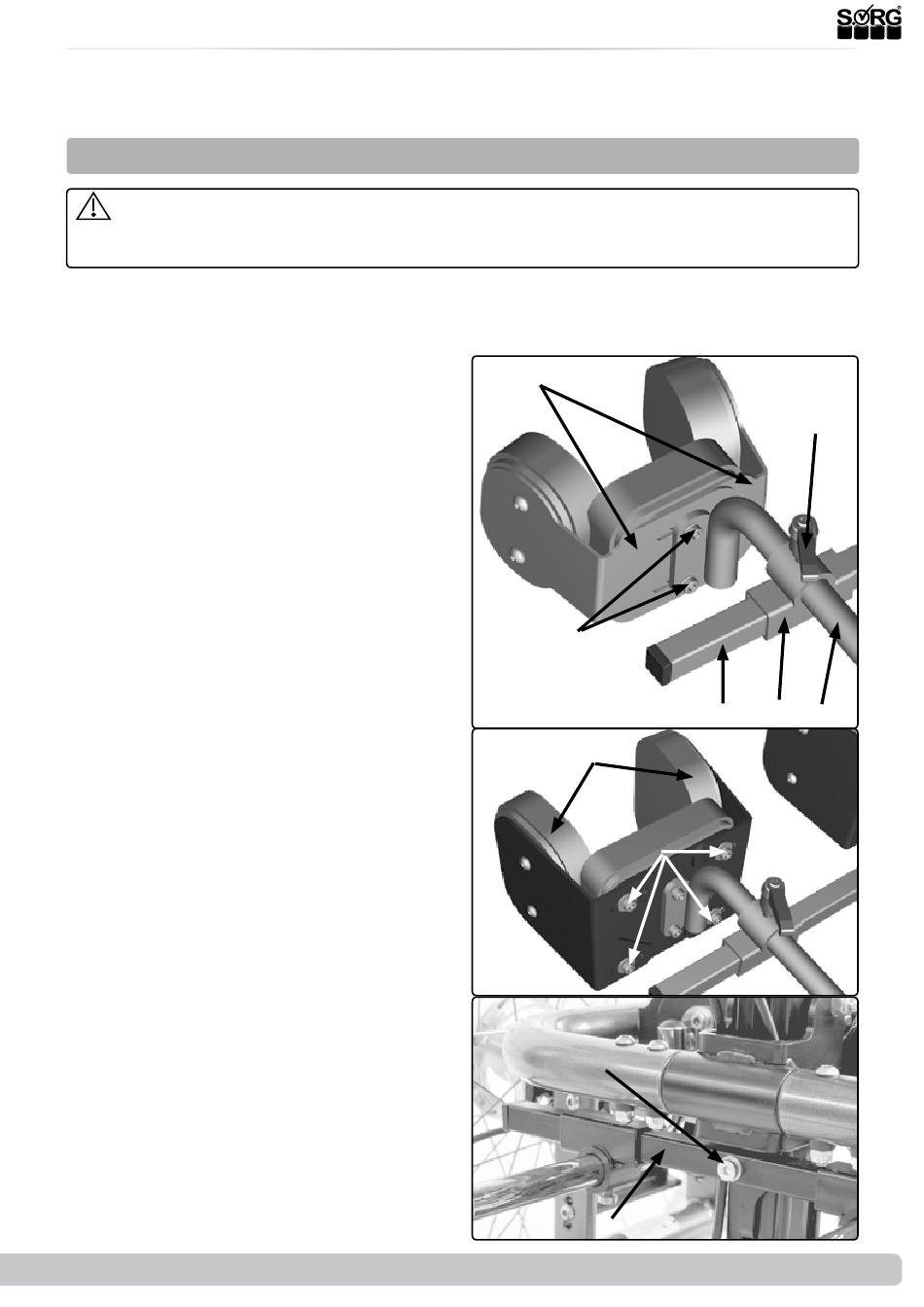

Adjusting the truss pad width size 1
(1) To adjust the knee truss pad:
• Loosen both screws (A),
• telescope
the elongated hole to the desired
measurement
• and retighten both screws (A).
Adjusting the truss pad width size 2
(2) To adjust the knee truss pad:
• Loosen all four screws (A),
• telescope both holders (B) to the
desired measusrements
• and retighten all screws (A).
Adjusting the height
(3) To adjust the height:
• Loosen the screw (A),
• displace the holder (B) to the desired
height and
• retighten the screws (A).
(3) And/or:
• Loosen the screws (D) on both sides,
• turn the holders (C) 180° and
• retighten the screws (D).
(3) And/or:
• Loosen the screws (D) on both sides,
• remove the holder (C),
• turn the holder (C) vertical 180°,
• place it back on the holder (B) and
• retighten the screws (D).
