3.3 Assembly Group Leg support

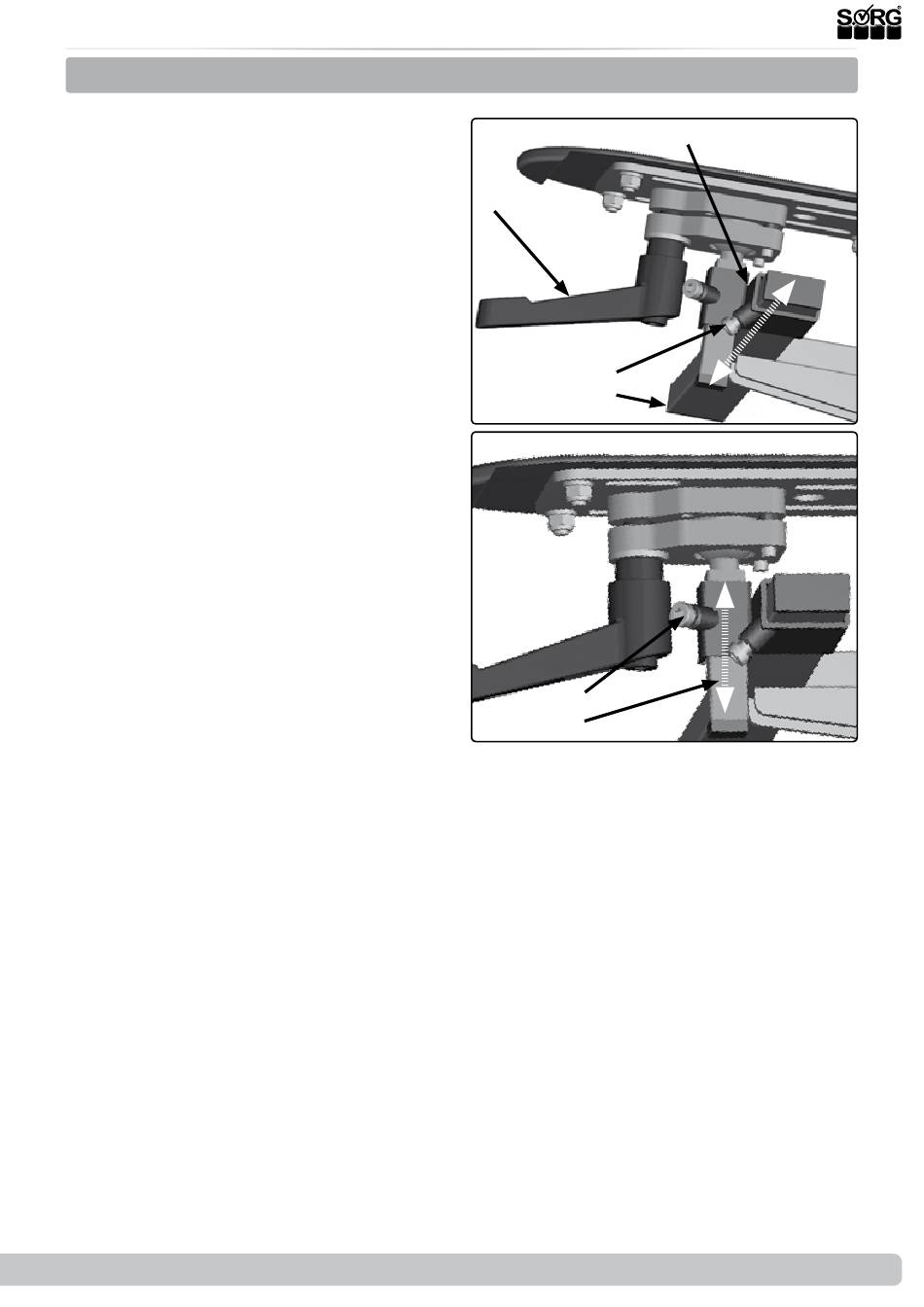

3.3.2 Setting the angle of the 3D foot plates

The 3D foot plates can be adjusted, tilted and
turned three-dimensional (This can be done
seperately to one another and stepless.).
(1) To adjust the 3D-angle:
• Loosen the clamp lever (A) and place
the foot plate in the desired tilt/positi-
on/rotation.
• Retighten the clamp lever (A).
Abducting the 3D foot plates
(1) To abduct:
• Loosen the set screw (B) and move the
foot plate along the pillar (C) to the
desired position.
• Retighten the set screw (B).
Setting the height of the 3D foot plates
(2) To set the height:
• Loosen the set screw (A) and
• move the respective foot plate along the
pillar (B) in the desired position.
• Retighten the set screw (A).
To set the depth:
• Loosen the set screw (B) and completely
remove the foot plate bracket (D).
• Turn the bracket (D) 180° and
• mount it back on the pillar (C).
• Retighten the set screw (B).
2019-07-16
(1)
(A)
(2)
Service Record Boogie Drive
(D)
(B)
(C)
(A)
(B)
15 of 36
