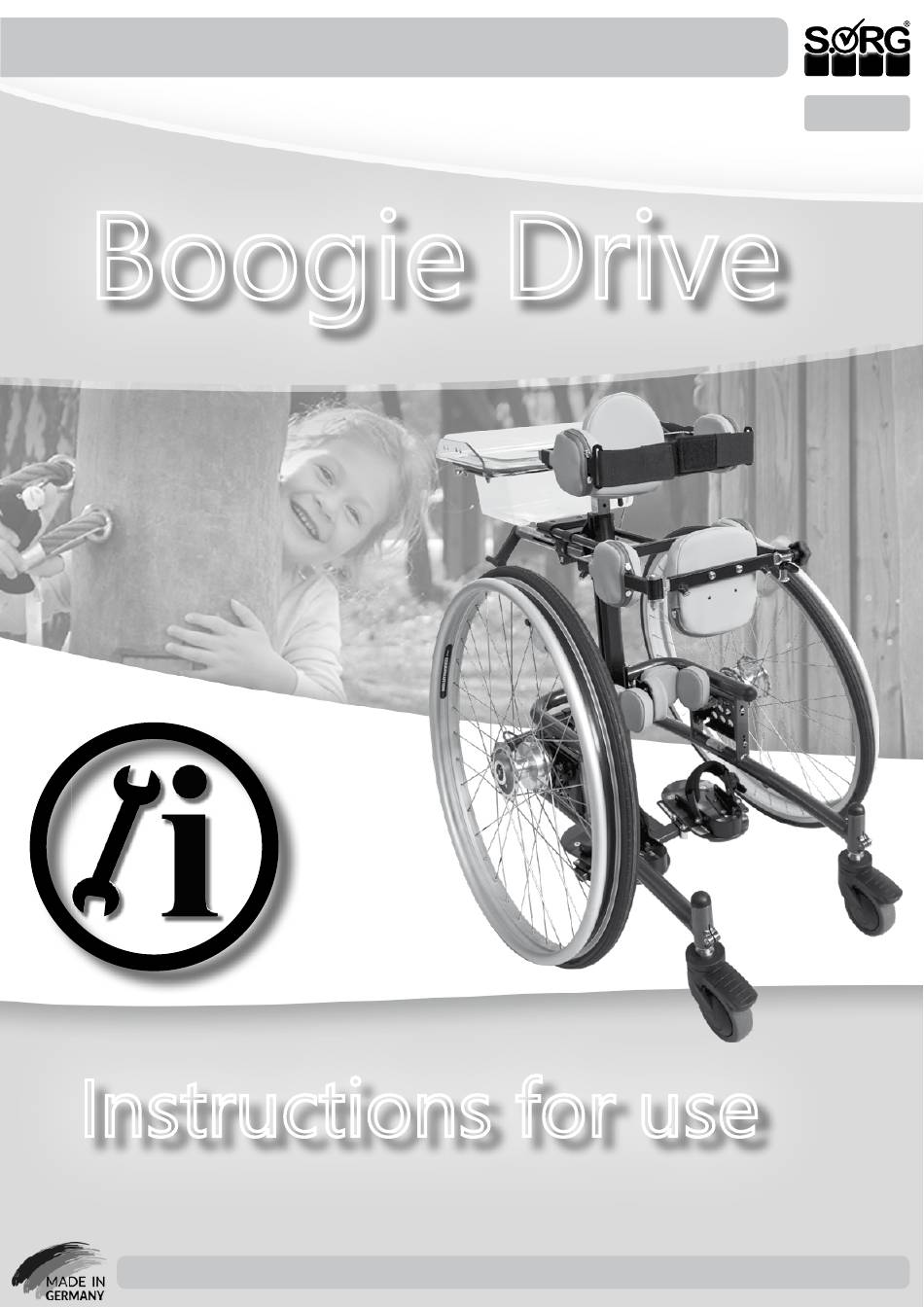

- Page 1 Instructions for use Boogie Drive Boogie Drive Instructions for use 2019-08-15 Instructions of use Boogie Drive Unique people, unique solutions. 1 of 32...
- Page 2 Imprint SORG Rollstuhltechnik GmbH + Co. KG Benzstrasse 3-5 68794 Oberhausen-Rheinhausen / Germany Phone +49 7254-9279-0 +49 7254-9279-10 E-Mail info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Revision status 2019-08-12 Technical status Technical changes and misprints reserved. The pictures in this Instructions for use can differ from the actual equipment components.
-
Page 3: Table Of Contents
3.8.1 General information regarding wheels 22 3.8.2 Quick-release axles 3.9 Handling footrest 3.9.1 General information regarding footrest 3.9.2 Foot plate belt 3.10 Handling therapy table 3.10.1 General information regarding therapy table 2019-08-15 Instructions of use Boogie Drive 3 of 32... - Page 4 4 of 32 Instructions of use Boogie Drive 2019-08-15...
-
Page 5: Mobile Standing Device Overview
16 Cushion for posterior truss pad 17 Swivel bracket 18 Side posterior truss pad 19 Centre column 20 Gas pressure spring 21 Front swivel caster 22 Release pedal for gas pressure spring 2019-08-15 Instructions of use Boogie Drive 5 of 32... -
Page 6: General Information
2 General information 2.1 Preface A warm welcome to the SORG family – many thanks for the trust you have placed in us and for choosing our product. This mobile standing device has been individually tailored to meet your specific requirements. -
Page 7: Signs And Symbols
Turn counterclockwise view from the back steps to be done at the same time fasten parts steps to be done after each other remove parts steps to be done on both sides 2019-08-15 Instructions of use Boogie Drive 7 of 32... -
Page 8: Intended Purpose
2 General information 2.2.2 Intended purpose The Boogie Drive is a mobile standing device with an inclinable centre column for children and young people. It is designed exclusively for indoor use. The aid is designed exclusively for tem- porary use in accordance with therapeutic specifications. -
Page 9: General Safety Information
In the case of frequent crossing of e.g. door thresholds or the like, the front wheel should not be in contact with the ground. 2019-08-15 Instructions of use Boogie Drive 9 of 32... - Page 10 Occupants must only get in and out of the trainer on level, horizontal and firm ground and with the parking brake applied and the wheel locks on the rear casters on. 10 of 32 Instructions of use Boogie Drive 2019-08-15...
-
Page 11: Loading And Transport Without Occupants
The product has been designed with corrosion protection in mind when selecting the materials (e.g. plastic, aluminium, stainless steel). All materials prone to corrosion are surface-treated and are therefore protected. The mobile standing device must be dried thoroughly if it becomes wet. 2019-08-15 Instructions of use Boogie Drive 11 of 32... -
Page 12: Handling
The standing trainer is not ready for use without the star grip firmly secured! 3.1.2 Posterior truss pad with crotch pad Removal (to insert, proceed accordingly in reverse order): (2b) (2a) 90° Set depth: (2a) (2b) 12 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 13: Posterior Truss Pad Swivel Bracket
3.1 Handling posterior truss pad Set height of step pad: Set height of posterior truss pad: 3.1.3 Posterior truss pad swivel bracket Set height: 2019-08-15 Instructions of use Boogie Drive 13 of 32... - Page 14 3.1 Handling posterior truss pad Open (to close, proceed accordingly in reverse order): 90° Set depth on posterior truss pad with swivel bracket and crank: 14 of 32 Instructions of use Boogie Drive 2019-08-15...
-
Page 15: Handling Centre Column
The angle may only be adjusted with telescope and clamp lever if there is no occupant in the standing trainer. Angle adjustment with gas pressure spring: Telescope and clamp lever angle adjustment: 2019-08-15 Instructions of use Boogie Drive 15 of 32... -
Page 16: Handling Pelvic Truss Pad
3.3 Handling pelvic truss pad 3.3.1 General information regarding pelvic truss pad The truss pads can be optionally equipped with setscrews or clamp levers. Set height: Set width: Set depth: 16 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 17: Handling Back Truss Pad
3.4 Handling back truss pad 3.4.1 General information regarding back truss pad Set height: 2019-08-15 Instructions of use Boogie Drive 17 of 32... -
Page 18: Handling Chest Pad
3.5 Handling chest pad 3.5.1 General information regarding chest pad Set inclination: 18 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 19: Handling Knee Truss Pad
The width of the knee truss pads must be set to the individual dimensions of the occupant before use. Only fine adjustments may then be made. 3.6.2 Knee truss pads Set height: Set depth/ distance: 2019-08-15 Instructions of use Boogie Drive 19 of 32... -
Page 20: Handling Brake
Always use the rear swivelling caster brake additionally when locking the standing trainer. 3.7.2 Drum brake Brake: Clean the braking elements of the drum brake wheels at short intervals using a soft brush. Lock: (2a) (2b) Release: Shift: 20 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 21: Rear Swivel Casters With Wheel Lock
3.7 Handling brake 3.7.3 Rear swivel casters with wheel lock Lock (to release, proceed accordingly in reverse order): 2019-08-15 Instructions of use Boogie Drive 21 of 32... -
Page 22: Handling Driving Wheel
(2) After insertion, the locking ball (A) must be visibly protruding. Pull at least 1x after each insertion to test whether the quick-release axle is engaged. It should no longer be possible to pull the wheels outwards. 22 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 23: Handling Footrest
3.9 Handling footrest 3.9.1 General information regarding footrest 3D footrest angle adjustment: Firmly close the clamp lever and check the fixed position of the footrest. 2019-08-15 Instructions of use Boogie Drive 23 of 32... -
Page 24: Foot Plate Belt
3.9 Handling footrest 3.9.2 Foot plate belt Close (to open, proceed accordingly in reverse order): Tensioning/slackening: 24 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 25: Handling Therapy Table
3.10 Handling therapy table 3.10.1 General information regarding therapy table Set height of the therapy table on the centre column: Set inclination: 2019-08-15 Instructions of use Boogie Drive 25 of 32... -
Page 26: Repairs And Maintenance
Pack detachable textile parts in foil or the like, if necessary • Secure the mobile standing device against rolling away and contamination • Storage in a dry place without aggressive environmental influences 26 of 32 Instructions of use Boogie Drive 2019-08-15... -
Page 27: Reinstatement
Welding seams, add-on parts and accessories for hidden damage, bends or cracks, • Tyre tread. Thoroughly clean and oil all moving parts. Please contact your dealer immediately if you notice any defects during maintenance. Stop using the standing trainer. 2019-08-15 Instructions of use Boogie Drive 27 of 32... - Page 28 Brakes cleaned and serviced, Locking mechanisms (springs, quick-release axles, eccentric clamps, etc.) checked for functionality, Oil: Moving parts and bearings oiled Final check: Functional check of all mechanical adjustment devices carried out 28 of 32 Instructions of use Boogie Drive 2019-08-15...
-
Page 29: Technical Data
2019-08-15 Instructions of use Boogie Drive 29 of 32... -
Page 30: Meaning Of Labels
5.2 Meaning of labels The meaning of the individual labels can be directly derived from the text at the corresponding position. A new nameplate can be obtained from SORG Rollstuhltechnik if the original one is lost or dam- aged. Typeplate:... -
Page 31: Verification Of Yearly Inspection
Date/ Retailer's signature yearly inspection conducted according to Stamp: check list (year 4) Remarks: Date/ Retailer's signature yearly inspection conducted according to Stamp: check list (year 5) Remarks: Date/ Retailer's signature 2019-08-15 Instructions of use Boogie Drive 31 of 32... - Page 32 Instructions for use Boogie Drive SORG Rollstuhltechnik GmbH + Co. KG Benzstrasse 3-5 68794 Oberhausen-Rheinhausen / Germany Germany Phone +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de company stamp www.sorgrollstuhltechnik.de...
