3.8 Assembly Group Back truss pad

3.8.1 Back truss pads

(1) To adjust the Height
• loosen the clamp lever (A),
• push the holder (B) of the back truss
pad in the desired position,
• retighten the clamp lever (A).
(1) To adjust the depth
• loosen the set screw (C),
• push the holder (D) in the desired posi-
tion,
• retighten the set screw (C).
(1) To adjust the angle
• loosen the cap nut (E),
• place the back cushions (F) in the desi-
red position,
• retighten the cap nut (E).
22 of 36

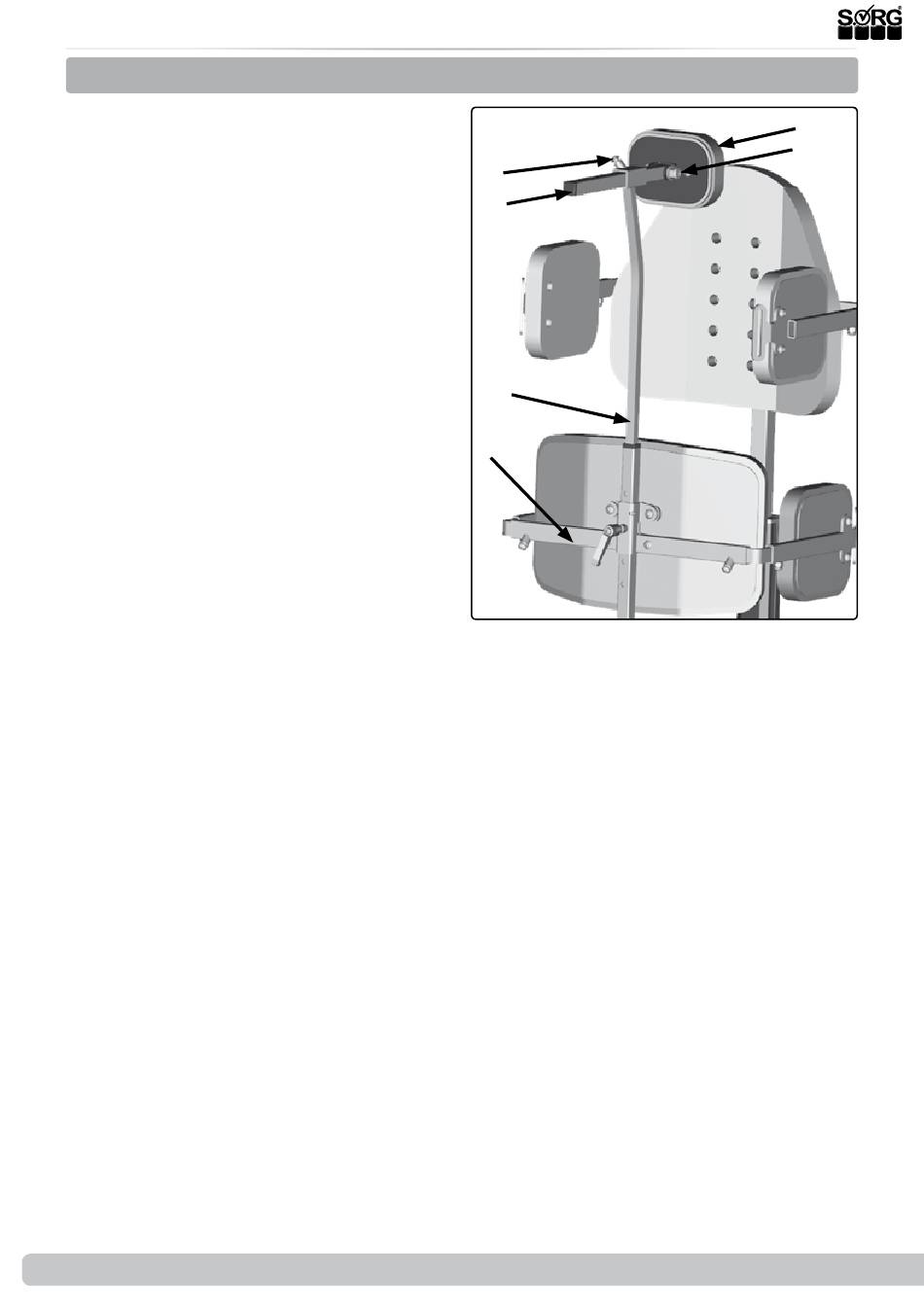

(1)
(C)
(D)
(B)
(A)
Service Record Boogie Drive
(F)
(E)
