3.3 Assembly Group Leg support

3.3.1 Food plates standard

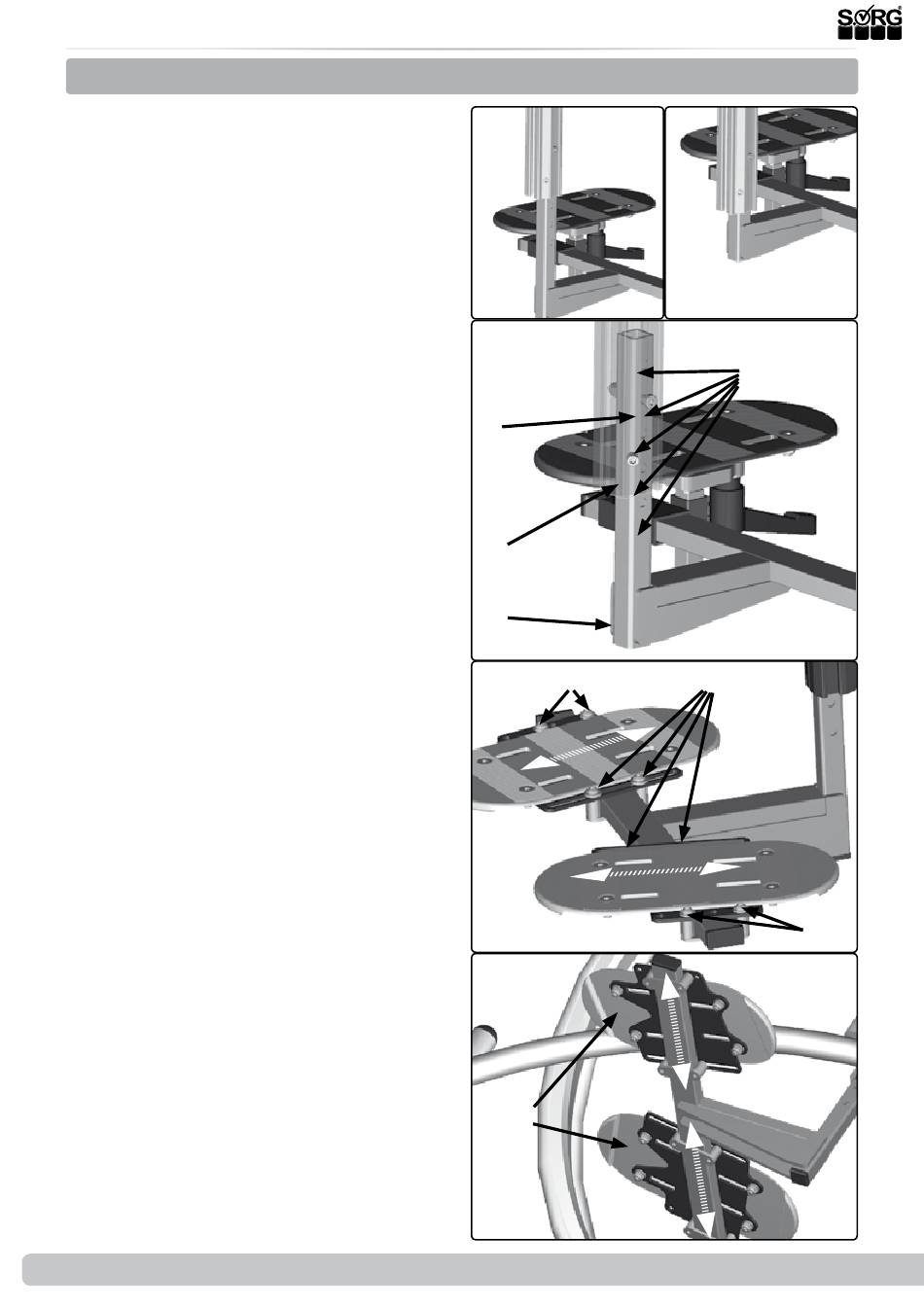

(1+2) With the position of the foot plate
holder, the distance between foot plates and
the top of the hand rim can be set.
The foot plates can be shifted independently
from one another forward/backward, abducted
in the distance to the centre column and
additionally can be turned inward or outward
on the foot plate holder independently.
For all adjustment work on the foot plates,
remove the driving wheels first and secure the
mobile standing device with the wheel locks of
the back casters from rolling away.
Setting the height of the foot plate holder
(3) To adjust the height of the foot plate holder
(A):
Loosen the set screw (B)
and remove the screw (C).
Move the foot plate holder (A) in the
centre column (D) along the drilled
holes (E).
Place the screw (C) back in and tighten
it.
Retighten the set screw (B).
Replace the wheels.
Positioning the standard foot plates
(4) Zum Anpassen der Position nach vorne/hin-
ten:
Loosen the four screws (A).
Remove the four screws (B) and move
the foot plates (C) forward or backward
to the desired measuremen.
Replace the four screws (B) and
retighten all eight screws (A+B).
Abducting the standard foot plates
(4) To abduct:
Loosen the screws (A+B).
(5) Move the foot plates (C) to the desi-
red position,
retighten all screws.
Turning the standard foot plates horizontally
(4) To turn:
Loosen all eight screws (A+B) and turn
the foot plates (C) to the desired posi-
tion.
Retighten all eight screws (A+B).
14 of 36
(1)
(3)
(C)
(B)
(A)
(4)
(C)
(5)
(C)
Service Record Boogie Drive
(2)
(D)
(A)
(A)
(C)
(E)
(A)
2019-07-16
