Truss Pad With Crank And Swivel Bracket - SORG Boogie Drive Service Record

3.7 Assembly Group Posterior truss pad

3.7.3 Truss pad with crank and swivel bracket

The posterior truss pad must have been set to the individual measurements of the child/
adolescent as exact as possible before the first use of the mobile standing device. When the
user is standing in the mobile standing device, only fine adjustments are then allowed to be
made

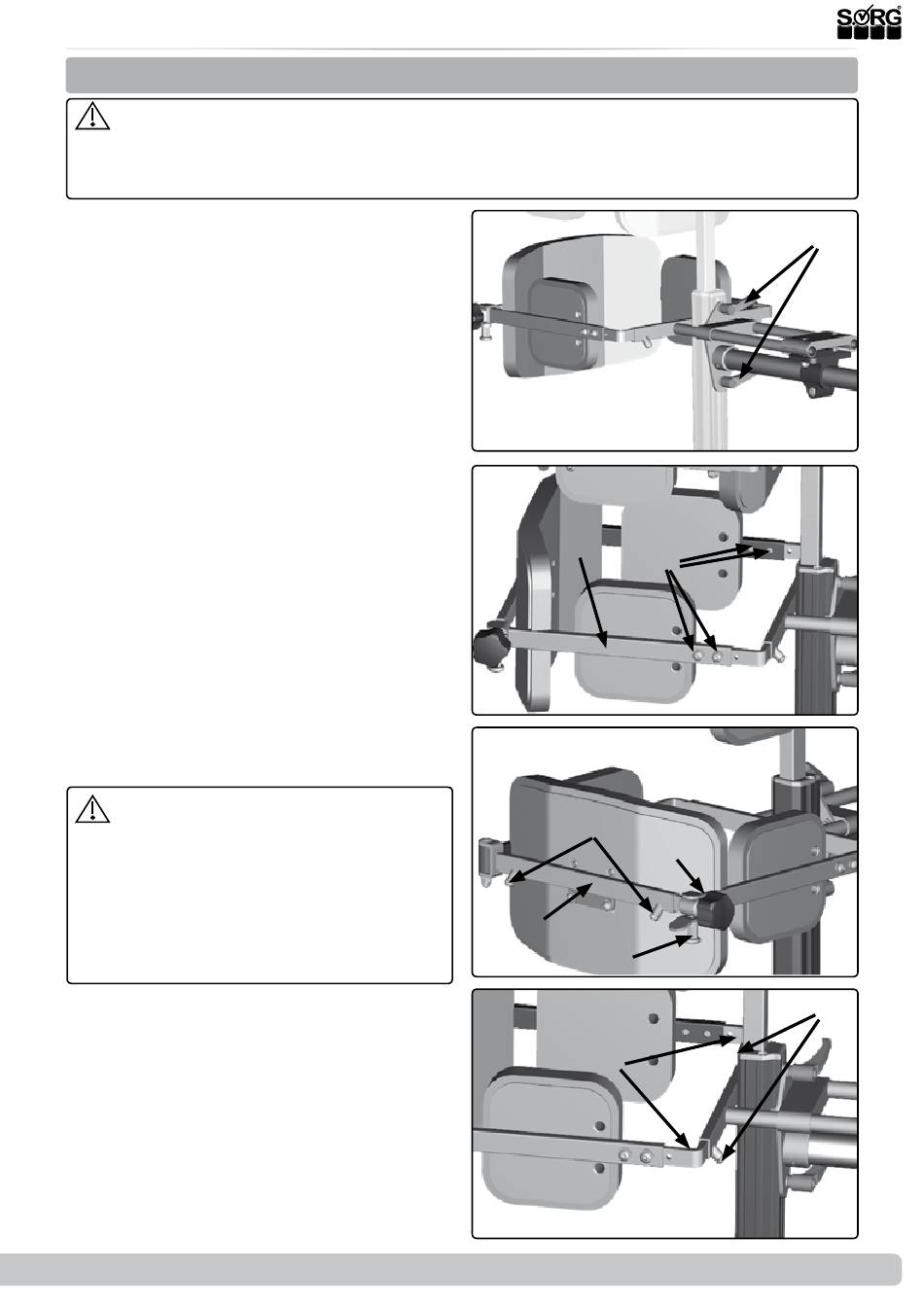

(1) To adjust the height:
• Loosen both clamp levers (A),
• move the whole posterior truss pad to
the desired height,
• retighten the clamp levers (A).
(2) To adjust the depth:
• Remove all four screws (A),
• move the pillar (B) in the alternative drill
holes and
• screw all four screws (A) back on tightly.
To adjust the width:
• (3) Loosen both set screws (C) on the
back.
• (4) Loosen both set screws (E) on the
front.
• (4) Telescope both holders (F) in front
to the desired width.
• (3) Telescope the rod (D) to the same
width.
• (4) Retighten both set screws (E) on the
front.
• (3) Retighten both set screws (C) on the
back.
• Be sure that the rod (D) is secure and
cannot move around.
Crucial for the tight and reliable lock
without play of the posterior truss pad is
the star knob screw. In both designs of the
posterior truss pads, the star knob screw
must be closed tightly. the latch alone is not
enough for stabilizing! Without a firm fit of
the star knob screw, the mobile standing
device is not useable.
2019-07-16
(1)
(2)
(3)
(4)
Service Record Boogie Drive
(B)
(A)
(C)
(A)
(D)
(B)
(F)
(A)
(E)
21 of 36
