8. Appendix A SF_Capture

SF_Capture is a software program for use with this reader. Contact your dealer for a copy of the
program. To install drivers, refer to Section 2.3.2.1 External Output.
Install the program by double clicking on the setup.exe file found in the SF_Capture folder. The
installation process is the same as other software – follow the prompts until it is done.
Power on the instrument, connect the serial port to USB cable from the reader to the PC. Verify
that External Export has been switched to ON from the instrument's Settings menu
NOTE: An installation of drivers will need to be done the first time SF_Capture is installed
on a PC.
Once the cable connection is made between the reader and the PC, Windows
message box stating that the VNC1-A As Slave is not installed and that drivers will need to be
found.
Correct response is to let Windows
First, it will search for and install USB Serial Converter driver(s).
The cables can be connected and the instrument's power up can be done in any sequence. If the
instrument is OFF, but SF_Capture is open and the cable is connected to the instrument, select
ReConnect.

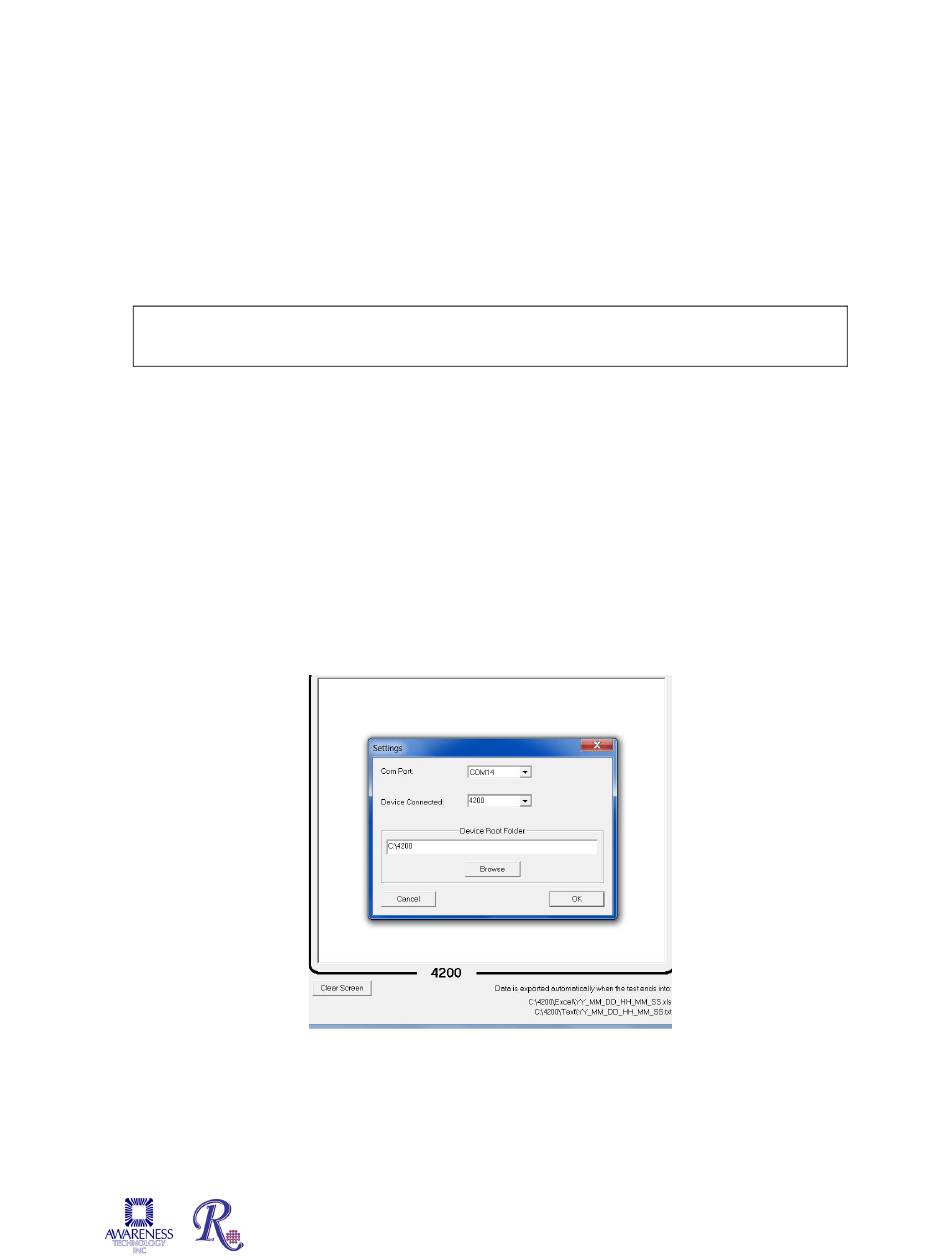

Select Settings. This will open a dialog box where you select the instrument type and the COM
port connected to on the PC side
Data is exported to Excel, to Notepad and to a Log file each time QUIT/Test Ended occurs.
The default location for these files is C:\4200. This can be changed from the default by using the
Browse option for the Device Root Folder.
