Load Paper - Awareness Technology Stat Fax 4200 Operator's Manual

Power Cord
Requirements

1.5.3 Load Paper

A

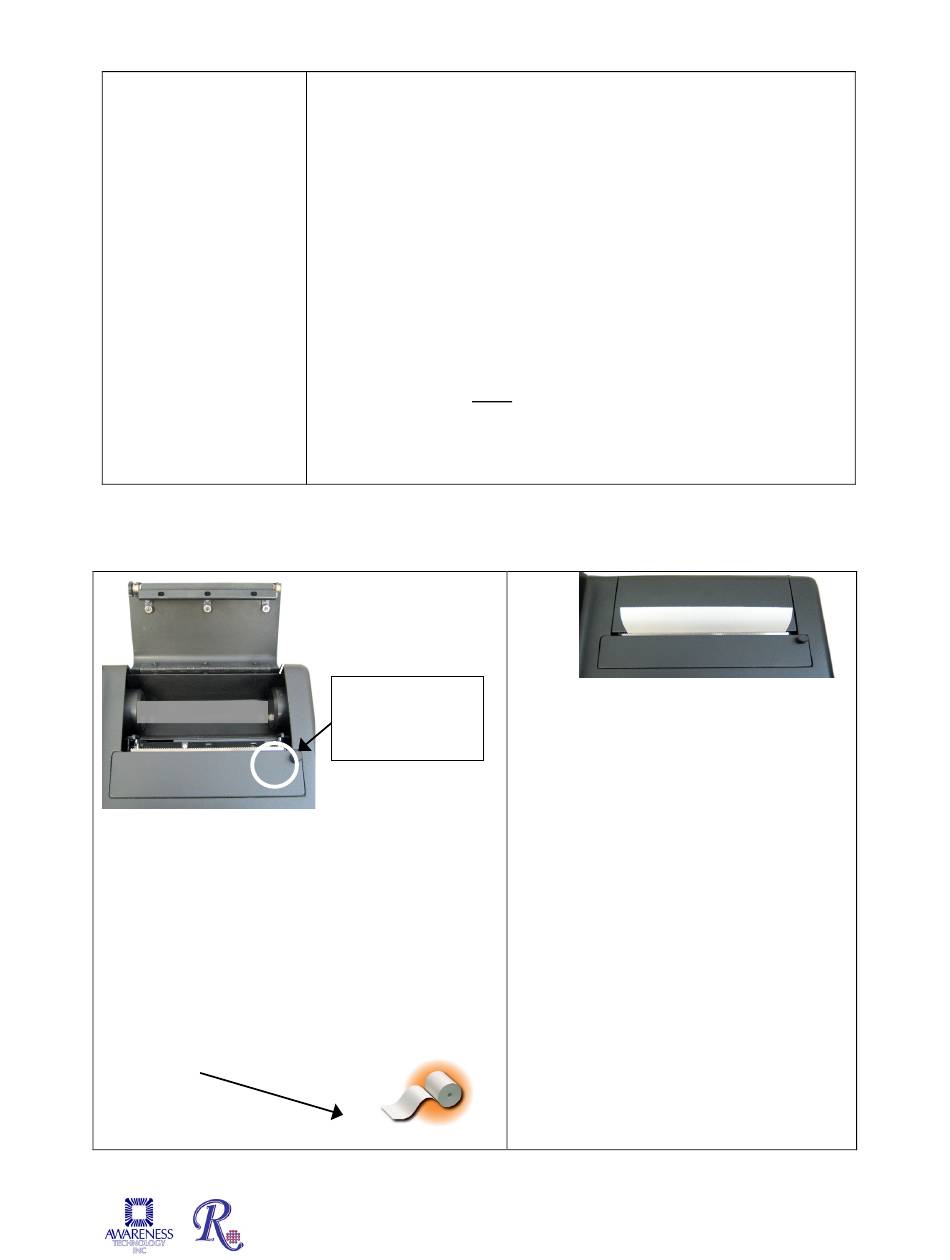

Figure 1.5.3-1 Paper compartment lid
Locate the roll of thermal printer paper P/N
150003.
Press down on the printer paper compartment
release button (A) and the paper compartment lid
will open.
Place the paper roll in the well such that the
leading edge of the paper feeds upward from the
front of the printer as shown.
Stat Fax
With the power switch in the OFF [down] position, insert the DC
connector attached to the end of the power supply module cable to
the instrument. Insert the mating end of the AC power cord to the
inlet of the power supply module, and plug the other end of the AC
power cord into an AC outlet. Use only the power cord and supply
module specified for this product and certified for the country of
use.
For 110-120 V used in the United States, use a UL listed cord set
consisting of an 18 AWG, Type SPT-1 two conductor cord
maximum 3 meters (10 feet) in length, rated 7 A, 125 V, with a
polarized parallel blade type attachment plug.
For 220-240 V used inside the United States, use a UL listed cord as
above, except rated 250V.
For other locations, use the power cord certified for the country of
use.
Printer paper
compartment
release button
® 4200 Operator's Manual Doc. 4200 Rev. K
Figure 1.5.3-2 Printer paper installed
Pull up at least 1 inch of paper and then
press the compartment cover down until it
snaps closed. Turn the power switch OFF
and back ON. The wake up routine will
follow. The printer will print several lines.
Wait until it has stopped. If there is no
printing, the internal printer is disabled
(reference Section 2.3.2 Settings).
NOTE: The printer manufacturer strongly
recommends the use of thermal paper
part number 150003 to reduce lint and
extend printer life. Contact your dealer for
replacement rolls.
9
