2.5.4.2 – Editing a Curve
When Duplicate Standards are used, the curve may be edited by deleting one of any pair
of standards. For Point to Point and Regression Modes, the minimum is two; for Cubic
Spline Mode, the minimum is three.
Once the curve has been read, select the 'Edit' option before the 'Accept' or 'Print'
options. Using the stylus, select the duplicate standard to be deleted

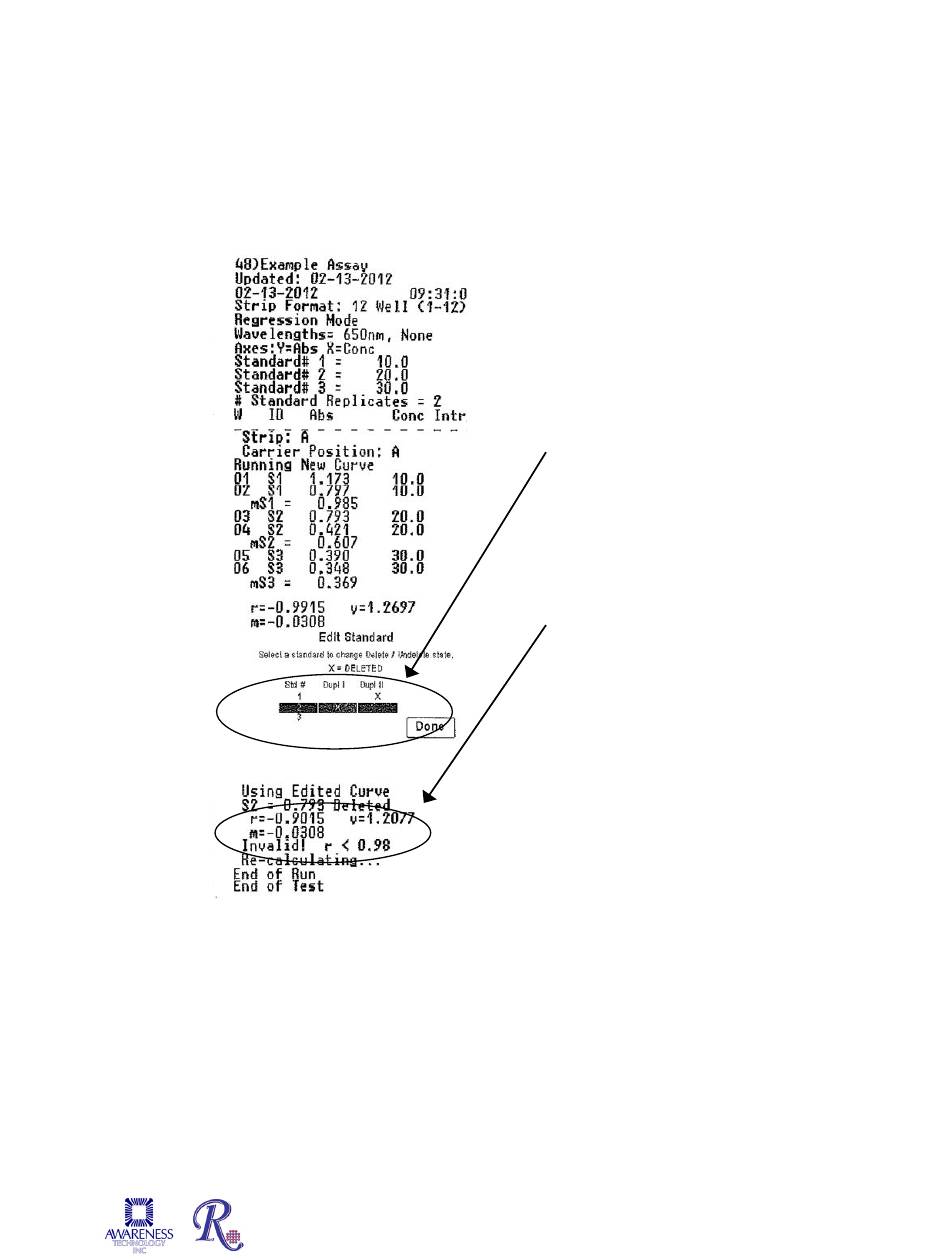

Example of editing a curve with Duplicate Standards
As shown in the example below, Duplicate Standards are labeled as 'Dupl I' and 'Dupl II'.
Stat Fax
®
4200 Operator's Manual Doc. 4200 Rev. K
.
An "X" will appear in the
location on the display
that is to be deleted.
The curve will be
recalculated and the
options to Accept, Edit,
Print or Quit will be
available.
39
