OptiBean (XL)

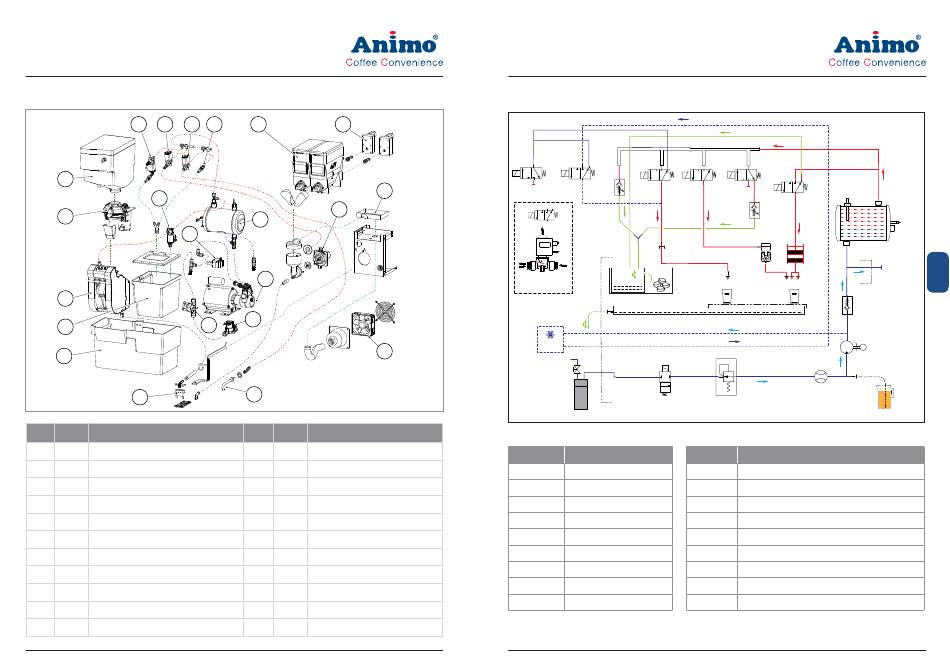

1. PRINCIPLES OF OPERATION

6 7 8
5
16
4
15
3
14
2
1
22
Item Description
1. Coffee waste bin
2. Drainage reservoir
3. BM1 Espresso group
4. IM1 Coffee grinder
5. Coffee bean canister
6. DV7 Expansion water valve + OPV 3 bar 17.
7. DV2 Mixer valve 3/2 way
8. DV4 Hot water valve 3/2 way
9. OPV2 Pressure relief valve 12 bar
10. Instant canisters
11. H2-3 Pressure boiler
9
10 17
18
19
11
12
13
20
21
Item Description
12. KW2 Pump 10 bar
13. KW1 Inlet valve
14. PR Pressure reducer 2 bar
15. FL1 Flow meter
16. DV1 Brewer valve
IM2-3 Canister drive motor
18. Cassette moisture extraction
19. MM2 Mixer system
20. Fan
21. Hot water outlet
22. Coffee / Drink outlet
6
OptiBean (XL)

1.1 Water management

2 KW3 1
Venting
1 3
1 3
2
3
2 1
Connection against
flow direction
Drip tray drainage.
Optional cold
water unit
*
HOT & COLD
Water supply
Main tap
Calcium &
carbon
cartrige
Code Description
WF Water ¿ lter
KW1 Inlet valve
PR Pressure reducer 2 bar
FL1 Flow meter
KW2 Pump 10 bar
NRV Non-return valve
H2-3 Pressure boiler
T2 NTC sensor
DV1 Brewer valve 3/2 way
2013/08 Rev. 0.5 2013/08 Rev. 0.5
DV4 DV2 DV6
3 1 3 1 3 2
2 OPV2
2 2 1 3
12 bar
Cold Hot
water water
(Optional)
Chocolate / Topping
Mixer
MM 2
Hot (& Cold)
water outlet
Drainage Coffee palets
reservoir wast bin
PR
KW1
3/4 "
3/8 "
WF
Inlet valve
Pressure reducing
valve 2 bar
Code Description
DV2 Mixer valve 3/2 way
DV4 Hot water valve 3/2 way
DV6 Water expansion valve 3/2 way
KW3 Cold water valve ( H&C optional)
OPV1 Pressure relief valve 3 bar water expansion
OPV2 Pressure relief valve 12 bar
BM1 Espresso group
MM2 Mixer system
Venting Venting valve 3/2 way (H&C optional)
7
DV1
3
1
NTC sensor
2 T2
OPV1
3 bar
H2-3
Boiler
Coffee
Ø 37mm
Brewer
BM1 Drain boiler &
manometer GB
Coffee
Mixer
outlet outlet
NRV
Non return valve
Pump
KW2
M
FL1 De-scaler inlet
for boiler
Flowmeter
