1.6.5 Advanced recipe settings

Before changing the advanced recipe settings (service menu 2.3) you should ¿ rst know how the
various parts such as valves, coffee grinder, ingredient motors and mixers work together, see Section
3.5 Timeline recipe settings.
Keep to the following guidelines:
Unit sequence means: Coffee with milk: Unit 1-2 first coffee (unit 1) then milk (unit 2).
Cappuccino and/or Latte macchiato: Unit 2-1 first milk (unit 2) then espresso (unit 1).
Ingredient dispensing times are set in seconds (steps of 0.01 sec.)
All parameters (water and ingredients such as topping and cocoa) are based on a 100 ml drink
and converted automatically in the programme to the cup volume as set in 1.4 Quick recipe / 2.1
Quick recipe pro 2) and 2.2 Key settings.
Note: The coffee measurement (coffee grinder) is not linked to the cup volume setting.
When a drink consists of DV1 and DV2, the sum of these water quantities must always be 100 ml.
A rinse parameter is used to ensure that the mixer is properly rinsed after the mixers is almost
empty a small amount of hot water is dispensed to the mixer so that it is clean as possible on
completion. A realistic rinse value is 8 ml. Note; this does not have to be deducted from the water
quantity. The programme calculates this automatically! Example: set parameter DV2 = 100 ml,
Rinse 2 = 8 ml --> Programme carries out action as follows: DV2 = 92 ml, Rinse 2 = 8 ml

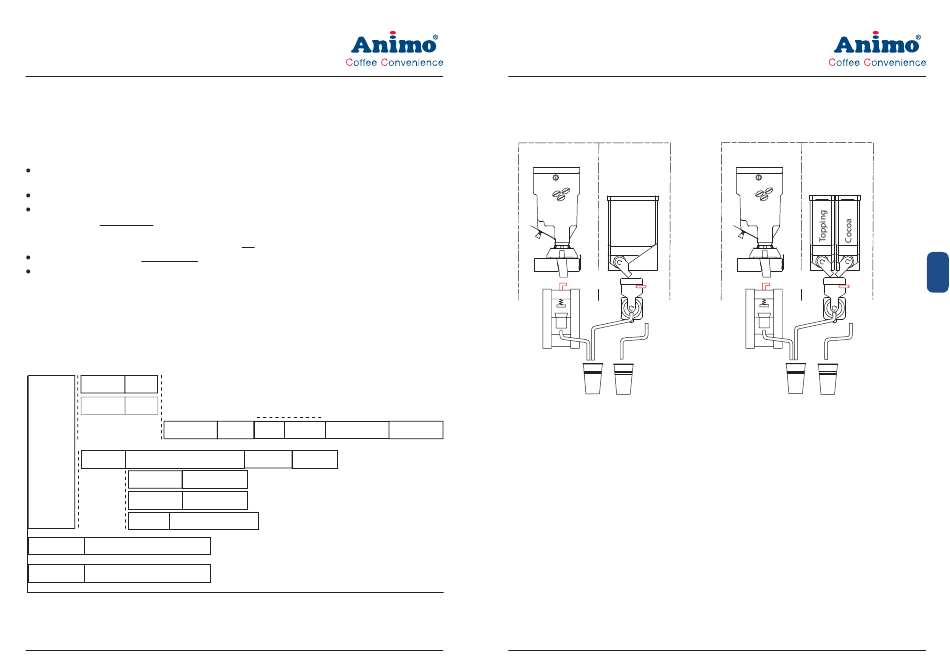

1.6.6 Time line recipe settings

Coffee WT Coffee
IM 2 WT IM 2
Brewer WT 1
Unit 1
Unit
Sequence
DV 2 WT DV 2
Topping WT Topping
Cocoa WT Cocoa
Unit 2 Mixer WT Mixer 2
DV 4 WT DV 4
KW 3 WT KW 3
Pre-infusie
DV 1WT PI time PI pause DV 1 Brewer WT 2
Rinse 2 WT Rinse 2
Hot water
Cold water (option)
34 2013/08 Rev. 0.5
OptiBean (XL)
OptiBean 2 (XL)
Unit 2
Unit1
Coffee Topping
DV 1 DV 2
Brewer
Mixer 2
DV 4 Hot water
KW 3 Cold water
2013/08 Rev. 0.5
OptiBean 3 (XL)
Unit1 Unit 2
Coffee
DV 1 DV 2
Mixer 2
Brewer
DV 4 Hot water
KW 3 Colf water
