OptiBean (XL)

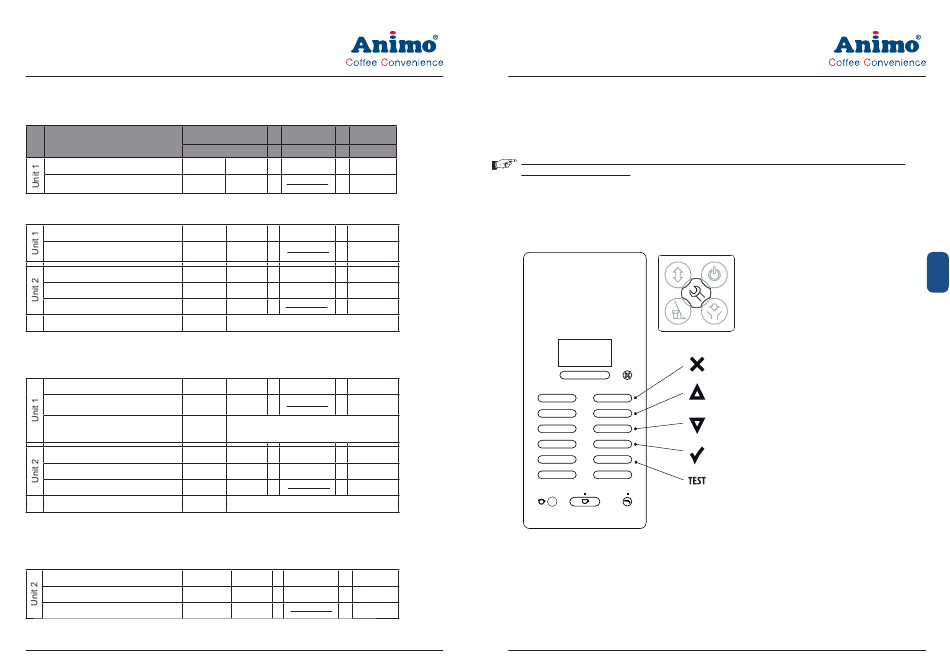

1.6.7 Calculation examples

Coffee recipe
Drink parameter x variable
basic recipe 100ml
Dispensing valve brewer DV1
Coffee dispensing time Coffee
Cappuccino recipe
Dispensing valve brewer DV1
Coffee dispensing time Coffee
Dispensing valve mixer 2 DV2
Topping dispensing time Topping
Mixer 2 time Mixer 2
Unit sequence Unit 2-1
* Ratio of water to brewer / mixer = 42/58 can be adjusted as desired
Latte Macchiato recipe
Dispensing valve brewer DV1
Coffee dispensing time Coffee
Pressure WT 1 10,5
Dispensing valve mixer 2 DV2
Topping dispensing time Topping
Mixer 2 time Mixer 2
Unit sequence Unit 2-1
* Ratio of water to brewer / mixer = 42/58 can be adjusted as desired
Chocolate recipe
Dispensing valve mixer 2 DV2
Chocolate dispensing time Chocolate 3,0 sec. x 1,5 (150ml) = 4,5 sec.
Mixer 2 time Mixer 2
= result
Cup volume
100 ml x 1,2 (120ml) = 120 ml
1,40sec. 1,40 sec.
42 ml * x 1,2 (120ml) = 50,4 ml
1,43sec. 1,43 sec.
58 ml * x 1,2 (120ml) = 69,6 ml.
2,6 sec. x 1,2 (120ml) = 3,12 sec.
4,5 sec. 4,5 sec.
First Coffee (unit 2) than Milk (unit 1)
42 ml * x 1,2 (120ml) = 50,4 ml
1,43sec. 1,43 sec.
Waiting time (Delay time) between
Topping (unit 2) and Coffee (unit 1)
58 ml * x 1,2 (120ml) = 69,6 ml.
3,0 sec. x 1,2 (120ml) = 3,6 sec.
4,5 sec. 4,5 sec.
First Coffee (unit 2) than Milk (unit 1)
100 ml x 1,5 (150ml) = 150ml
9,5 sec. = 9,0 sec.
36 2013/08 Rev. 0.5
OptiBean (XL)

2. MENU STRUCTURE

2.1 The operator / service menu

Most of the settings, including the product settings are secured by a PIN code. This PIN code is
intended to prevent the user accessing the service menu.
It is recommended not to leave this document with the user after installation and to change the
standard factory PIN code.
This chapter describes the various settings that can be changed by trained, authorised service
personnel. How you gain access to the service menu is described below. Once in the service menu,
the control panel has the following functions:
STOP
START START
2013/08 Rev. 0.5
Escape (return without changing)
Previous (menu item / increase value)
Next (menu item / decrease value)
Enter (accept menu option)
Test (test button for hardware test)
37
