OptiBean (XL)
2.2 Button settings <Recipe name>
First program the desired recipes under each key on the control panel. Which recipes are
factory-set can be found in the table on page ??. The same table also indicates which
additional recipes are available in the software.
2.1 Quick recipe Pro <Recipe name>
The Coffee(bean) setting is the real grinding time from the grinder in seconds.
This setting is not linked to the cup volume setting.
The Topping and Cocoa setting is a dispensing time in seconds for a 100ml drink.
When increasing the cup volume the Topping and/or Cocoa dispensing will be automatically
proportional increased (not visible in the display).
See chapter 1.6.1 how to check the weight
Run the cleaning program (without cleaning tablet) to reset
the cleaning message
(set)
Cup volume (ml) (set)
Coffee (sec.)
Topping (sec.)
Cocoa (sec.)
QMBDF DVQ QMBDF DVQ
$MFBOJOH
28 2013/08 Rev. 0.5
OptiBean (XL)

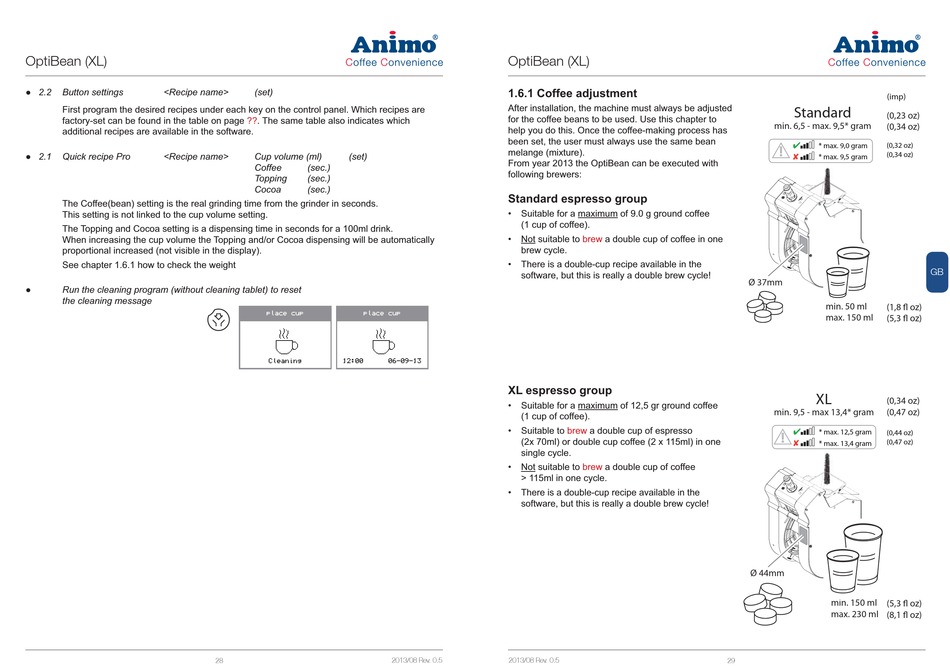

1.6.1 Coffee adjustment

After installation, the machine must always be adjusted
for the coffee beans to be used. Use this chapter to
help you do this. Once the coffee-making process has
been set, the user must always use the same bean
melange (mixture).
From year 2013 the OptiBean can be executed with
following brewers:

Standard espresso group

• Suitable for a maximum of 9.0 g ground coffee
(1 cup of coffee).
• Not suitable to brew a double cup of coffee in one
brew cycle.
• There is a double-cup recipe available in the
software, but this is really a double brew cycle!

XL espresso group

• Suitable for a maximum of 12,5 gr ground coffee
(1 cup of coffee).
• Suitable to brew a double cup of espresso
(2x 70ml) or double cup coffee (2 x 115ml) in one
single cycle.
• Not suitable to brew a double cup of coffee
> 115ml in one cycle.
• There is a double-cup recipe available in the
software, but this is really a double brew cycle!
2013/08 Rev. 0.5
(imp)
Standard
(0,23 oz)
min. 6,5 - max. 9,5* gram
(0,34 oz)
* max. 9,0 gram (0,32 oz)
(0,34 oz)
* max. 9,5 gram
Ø 37mm
min. 50 ml
(1,8 fl oz)
max. 150 ml (5,3 fl oz)
XL
(0,34 oz)
min. 9,5 - max 13,4* gram (0,47 oz)
* max. 12,5 gram
(0,44 oz)
(0,47 oz)
* max. 13,4 gram
Ø 44mm
min. 150 ml
(5,3 fl oz)
max. 230 ml
(8,1 fl oz)
