1.4.3 Service life

The service life of the ceramic grinding disks is approximately 3x longer than steel grinding disks. The
service life depends on the type of coffee beans* and is approx. 3,000 kg of coffee beans. With an
average measure of 7.5 g/cup. that makes approx. 400,000 shots (XL=300,000 shots 9.5 g/cup)
When you reach these grind quantities, we advise you to replace the complete grinder. Not only the
grinding disks need to be replaced, but the bearings, carbon brushes and drive belt have also reached
their maximum service life. In case of a damaged grinding disk (due to stones or other foreign objects)
they can be ordered and replaced as a separate set.
* light to dark roast, dry or oily, caramelized
1.4.2 Run in period grinding discs
Tests have shown that new ceramic grinding discs have
a run in period of 10 kg of coffee beans (about 1350 cups
at 7.5 g / XL=1000 cup at 9.5 g.). We recommend to re-
adjust (¿ ner) the grinder after this period.

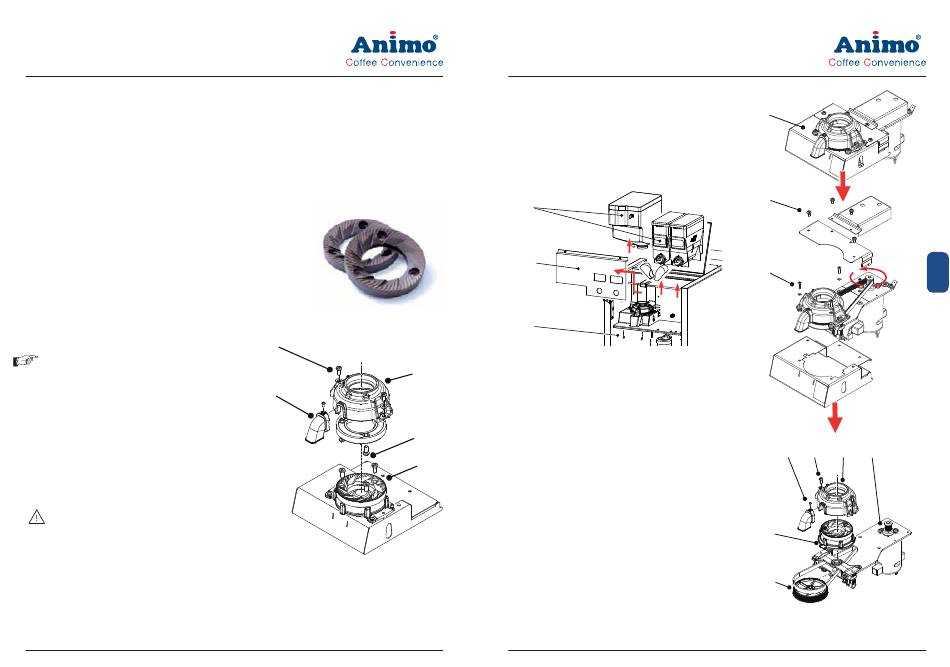

1.4.4 Replacing grinding disks

1. Close the bean canister plug.
2. Hold a beaker under the coffee grinder outlet.
3. Run the grinder until it is empty.
Tip; go to the service menu: 2.7 Hardware test /
Outputs / IM1. Press recipe key 11 until the coffee
grinder is empty (the speed increases).
4. Lift the bean canister off the coffee grinder.
5. Switch the machine off.
6. Loosen the screws [1] and dismantle the grinder
head [2].
7. Remove the grinding disks [5] by loosening the three
screws [4].
8. Thoroughly clean all parts.
9. Fit the new grinding disks in reverse order.
WARNING
• Do not drop the ceramic grinding disks
• The grinding disks must never come into contact
with one another.
• After assembly, adjust the grind ¿ neness.
2
1
20 2013/08 Rev. 0.5
OptiBean (XL)
1.4.5 Replacement drive belt
Coffee grinder housing disassembly
1. Remove the bean- and instant canister [1] and
remove the cover plate [2] behind it.
2. Disconnect the electrical connections to the small
coffee grinder circuit board (via the rear wall).
3. Remove the two screws [3] on the underside of the
housing.
1
2
3
3
Drive belt removal
4. The whole assembly [4] can now be removed from
the machine.
5. Remove the three screws [5] and remove the belt
cover plate.
6. Remove the four screws [6] from the mounting
4
rubbers and remove the coffee grinder with motor
plate.
7. Loosen the screen [7] on the coffee outlet and
5
remove it.
8. Remove the two screws [8] from the grinder
housing [9].
9. Remove the grinder housing [9].
10. Slightly loosen the motor screws [10] so that the
drive belt tension is released.
11. Pull the grinding disk [11] carrier vertically upwards.
12. Remove the belt disk and belt [12] and replace
these parts.
13. Fit the new belt disk and drive belt [12] in reverse
order.
14. Tension the belt disk and re-tighten the motor
screw [10].
2013/08 Rev. 0.5
4
5
2x
6
4x
2x
7
2x
11
12
21
GB
8 9 10
2x
