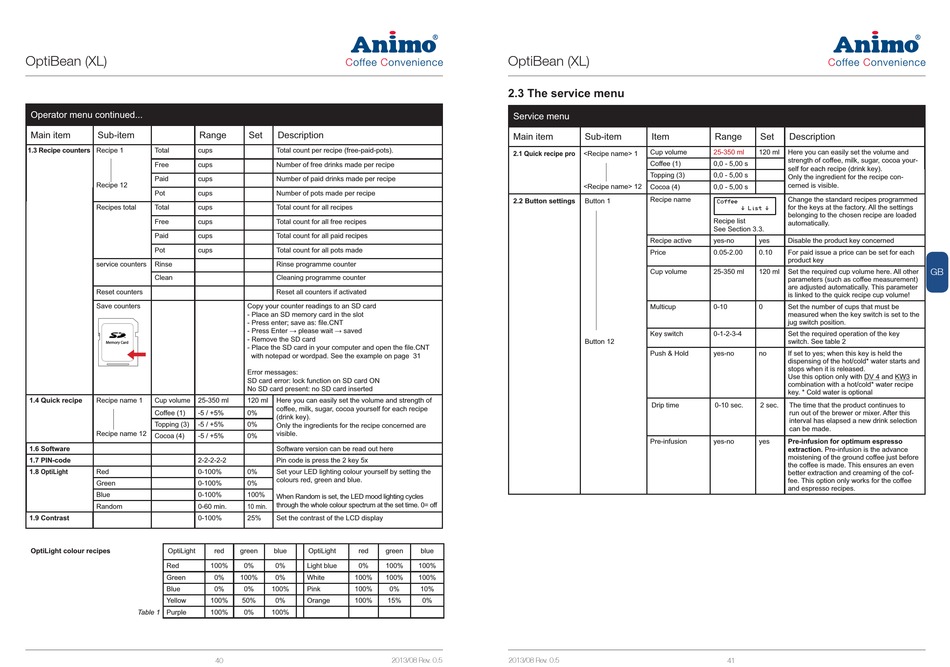

The Service Menu; Quick Recipe Pro [2.1]; Button Settings [2.2] - Animo OptiBean Service Book

OptiBean (XL)
Operator menu continued...
Main item Sub-item Range
1.3 Recipe counters Recipe 1 Total cups
Free cups
Paid cups
Recipe 12
Pot cups
Recipes total Total cups
Free cups
Paid cups
Pot cups
service counters Rinse
Clean
Reset counters
Save counters
Memory Card
1.4 Quick recipe Recipe name 1 Cup volume 25-350 ml
Coffee (1) -5 / +5%
Topping (3) -5 / +5%
Recipe name 12
Cocoa (4) -5 / +5%
1.6 Software
1.7 PIN-code 2-2-2-2-2
1.8 OptiLight Red 0-100%
Green 0-100%
Blue 0-100%
Random 0-60 min.
1.9 Contrast 0-100%
OptiLight colour recipes OptiLight
Red
Green
Blue
Yellow
Table 1 Purple
Set Description
Total count per recipe (free-paid-pots).
Number of free drinks made per recipe
Number of paid drinks made per recipe
Number of pots made per recipe
Total count for all recipes
Total count for all free recipes
Total count for all paid recipes
Total count for all pots made
Rinse programme counter
Cleaning programme counter
Reset all counters if activated
Copy your counter readings to an SD card
- Place an SD memory card in the slot
- Press enter; save as: ¿ le.CNT
- Press Enter please wait saved
- Remove the SD card
- Place the SD card in your computer and open the ¿ le.CNT
with notepad or wordpad. See the example on page 31
Error messages:
SD card error: lock function on SD card ON
No SD card present: no SD card inserted
120 ml Here you can easily set the volume and strength of
coffee, milk, sugar, cocoa yourself for each recipe
0%
(drink key).
0%
Only the ingredients for the recipe concerned are
visible.
0%
Software version can be read out here
Pin code is press the 2 key 5x
0% Set your LED lighting colour yourself by setting the
colours red, green and blue.
0%
100%
When Random is set, the LED mood lighting cycles
through the whole colour spectrum at the set time. 0= off
10 min.
25% Set the contrast of the LCD display
red green blue OptiLight red green
100% 0% 0% Light blue 0% 100%
0% 100% 0% White 100% 100%
0% 0% 100% Pink 100% 0%
100% 50% 0% Orange 100% 15%
100% 0% 100%
40
OptiBean (XL)

2.3 The service menu

Service menu
Main item
2.1 Quick recipe pro
2.2 Button settings
blue
100%
100%
10%
0%
2013/08 Rev. 0.5 2013/08 Rev. 0.5
Sub-item Item Range Set
Cup volume 25-350 ml 120 ml
<Recipe name> 1
Coffee (1) 0,0 - 5,00 s
Topping (3) 0,0 - 5,00 s
<Recipe name> 12 Cocoa (4) 0,0 - 5,00 s
Recipe name
Button 1 $PGGFF
 -JTU 
Recipe list
See Section 3.3.
Recipe active yes-no yes
Price 0.05-2.00 0.10
Cup volume 25-350 ml 120 ml
Multicup 0-10 0
Key switch 0-1-2-3-4
Button 12
Push & Hold yes-no no
Drip time 0-10 sec. 2 sec.
Pre-infusion yes-no yes
41
Description
Here you can easily set the volume and
strength of coffee, milk, sugar, cocoa your-
self for each recipe (drink key).
Only the ingredient for the recipe con-
cerned is visible.
Change the standard recipes programmed
for the keys at the factory. All the settings
belonging to the chosen recipe are loaded
automatically.
Disable the product key concerned
For paid issue a price can be set for each
product key
GB
Set the required cup volume here. All other
parameters (such as coffee measurement)
are adjusted automatically. This parameter
is linked to the quick recipe cup volume!
Set the number of cups that must be
measured when the key switch is set to the
jug switch position.
Set the required operation of the key
switch. See table 2
If set to yes; when this key is held the
dispensing of the hot/cold* water starts and
stops when it is released.
Use this option only with DV 4 and KW3 in
combination with a hot/cold* water recipe
key. * Cold water is optional
The time that the product continues to
run out of the brewer or mixer. After this
interval has elapsed a new drink selection
can be made.
Pre-infusion for optimum espresso
extraction. Pre-infusion is the advance
moistening of the ground coffee just before
the coffee is made. This ensures an even
better extraction and creaming of the cof-
fee. This option only works for the coffee
and espresso recipes.
