OptiBean

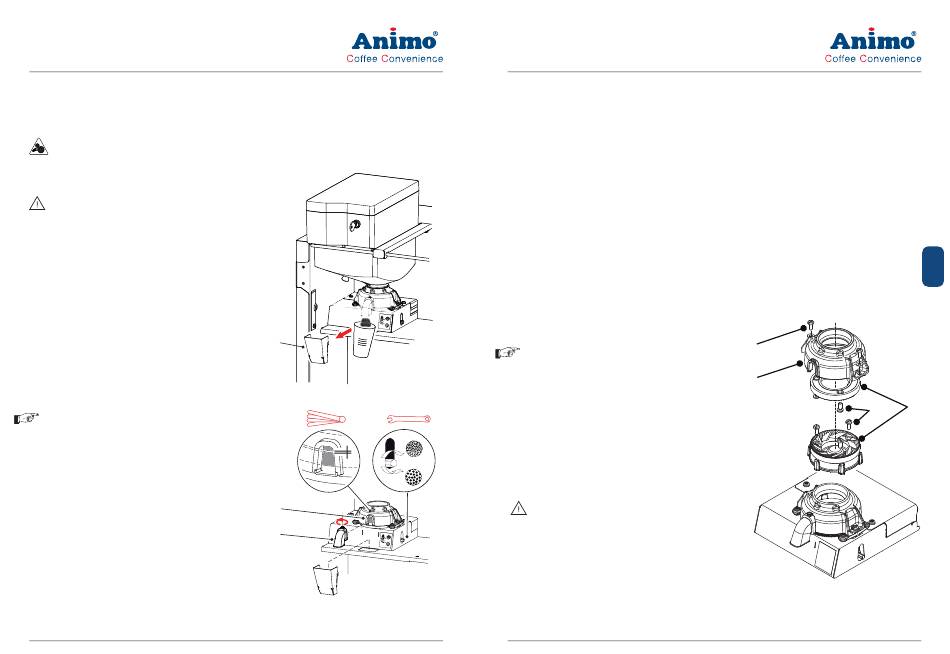

1.4.1 Basic adjustment
The coffee grinder is factory set for an average grind
fi neness.
WARNING
• Keep your fingers away from the grinding
mechanism when the machine is in operation.
WARNING
• If there is a sound of two stones rubbing against
each other, make the grind coarser.
• The grinding disks must never come into contact
with one another.
• The grind fineness and grind capacity depends on
the type of coffee beans and the roasting.
• Always adjust the coffee grinder from coarse to fine
with the grinder running or empty. Adjusting from
fine to coarse can be done when the grinder is
stationary.
1. Close the bean canister plug.
2. Remove the stainless steel coffee guide [1].
3. Hold a beaker under the coffee grinder outlet and
run the grinder until it is empty.
Tip; go to the service menu: 2.7 Hardware test /
Outputs / IM1 Press recipe key 11 until
the coffee grinder is empty (the speed increases).
5. Unscrew the black plastic coffee outlet [2] on the
grinder.
6. Set the distance between the grinding disks [3] so
that a 0.30 / 0.35 mm feeler gauge fits between
them.
7. After adjusting the grind fineness, carefully check
the operation of the brewer, see Section 2.0
Adjust the grind fineness as necessary!
1
0,3 - 0,35mm
3
2
20 2011/06 Rev. 0.4
OptiBean

1.4.2 Service life

The service life of the ceramic grinding disks is
approximately 3x longer than steel grinding disks. The
service life depends on the type of coffee beans* and
is approx. 3,000 kg of coffee beans. With an average
measure of 7.5 g/sec. that makes approx. 400,000
shots.
When you reach these grind quantities, we advise
you to replace the complete grinder. Not only do
the grinding disks need replacing, but the bearings,
carbon brushes and drive belt have also reached their
maximum service life. In case of a damaged grinding
disk (due to stones or other foreign objects) they can be
ordered and replaced as a separate set.
* light to dark roast, dry or oily, caramelized
1.4.3 Grinding disk replacement
1. Close the bean canister plug.
2. Hold a beaker under the coffee grinder outlet.
3. Run the grinder until it is empty.
Tip; go to the service menu: 2.7 Hardware test /
Outputs / IM1. Press recipe key 11 until
the coffee grinder is empty (the speed increases).
4. Lift the bean canister off the coffee grinder.
5. Switch the machine off.
6. Loosen the screws [1] and dismantle the grinder
head [2].
7. Remove the grinding disks [4] by loosening the three
screws [3].
8. Thoroughly clean all parts.
9. Fit the new grinding disks in reverse order.
WARNING
• Do not drop the ceramic grinding disks
• The grinding disks must never come into contact
with one another.
• After assembly, adjust the grind fi neness.
2011/06 Rev. 0.4
1
2
3
21
GB
4
