Terminal Locations - Frame Size F - Danfoss VLT AQUA Instruction

VLT AQUA Low Harmonic Drive Instruction
Manual
NOTE!
Power connections can be made to positions A or B

4.3.7 Terminal Locations - Frame size F

Terminal locations - Filter

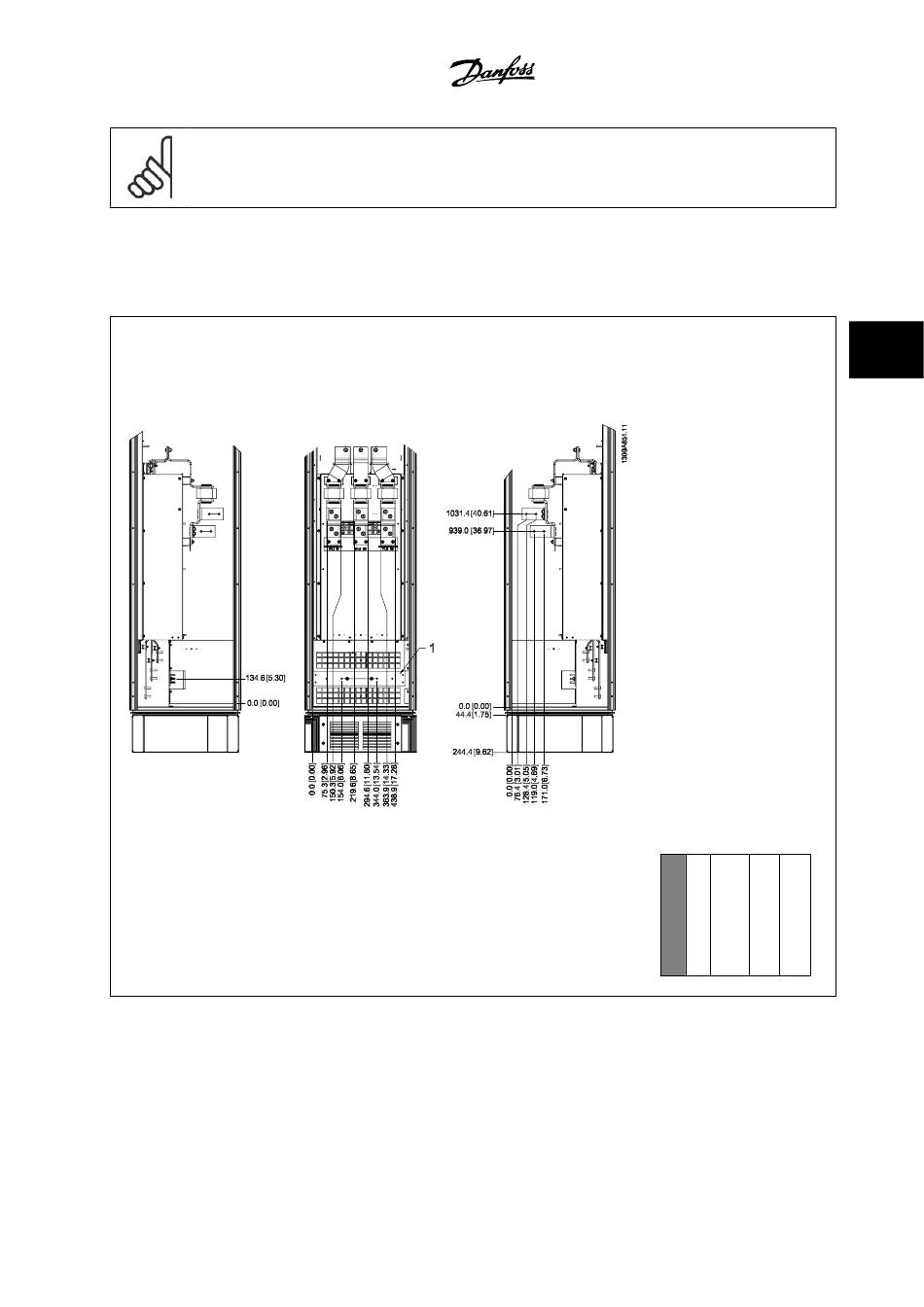

Figure 4.17: Terminal locations - Filter (left side, front and right side view). The connector plate is 1.65 in
[42 mm] below .0 level.
1) Ground bar
®
MG.20.T1.22 - VLT is a registered Danfoss trademark
4 How to Install
Section shown
↓
