4.2.4 Lifting

Always lift the adjustable frequency drive using the dedicated lifting holes. For all D and E frames, use a bar to avoid bending the lifting holes of the
adjustable frequency drive.

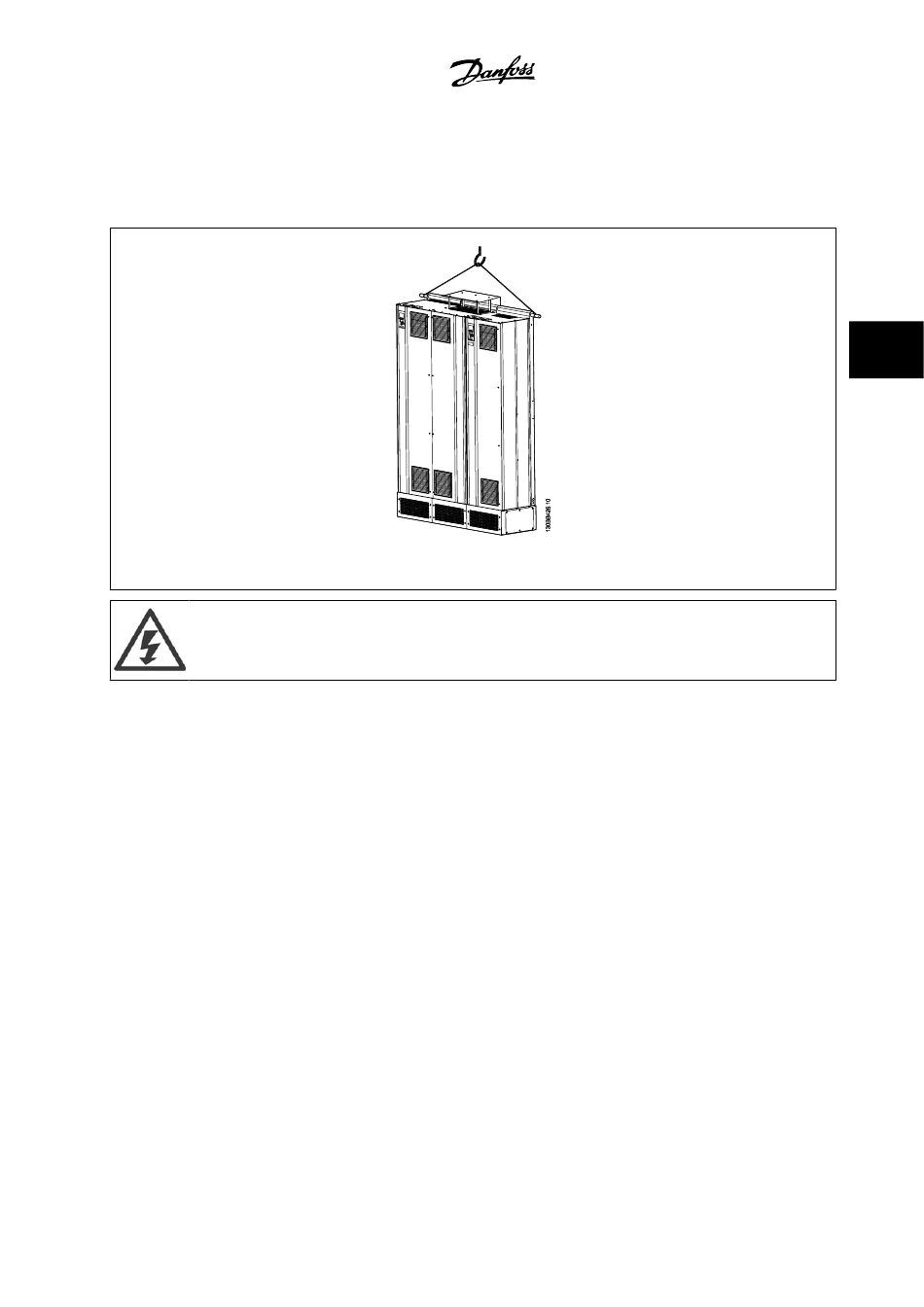

Figure 4.2: Recommended lifting method, frame sizes D and E.
The lifting bar must be able to handle the weight of the adjustable frequency drive. See
different frame sizes. Maximum diameter for bar is 1 in [2.5 cm]. The angle from the top of the drive to the lifting cable should be
60° or greater.
®
