6 How to Program the Low Harmonic Drive
6.1.2 Quick Menu Mode
The GLCP provides access to all parameters listed under the Quick Menus. To set parameters using the [Quick Menu] button:
Pressing [Quick Menu] the list indicates the different areas contained in the quick menu.
Efficient parameter set-up for water applications
The parameters can easily be set up for the vast majority of the water and wastewater applications only by using the [Quick Menu].
The best way to set parameters using the [Quick Menu] is by following the steps below:
1. Press [Quick Set-up] for selecting basic motor settings, ramp times, etc.
2. Press [Function Set-ups] for setting up the required functionality of the adjustable frequency drive - if not already covered by the settings in
[Quick Set-up].
3. Choose between
It is recommended to do the set-up in the order listed.
6

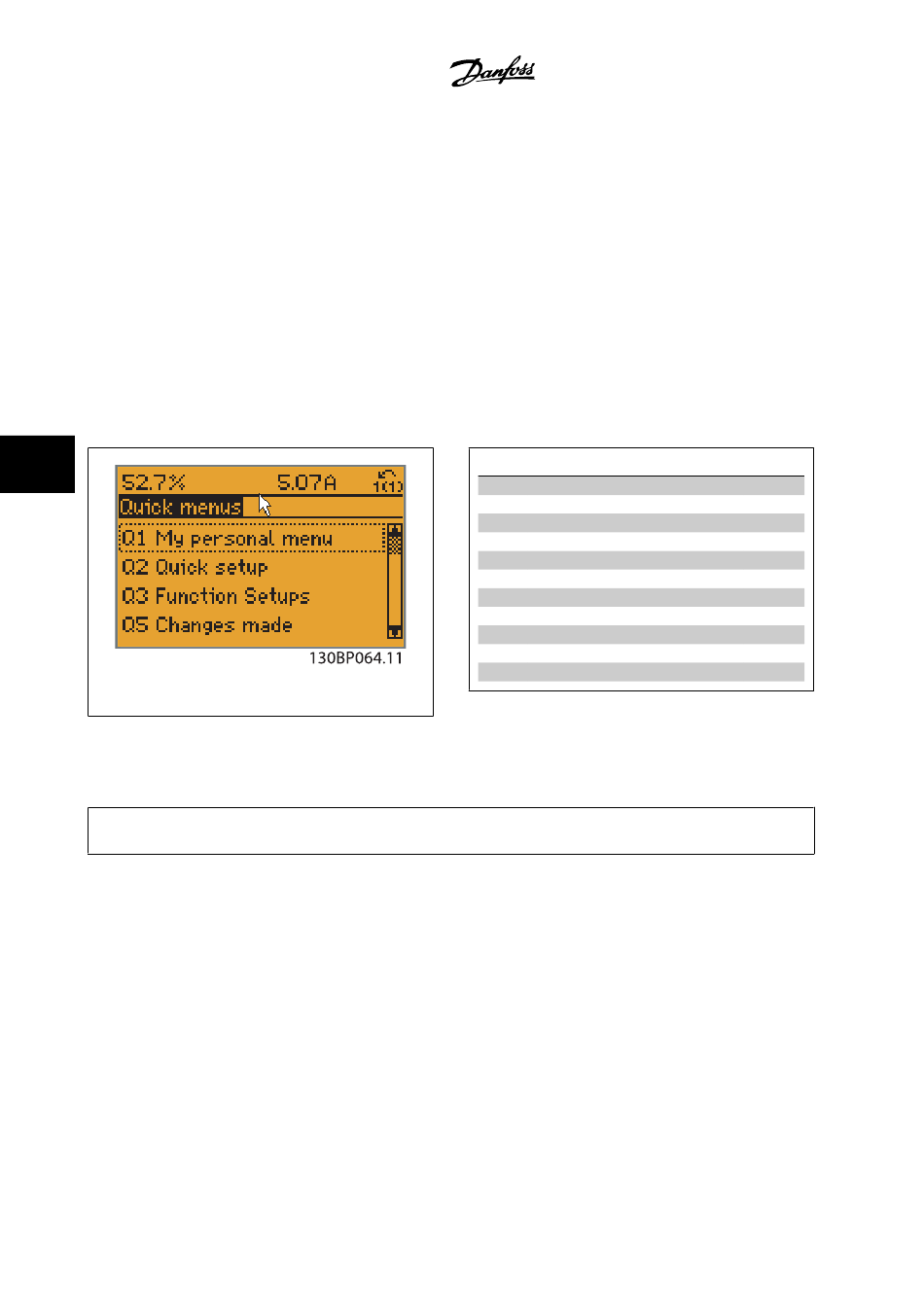

Figure 6.1: Quick Menu view.
If No Operation is selected in terminal 27, no connection to +24 V on terminal 27 is necessary to enable start.
Coast Inverse
If (factory default value) is selected in Terminal 27, a connection to +24V is necessary to enable start.
NOTE!
For detailed parameter descriptions, please see the following section on
6-2
General Settings, Open-loop Settings
MG.20.T1.22 - VLT
VLT AQUA Low Harmonic Drive Instruction
Closed-loop Settings
and .
Par. Designation
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
3-41 Ramp 1 Ramp-up Time
3-42 Ramp 1 Ramp-down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
1-29 Automatic Motor Adaptation (AMA)
Table 6.2: Quick Set-up parameters. Please see section
Parameters - Explanations
Commonly Used Parameters - Explanations
®
