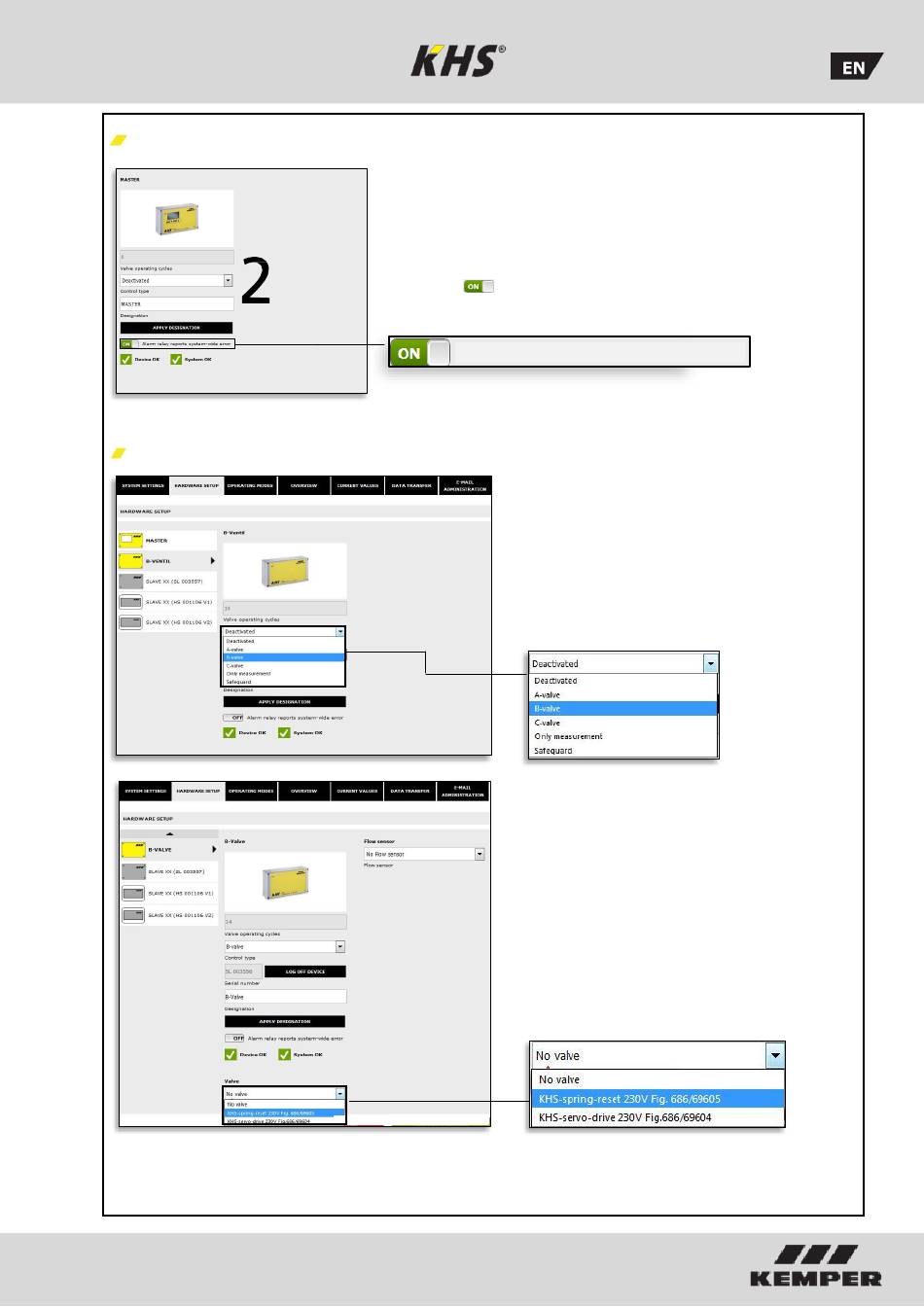

Input box
Adding devices
Configuration (B valve)
K410068602008-00 / 09.2018
If a KHS Mini Control System is selected in the selection
interface, the input box appears on the right-hand side.
Use this box to allocate the related actuators and sensors
to the KHS Mini-Control System.
If an error occurs in the Control System, it can be
reported across the entire system. To do this, set the
button to . The remaining input options of the input
box are explained in the following.
Alarm relay reports system-wide error
Select control type
Choose
types that can be used by the
selected
System from a drop-down list.
The KHS Mini Control System -
MASTER 2.0 - should control a B
valve in this sample project.
Select valve
The possible valves are selected from
a drop-down list. In this sample
project, the KHS Mini Control System
-MASTER 2.0- should actuate a KHS
VAV maximum flow isolating ball valve
with spring reset and servo drive.
