2.3.5

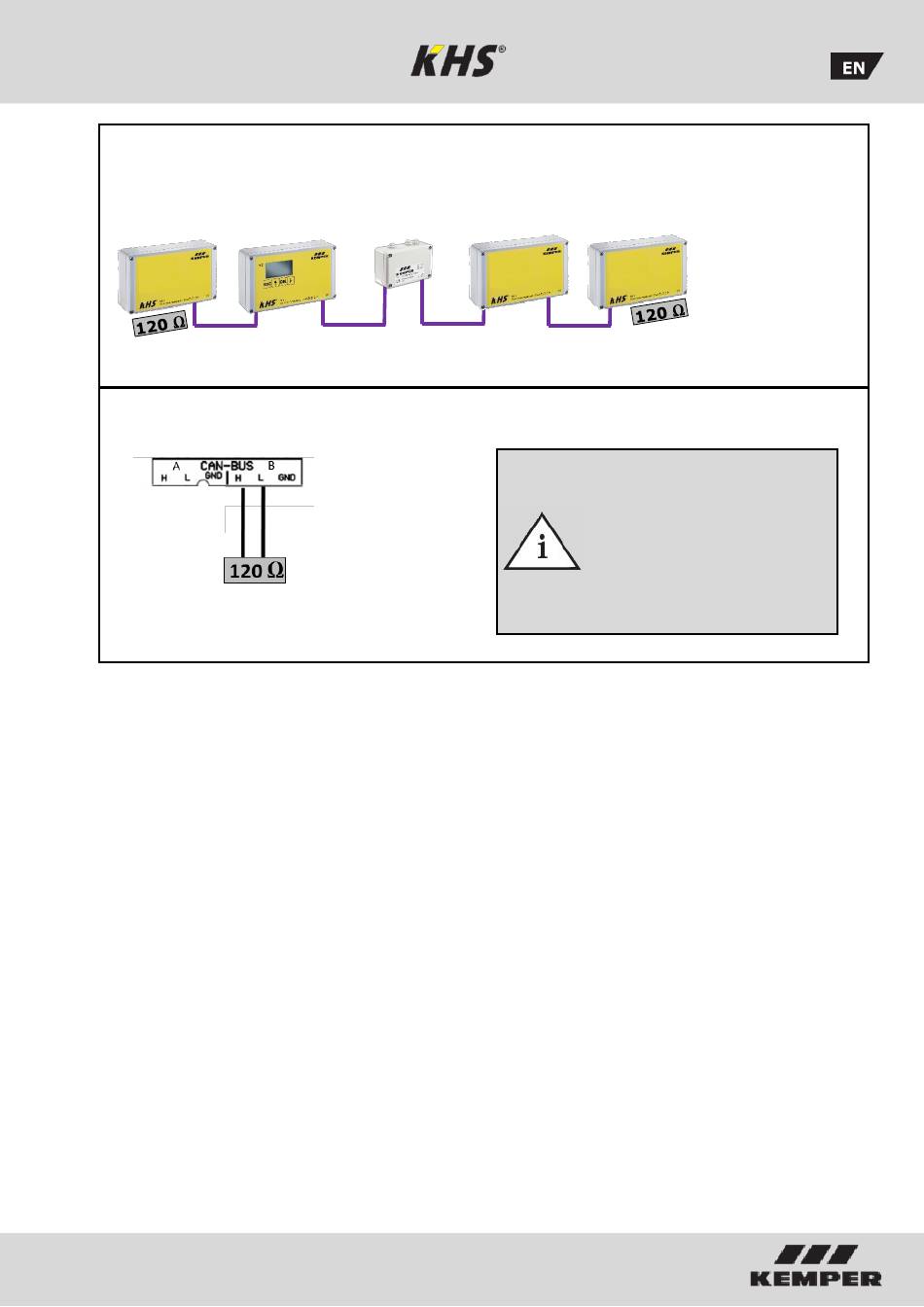

Terminal resistor
The 120 Ω terminal resistor may only be installed in the last control component of a CAN bus
cable. The MASTER does not require a terminal resistor.
2.3.6
Connection of terminal resistor
K410068602008-00 / 09.2018
All KHS Mini Controls
-SLAVE- are supplied with a
120 Ω terminal resistor.
For
non-terminal
controls, the resistor must
be removed!
13
SLAVE
