Kemper KHS Mini Control System MASTER 2.0 Installation And Operating Instructions Manual page 10

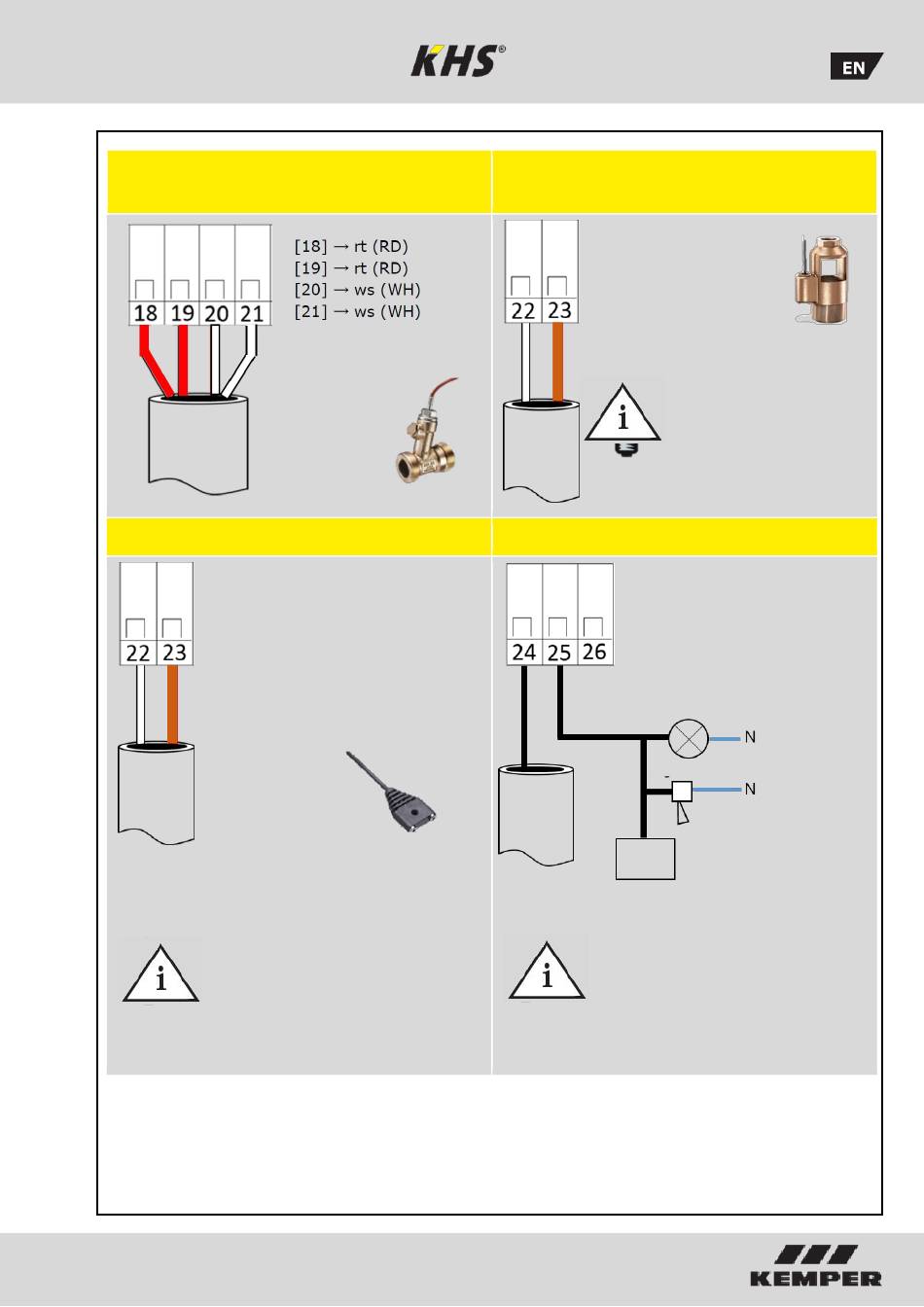

KHS temperature measurement valve
(Fig. 628)
rt
ws
Water sensor for leaks (Fig. 620 00)
wh bn
In the as-delivered state, a cable
bridge
Terminals 22 and 23. This must
be removed before connecting the
KHS water sensor.
K410068602008-00 / 09.2018
[22] → wh (WH)
[23] → bn (BN)
is plugged between
KHS Free Drain (Fig. 688 00)
[22] → ws (WH)
[23] → br (BN)
ws br
Potential-free alarm relay
[24] → 230V (2A) / 24V
[25] → OUT (fault)
[26] → OUT (operation)
Warning lamp
Signal horn
230V (2A)
24V
BMS
Monitoring example: Faults and
mains voltage failures are reported
with
network
warning horn or to the BMS.
10
In the as-delivered state, a
cable bridge is plugged
between Terminals 22 and
23. This must be removed
before connecting the KHS
Free Drain.
external voltage to
warning lamp,
the
the
