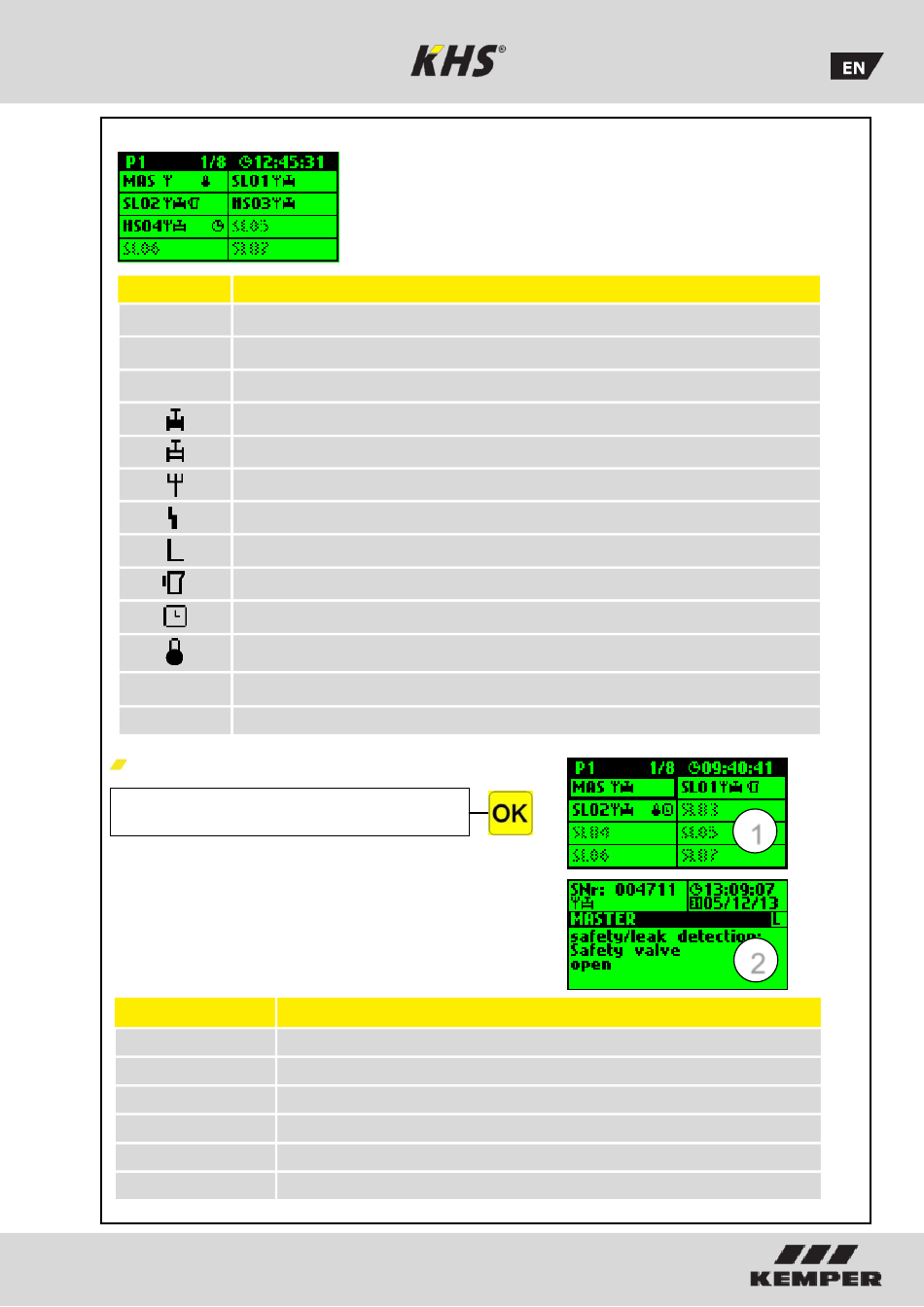

3.1.1 General plan
Symbol Meaning
Overview -Master-
MAS
Overview -SLAVE- with the number XX
SLXX
Overview KHS HS2 with the number XX
HSXX
KHS VAV maximum flow isolating ball valve with servo drive created
KHS VAV maximum flow isolating ball valve opened
CAN bus of the Control System active
Fault detected
Leakage monitoring of Control System active
Flow sensor created (symbol flashes: flow control is active)
Symbol flashes: Time control activated
Temperature sensor created (symbol flashes: temperature control is
active)
Activated program for the program switchover
P1 / P2
Sheet 1 of 8
1/8
Detailed overview
1x „OK" Selects control (frame*)
2x "OK" Changes into detailed overview
*: A frame appears around the entry of the first
controller on the selected sheet (see 1). Pressing the
OK key once more opens the "Detailed overview" (see
2) of the selected control. Alternatively, press the ↑ or
↓ key to select another controller. The following table
describes the possible content of the detailed views.
Symbol
Safety device
Temperature
Flow
Volume
Flushing duration
SNo:
K410068602008-00 / 09.2018
The following illustrations explain the symbols of the "General
plan" menu interface of the KHS Mini Control System -MASTER
2.0-.
Meaning
Safety valve closed or open
Current value of the connected temperature sensor
Current value of the connected volume flow sensor
Volume of the last or current water exchange
Volume of the forthcoming or current water exchange
Serial number of the selected Control System
