3 Product
Reglo ICC is a peristaltic pump with independently controllable channels. The intended use for this pump is precise
fluid dispensing at low flow rates up to 43ml/min for fluid delivery applications.
Contents of the package
•
Reglo ICC Pump (type as ordered)
•
1 power supply
•
3 cassettes
•
1 power cord with country specific plug
•
Operating manual
Please check the package and its contents for transport damage. If you find any signs of damage, please contact
your local ISMATEC representative immediately.
®

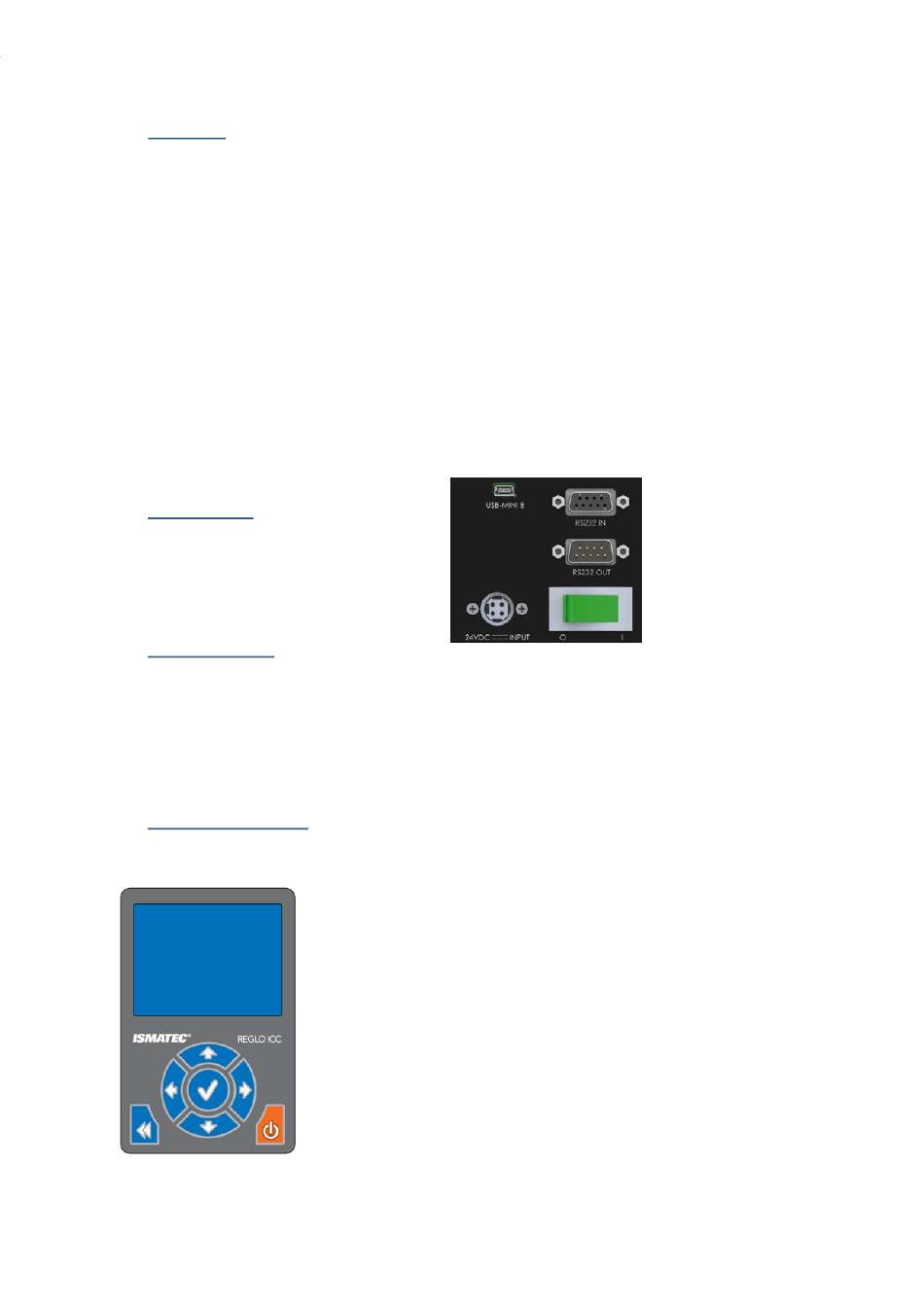

4 Rear Panel
1. 24VDC power Inlet plug
2. On / Off Switch, circuit breaker
3. RS‐232 In, DB9‐female
4. RS‐232 Out, DB9‐male
5. USB 2.0, Mini‐B
5 Main Voltage
Use only the supplied power supply and cord for your Reglo ICC pump. DO NOT use any other substitutes or
damage may occur! The power supply is designed to provide DC voltage for your Reglo ICC pump. It has built in
circuit over current protection in the event the pump is overloaded or a malfunction occurs. The power supply is
connected to the pump by a 4‐pin power DIN snap and lock plug. Appliance coupler of the power supply is used to
disconnect the device from the mains supply.
‐ Voltage 100‐264VAC
‐ 50 / 60 Hz
6 Pump Operation
6.1 Key Pad and Screen
4.
2.
5.
1.
1. Run / Stop Button
a. Starts and stops the pump
b. Interrupts and resumes a dispensing cycle
5.
2. Reset Button
a. Escape out of editing a parameter without changing
b. Resets dispensing cycle when pump is paused
3. Directional Arrows
a. Used to navigate screen and highlight selections
3.
b. Up, down, left, right
4. OK / Enter Button
a. Press to edit parameter
1.
b. Saves edit to parameter once complete
5. LCD Display
3.
4.
2.
4
