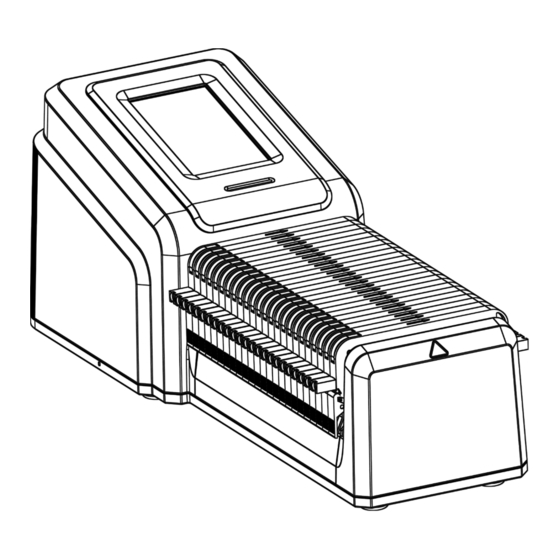

Ismatec MasterFlex IPC 45 RPM Operating Manual

Multichannel peristaltic pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

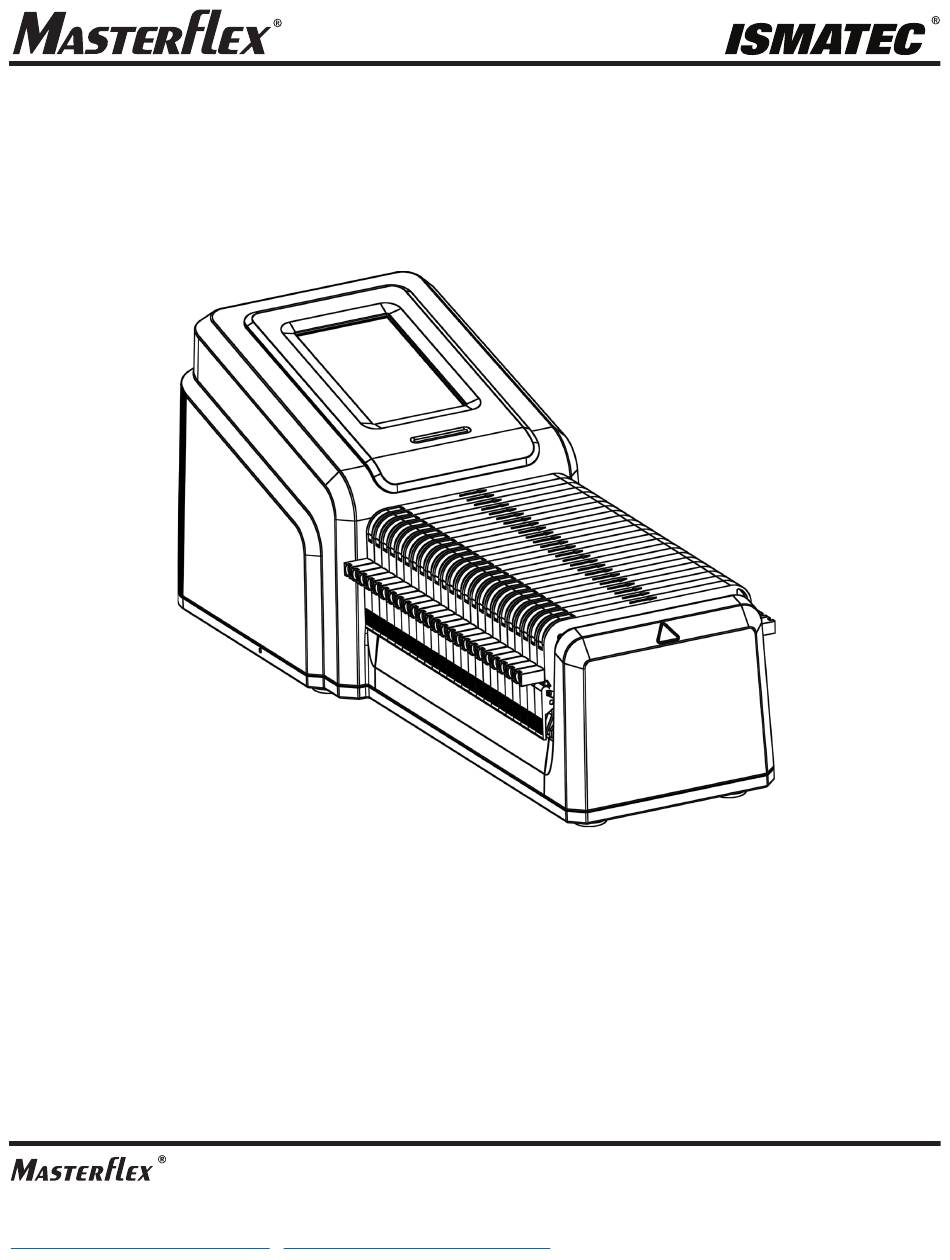

OPERATING MANUAL
Masterflex
Ismatec
®
Multichannel Peristaltic
Pumps
MODEL NUMBERS
IPC 45 RPM
MFLX78006-22
MFLX78006-24
MFLX78006-26
MFLX78006-28
IPC 11.25 RPM
MFLX78006-42
MFLX78006-44
MFLX78006-46
MFLX78006-48
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-381-7050
www.avantorsciences.com/masterflex
®
•
masterflex.tech@avantorsciences.com
A-1299-5227
Edition 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MasterFlex IPC 45 RPM and is the answer not in the manual?

Questions and answers

Related Manuals for Ismatec MasterFlex IPC 45 RPM

Summary of Contents for Ismatec MasterFlex IPC 45 RPM

  • Page 1 OPERATING MANUAL Masterflex Ismatec ® ® Multichannel Peristaltic Pumps MODEL NUMBERS IPC 45 RPM MFLX78006-22 MFLX78006-24 MFLX78006-26 MFLX78006-28 IPC 11.25 RPM MFLX78006-42 MFLX78006-44 MFLX78006-46 MFLX78006-48 A-1299-5227 Edition 01 (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-381-7050 www.avantorsciences.com/masterflex...
  • Page 2 © 2023 Masterflex LLC. All rights reserved. Masterflex® and Ismatec® are a registered trademarks of Avantor, Inc. Trademarks bearing the symbol in this publication are registered in the US and in other countries. ® PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS Masterflex...

  • Page 3: Table Of Contents

    2-14 Barb Adapter Fitting 2-15 Tubing Part Numbers 2-15 Tube Splicing 2-18 Tube Loading 2-18 Priming the Pump 2-21 Tube Calibration 2-22 Tube Calibration Screen 2-22 SECTION 3: LOCAL OPERATION Mode Selection Screen Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 4 4-26 Masterflex EtherNet/IP 4-27 Serial Communications Mode 4-30 Serial Communication Ports 4-30 SerialComms Run Screen 4-30 Serial Communications Setup 4-31 Serial Communications Commands 4-31 Electrical Connections 4-34 DB-25 Connection 4-34 DB-9 Connection 4-35 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 5 SECTION 5: SERVICE & MAINTENANCE Firmware Updates Restore Factory Settings Cleaning the Pump Accessories Pump Accessories Troubleshooting Error Definitions Specifications Technical Assistance Product Return Warranty Disposal Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 6: Section 1: Introduction

    SECTION 1: INTRODUCTION SAFE OPERATION The IPC Masterflex® Ismatec® Multichannel Peristaltic Pumps are designed for fluid pumping and dispensing applications in laboratory and process environments. Ensure that the pump is operated only in the manner specified in this operating manual and that Good Laboratory Practice (GLP) and safe work practices are followed.

  • Page 7: About The Ipc Pumps

    Section 1: Introduction ABOUT THE IPC PUMPS The Masterflex® Ismatec® Multichannel Peristaltic Pumps offer precise flow control and highly accurate fluid dispensing ideal for laboratory, process, and field use. All pumps include a highly accurate, maintenance-free motor and an easy to navigate touchscreen that makes setup and operation easier than ever. The IPC pumps feature Ethernet, Wi-Fi, DB-25, DB-9, and USB-A connections for remote control and monitoring through the MasterflexLive™...

  • Page 8: Available Models

    Click'n'go Pump IPC 11.25 RPM 16CH MFLX78006-46 0.11 – 11.25 Click’n’go Click'n'go Pump IPC 11.25 RPM 24CH MFLX78006-48 0.11 – 11.25 Click’n’go Click'n'go Pump NOTE: For additional cassette options see "Accessories" on page 5-2. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 9: Section 2: Basic Setup & Settings

    SECTION 2: BASIC SETUP & SETTINGS FRONT & REAR OF THE PUMP Touchscreen Power Indicator Light Pump Head Click'n'go Cassettes Cassette Release Levers DB-9 Port DB-25 Port Power Switch Power Cable Locking Barrel Connector Ethernet Port USB-A Port Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 10: Touchscreen Icons

    Notification Alert Confirm High Priority Notification Alert Continuous Mode Medium Priority Notification Alert Counterclockwise Low Priority Delete Pause Delete User Prime Display Brightness Program Edit Record Volume EtherNet/IP Connected Reset EtherNet/IP Lost Connection Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 11: Before Starting The Pump

    • Ensure the pump is mounted on a flat surface. • Ensure adequate air flow around the pump and ensure that the ambient air temperature does not exceed 104° F (40° C). Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 12: Switching On The Pump

    To enable (default) or disable the screen saver see "Screen Saver" on page 2-7. NOTE: The power indicator light will remain on as long as power is connected to the pump. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 13: Settings

    5. Tap MM to select minutes and enter the desired time using the onscreen keypad. 6. If using 12-HOUR time, tap AM/PM to select either AM or PM. 7. Tap CONFIRM to save or CANCEL to discard changes. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 14: Setting The Date

    Select the desired current or voltage operating range from the available list. c. Tap CONFIRM to save or CANCEL to discard changes. The Analog Output Screen will be displayed. 5. Tap CONFIRM Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 15: Device Information

    Settings Menu Screen pages and tap DEVICE NAME. The Device Name Screen will be displayed. 3. Enter the desired pump name using the onscreen keypad (up to 8 characters). 4. Tap SAVE to save name or CANCEL to discard changes. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 16: Wi-Fi Settings

    Settings Screen will be displayed. 3. Tap DHCP to automatically configure IP settings or STATIC to manually edit settings using the onscreen keypad. 4. Tap CONFIRM to save or CANCEL to discard changes. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 17: User Management

    4. Tap ACCESS LEVELS. 5. Tap USER or SUPERUSER. 6. Select the desired settings menu items to be included in the user level. 7. Tap CONFIRM to save or CANCEL to discard any changes. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 18 (located in the bottom right corner of the screen). 3. Tap LOGOUT on the popup window to confirm. NOTE: After logging out, you will be prompted to log in again as a new user. 2-10 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 19: Auto Start

    Settings Menu Screen pages and tap EtherNet/IP. The EtherNet/IP Screen will be displayed. 3. Tap the STOP PUMP WHEN EtherNet/IP IS DISCONNECTED toggle to select either ON or OFF. 4. Tap CONFIRM to save or CANCEL to discard any changes. 2-11 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 20 Settings Menu Screen pages and tap TUBE LIFE TIMER. The Tube Life Timer Screen will be displayed. 3. Tap RESET and then tap CONFIRM in the popup. 4. Tap CONFIRM to save. 2-12 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 21: Tubing

    Flared ends are available for select materials, which aid in making connections (NOTE: Flared ends require special connections for correct operation). IPC 45 RPM IPC 11.25 RPM Min Flow Rate Max Flow Rate Min Flow Rate Max Flow Rate Color-Coded Stops Tube ID (mm) Ismatec Size mL/min mL/min mL/min mL/min ORANGE/BLACK 0.13 0.0016 0.16 0.00039...

  • Page 22: Tubing Material

    Versilon 2001 Clear −77 to 57°C - Best chemical resistance of any - Compatible with some organics ™ Tygon Formulation - Chemical transfer ® - Plasticizer-free 2-14 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 23: Barb Adapter Fitting

    Section 2: Basic Setup & Settings Barb Adapter Fitting Ismatec Straight Connectors Polypropylene Hose Barb Color-Coded Stops Tube ID (mm) Ismatec Size (Stainless Steel & PETG) 2/PK (10/pk) ORANGE/BLACK 0.13 MFLX34002-09 – ORANGE/RED 0.19 MFLX34002-10 – ORANGE/BLUE 0.25 MFLX34002-12 –...
  • Page 24 Section 2: Basic Setup & Settings Tubing Part Numbers Table (the table is continued on the following page) Ismatec Size Tube ID 0.13 0.19 0.25 0.38 0.51 0.64 0.76 0.89 1.02 1.14 Color Code Tubing Type QTY Catalog Number Tube ID Number...
  • Page 25 Section 2: Basic Setup & Settings Tubing Part Numbers Table (continued) Ismatec Size Tube ID 1.33 1.42 1.52 1.65 1.85 2.03 2.29 2.79 3.17 Color Code Tubing Type QTY Catalog Number Tube ID Number 2-STOP MFLX96449- – – – –...

  • Page 26: Tube Splicing

    See also "Accessories" on page 5-2. NOTE: • Reset the Tube Life Timer when changing tubes (see "Tube Life Timer" on page 2-12). • Check to confirm that the rollers are clean and free of defects. 2-18 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 27 Calibration" on page 2-22). • It is recommended that new tubing is recalibrated after 3-4 hours of operation to ensure accuracy is maintained (for further information see "Tube Calibration" on page 2-22). 2-19 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 28 For applications with a high differential pressure (1 bar / 15 psi), the use of a cassette with a pressure lever is recommended. NOTE: See "Accessories" on page 5-2 for information on available optional pressure lever cassettes. 2-20 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 29: Priming The Pump

    5. Navigate to the Continuous, Time or Volume Mode screens. 6. Press and hold PRIME until there are no bubbles visible in the tubing, or until consistent fluid is dispensed from the tube. Priming will stop when PRIME is released. 2-21 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 30: Tube Calibration

    3. Switch the pump on using the power switch located at the rear of the pump. NOTE: If User Management is enabled you will be prompted for a username and password (For further information see "User Management" on page 2-9). 2-22 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 31 Minimum and maximum flow rates will change after calibration due to a recalculation of the volume of fluid per pump revolution. • Steps 9–13 can be repeated as necessary to optimize the accuracy of the tubing calibration. 2-23 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 32: Section 3: Local Operation

    Log out the current pump user (see "User Management" on page 2-9). NOTE: Log out will only be displayed if User Management is enabled Settings Tap the desired mode or program to access individual mode or program screens. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 33: Continuous Mode

    I. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Tap UNLOCKED . The icon will change to LOCKED . To unlock the screen: Tap LOCKED then tap CONFIRM. The icon will change to UNLOCKED Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 34: Continuous Mode Operation

    . The pump will commence operation at the flow rate and direction shown. 8. Tap STOP when the pump operation is no longer required. NOTE: In Continuous Mode the pump will continue to operate at the displayed flow rate and direction until stopped. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 35: Saving Continuous Mode Settings As A New Program

    Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection Screen. • If there are more programs stored than will fit on one screen, tapping SCROLL will display additional pages. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 36: Time Mode

    I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user. J. CALIBRATE: Tap to access the Calibration Screen (for further information see "Tube Calibration" on page 2-22). Once calibration has been completed for the current tube size Calibration Complete will be displayed. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 37: Time Flow Options Screen

    Switch the pump on using the power switch located at the rear of the pump. NOTE: If User Management is enabled you will be prompted for a username and password (For further information see "User Management" on page 2-9). The touchscreen display will revert to the previously used operation mode. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 38 Screen. 9. Tap DIRECTION to select either clockwise or counterclockwise flow direction. 10. Tap START . The pump will now operate until the batch total is completed or until PAUSE STOP is tapped. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 39: Saving Time Mode Settings As A New Program

    Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection Screen. • If there are more programs stored than will fit on one screen, tapping SCROLL will display additional pages. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 40: Volume Mode

    I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user. J. CALIBRATE: Tap to access the Calibration Screen (for further information see "Tube Calibration" on page 2-22). Once calibration has been completed for the current tube size, Calibration Complete will be displayed. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 41: Volume Flow Options Screen

    Switch the pump on using the power switch located at the rear of the pump. NOTE: If User Management is enabled you will be prompted for a username and password (For further information see "User Management" on page 2-9). The touchscreen display will revert to the previously used operation mode. 3-10 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 42 Enter the desired degrees of reverse rotation using c. Tap CONFIRM to save or CANCEL to discard changes and return to the Volume Flow Options Screen. 8. Tap CONFIRM to return to the Volume Mode Run Screen. 3-11 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 43: Saving Volume Mode Settings As A New Program

    For optimal accuracy and precision, choose a tubing inner diameter (ID) for a dispense volume of at least 8 revolutions (64 pillows), as shown in the table on the following page. 3-12 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 44 2.55 2545.5 1.85 0.391 0.0489 48.86 3.13 3127.3 2.03 0.473 0.0591 59.09 3.78 3781.8 2.29 0.573 0.0716 71.59 4.58 4581.8 2.79 0.809 0.1011 101.14 6.47 6472.7 3.17 1.000 0.1250 125.00 8.00 8000.0 3-13 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 45: Anti-Drip

    . The pump will now begin operation while recording the fluid volume. 6. If required, adjustments can be made to flow rate during operation. To make adjustments: a. Tap STOP and then repeat step 4 above. 3-14 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 46 Volume Flow Options Screen. If saved, the recorded dispense volume will now be displayed under VOLUME. 9. Tap CONFIRM . The Volume Mode Run Screen will be displayed. 3-15 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 47: Custom Program Modes

    Tap HR, MIN, SEC or TENTHS and enter the desired time using the onscreen keypad. b. Tap CONFIRM to save or CANCEL to discard changes and return to the Time New Pro- gram Screen. 3-16 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 48: Adding A New Program: Volume Mode

    Enter the desired volume using the onscreen keypad. NOTE: If the volume of fluid is unknown the pump can record fluid dispense volumes (for further information see "Volume Record" on page 3-14). 3-17 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 49 Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection Screen. • If there are more programs stored than will fit on one screen, tapping SCROLL will display additional pages. 3-18 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 50: Adding A New Program: Analog Input Mode

    Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection Screen. • If there are more programs stored than will fit on one screen, tapping SCROLL will display additional pages. 3-19 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 51: Using Program Modes

    NOTE: Once the individual mode settings have been edited and saved the Program Edit Screen will be displayed. 3. Tap CONFIRM to save or DELETE to cancel and return to the previous screen. 3-20 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 52: Deleting A Program

    The Program Edit Screen will be displayed. 2. Tap DELETE PROGRAM 3. Tap DELETE to delete the program and return to the Mode Selection Screen or CANCEL to return to the previous screen. 3-21 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 53: Section 4: Remote Operation

    Tap to access the Tube Life Timer Screen (for further information see "Tube Life Timer" on page 2-12). E. START/STOP: During operation, the display will change from START to STOP F. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise flow direction. 4-22 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 54: Analog Input Operation

    NOTE: If locked, the screen will need to be unlocked before the pump operation can be stopped. • www.avantorsciences.com/masterflex for further information on using analog input remote control and monitoring. 4-23 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 55: Saving Analog Input Mode Settings As A New Program

    The IPC pumps can be monitored through the MasterflexLive™ website using an Ethernet or Wi-Fi connection. MasterflexLive™ can be accessed from any suitable digital device connected to the internet, such as a laptop, tablet, smartphone or desktop computer. See www.avantorsciences.com/emdocs/masterflexlive- user-guide.pdf www.avantorsciences.com/masterflex for further information. 4-24 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 56: Ethernet/Ip Mode

    E. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Tap UNLOCKED . The icon will change to LOCKED . To unlock the screen: Tap LOCKED then tap CONFIRM. The icon will change to UNLOCKED 4-25 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 57: Ethernet/Ip Setup

    The bit may need to be toggled twice as it only changes state from Local/Remote on a 1 to 0 transition. • Once enabled, the EtherNet/IP Run Screen will be displayed on the touchscreen. 4-26 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 58: Masterflex Ethernet/Ip

    50 – 51 16-BIT INT Remaining Dispense Off Time Days BYTE Remaining Dispense Off Time Hours BYTE Remaining Dispense Off Time Minutes BYTE Remaining Dispense Off Time Seconds BYTE Remaining Dispense Off Time Tenths 4-27 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 59 Index Tube Size Index Tube Size 0.13 1.14 0.19 1.22 0.25 1.33 0.38 1.42 0.44 1.52 0.51 1.65 0.57 1.75 0.64 1.85 0.76 2.03 0.89 2.29 0.95 2.54 1.02 2.79 1.09 3.17 4-28 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 60 Remaining Dispense Off Seconds 12 – 15 FLOAT Batch Count Current 16 – 19 FLOAT Batch Count Total 20 – 23 FLOAT Minimum Flow Rate 24 – 27 32-BIT INT Current Flow Rate 4-29 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 61: Serial Communications Mode

    C. TUBE LIFE TIMER: If enabled, the Tube Life Timer will display a countdown timer that tracks the operational life of the pump tubes. Tap to access the Tube Life Timer Screen (for further information see "Tube Life Timer" on page 2-12). 4-30 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 62: Serial Communications Setup

    Incorrect serial command strings will be returned with a hash # • If the pump is not in Serial Communications mode then the pump will respond with tilde ~ • {value} + 13 10 for get command responses 4-31 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 63 => 300.50 range, enter R followed by 3 or more digits that represent the RPM with two decimal points, for example, 10000 is 100.00 Get pump speed in RPM 13 1o 4000.12 4-32 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 64 13 10 4.983 rev Get current cumulative volume 13 10 4.983 ml Reset Cumulative Volume IPC Pumps Flow Units Index Correlation Table Index Flow Unit mL/min L/day L/min Oz/min Oz/hr uL/min uL/hr 4-33 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 65: Electrical Connections

    Wiring Scheme: Start/Stop Tach Output CW/CCW Prime Output (0–20 mA, 4–20 mA) Motor Running (N.O.) Input (0–20 mA, 4–20 mA) Open Head Sensor (N.O.) Input (0–10 V) General Alarm Output (0–10 V) 4-34 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 66 Section 4: Remote Operation DB-9 Connection Contact Arrangements: Pin No. Description Not Used Transmitting: Tx Receiving: Rx Not Used Ground Not Used Not Used Not Used Not Used 4-35 Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 67: Section 5: Service & Maintenance

    The Settings Menu Screen will be displayed. 2. SCROLL through the Settings Menu Screen pages to locate DEVICE INFORMATION. 3. Tap DEVICE INFORMATION. 4. Tap FACTORY RESET and follow the onscreen prompts. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 68: Cleaning The Pump

    Any damage caused by improper cleaning will be the sole responsibility of the customer. ACCESSORIES Pump Accessories To purchase accessories or for further information visit www.avantorsciences.com/masterflex. The following accessories are available for Masterflex® Ismatec® Multichannel Peristaltic Pumps: Description Part Number USB Serial Cable USB-A TO USB-A...

  • Page 69: Troubleshooting

    - Wearing thick latex - Remove gloves before using the touchscreen. NOTE: Consult your sive gloves can make the company or laboratory safety guidelines before removing any personal screen less responsive protective equipment Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 70: Error Definitions

    Then switch the pump off and on again. If the error persists, make a note of the error code and then contact Masterflex/Avantor or your authorized representative for support. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 71: Specifications

    (0-20 mA @ 249 Ω; ± 50 V common mode range) Voltage input (0-10 VDC @ 10 kΩ; ± 50 V common mode range) RJ45 Ethernet USB, Type A (5 VDC @ 0.5 A) Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 72 303/304 stainless steel rollers assembly, POM tube cassettes COMPLIANCE All Models UL 61010-1 US/CAN For CE mark: EN61010-1, Low Voltage Directive ETSI EN 301 489-1, EMC Directive EN50581, RoHS Directive Pump Head EN809, Machinery Directive Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...

  • Page 73: Technical Assistance

    Once the useful life of the product has ended, please ensure proper disposal according to local laws. Plastic and electronic components should be disposed of at a recycling facility. Please refer to local regulations regarding proper disposal. Masterflex Ismatec Multichannel Peristaltic Pumps ® ®...
  • Page 74 US & Canada only *EN809 manufactured by: Toll Free 1-800-MASTERFLEX | 1-800-637-3739 Masterflex LLC 28W092 Commercial Avenue, Barrington, IL 60010 Outside US & Canada www.avantorsciences.com/masterflex 1-847-549-7600 | 1-847-381-7050...
