pumping or when the operation is paused. Dispensing program can be reset during operation by
pressing the Reset button after pumping is paused.

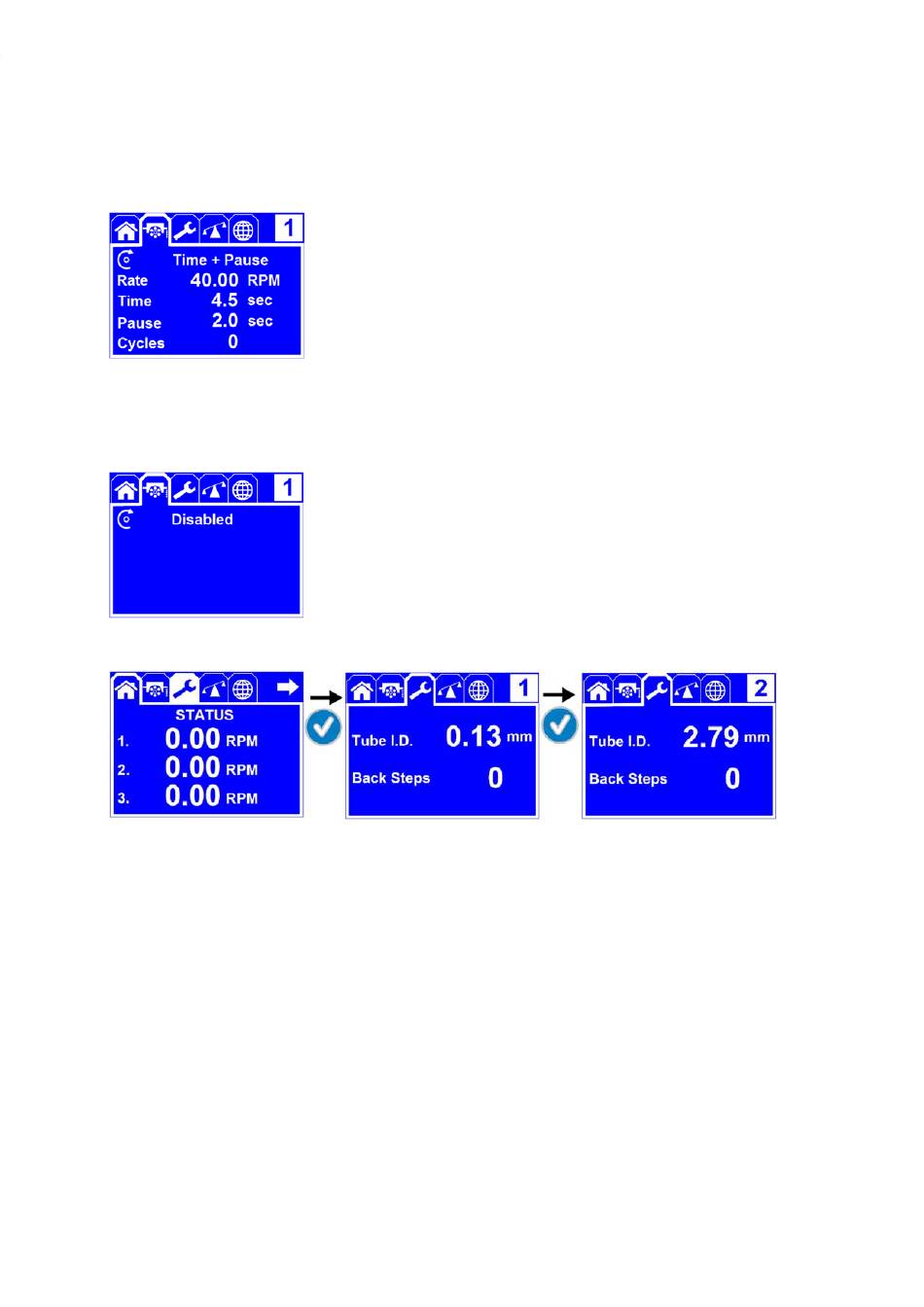

6.4.2.6 Time with Pause Mode
sec, min, and hours. Selectable pause time units are sec, min, and hours. Only flow rate can be changed
during pumping or when the operation is paused. Dispensing program can be reset during operation by
pressing the Reset button after pumping is paused.
6.4.2.7 Disabled Mode
6.4.3 SETUP Menu
In the SETUP Menu the tubing ID is set by selecting the size of tubing being used in the highlighted
channel selected in the upper right hand corner. The tubing ID is selected from the drop down menu.
The number of roller backsteps for drip free dispensing can also be set between 0‐100 (0 = Default
Value).
Time with Pause Mode allows the user to dispense for a set time
duration over multiple cycles. Adjustable parameters are rotation
direction, flow rate, flow rate units, time, time units, pause time between
cycles, pause time unit, and number of cycles. Rotation direction can be
selected as CW or CCW. Flow rate can be changed in the range specified
by the selected unit and/or tubing ID (see Section 6.4.3). Selectable flow
rate units are RPM, µl/min, ml/min and L/min. Selectable time units are
Disabled Mode disables the selected channel for pumping. The channels
that are not anticipated to pump any fluid should be set to this mode.
