6.2 Icons
1.
3.
4.
5.
2.
6.3 Changing Parameters
Changing parameters is done by moving the cursor around the LCD screen using the four
directional arrows. The arrows are used to navigate the menus and change numeric
values and pumping modes. Using the arrows, the cursor can be moved to any field to
select or edit.
Once the cursor is in the field that you would like to select or edit, press the OK/Enter button.
When highlighting numeric values, the cursor will highlight the entire value. Pressing
OK/Enter will then allow the cursor to highlight only one digit for editing. Using the
directional arrows up or down will increase or decrease the value and left and right will move the cursor
to the next digit to be edited. Once the value is correct, press OK/Enter and the cursor will then highlight
the entire value exiting the edit mode. When highlighting pumping modes, tubing ID, and language, the
OK/Enter button will allow the parameter to be changed by toggling through a list using the directional
arrows. Once the selection has been made, pressing the OK/Enter button will save the selection and
exit the editing mode.
The Run/Stop button is used to start or stop all the channels. When the pump is idle,
pressing the Run/Stop button will start pumping to the settings for each channel. When the
pump is running, pressing the Run/Stop button will stop all channels. If a timed or repeating
pumping mode is being used, pressing the Run/Stop button will pause the program. Pressing the
Run/Stop button again will resume the program.
The Reset button is used to cancel editing or reset pumping modes. When a field has been
selected for editing, pressing the Reset button will exit the editing mode and restore the
original value. Also, when the pump is paused, pressing the Reset button will reset all the
pumping modes back to their start point (number of cycles, time, volumes, etc.).
6.

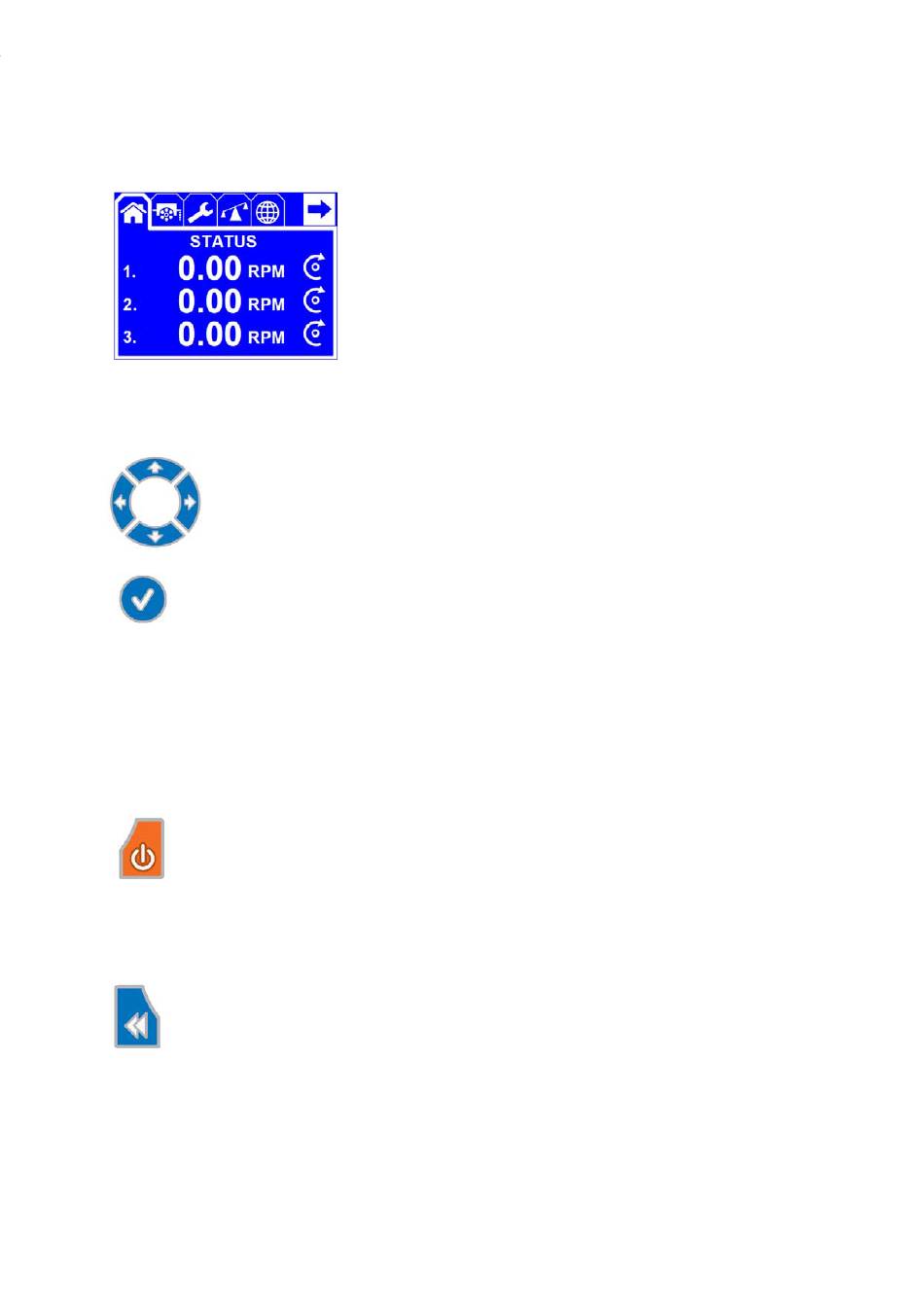

1. STATUS Menu
7.
2. PUMPING Menu
3. SETUP Menu
4. CALIBRATION Menu
5. GLOBAL SETTINGS Menu
6. Channel Number / Next Screen
7. Channel Rotation Direction
